Rear Seat Back Cushion Latch Cable Replacement

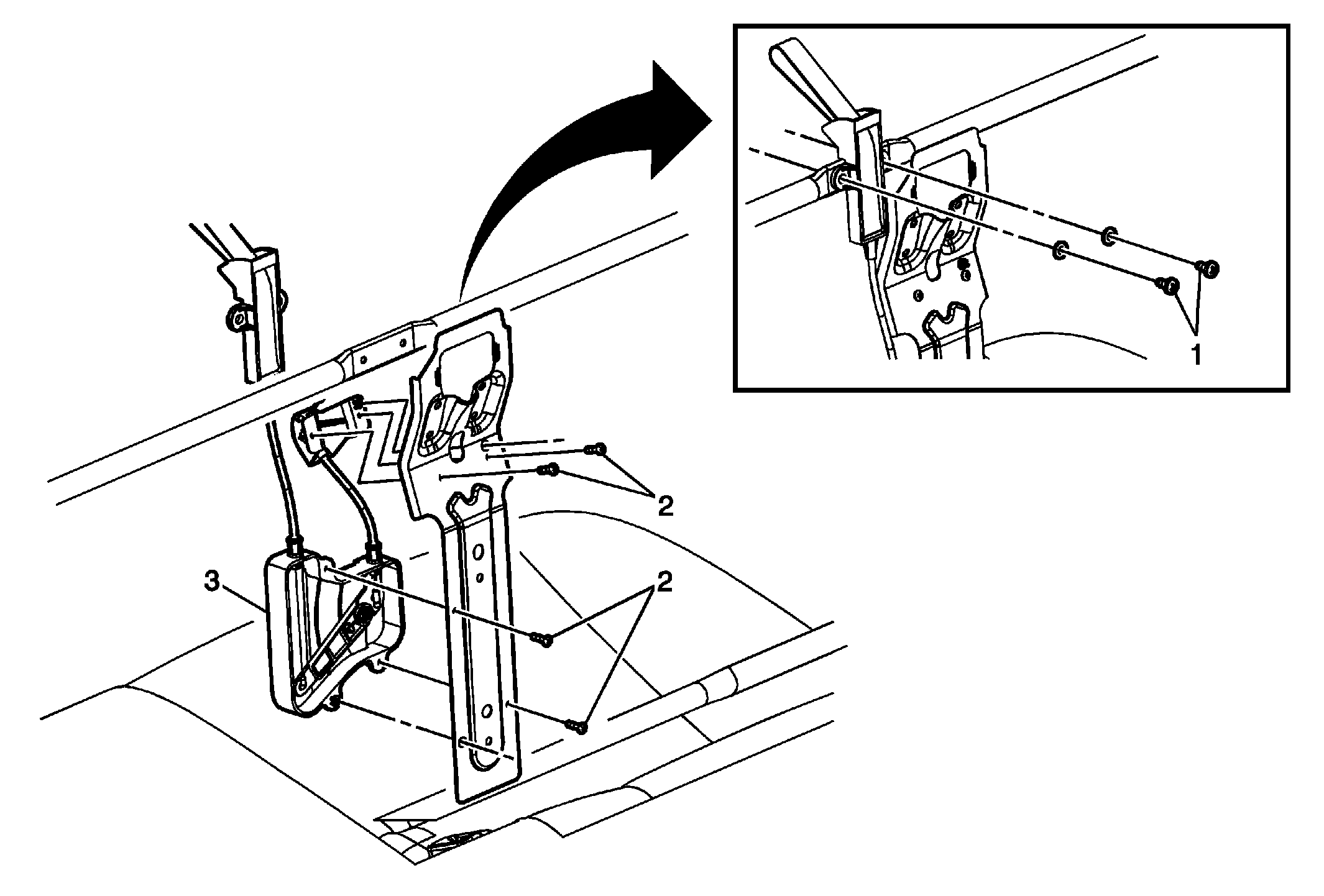

Fig 1: Rear Seat Back Cushion Latch Cable And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion pad. Refer to Rear Seat Back Cushion Pad Replacement . Remove the rear seat back cushion opening panel. Refer to Rear Seat Back Cushion Panel Replacement .
1	Rear Seat Back Cushion Latch Cable Strap Retainer (Qty: 2) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 10 N.m (88 lb in)
2	Rear Seat Back Cushion Latch Cable Retainer (Qty: 4) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 3 N.m (26 lb in)
3	Rear Seat Back Cushion Latch Cable Assembly Procedure Disconnect the cable from the latch actuator.
