Rear Seat Back Cushion Panel Replacement

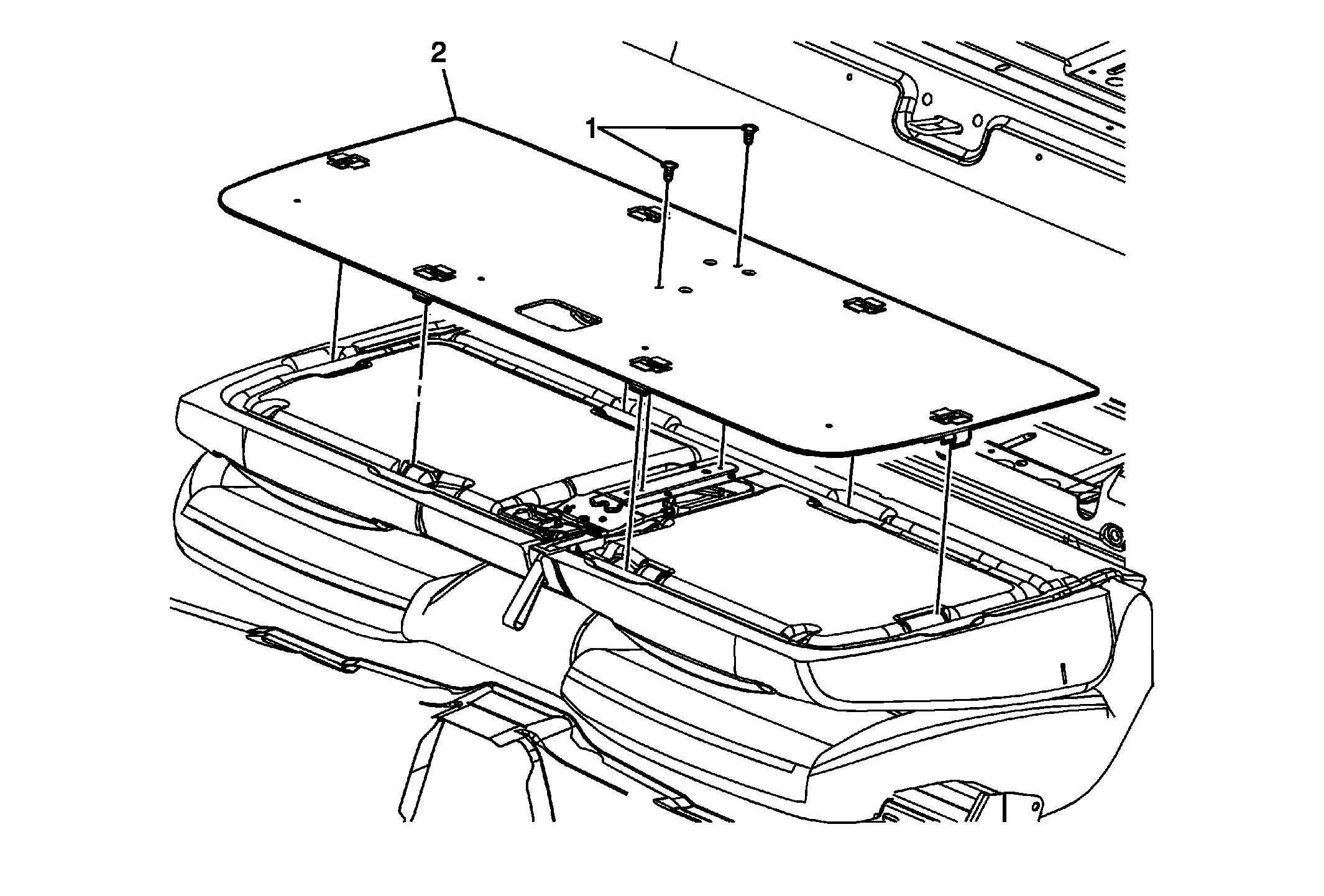

Fig 1: Rear Seat Back Cushion Panel And Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion pad. Refer to Rear Seat Back Cushion Pad Replacement .
1	Rear Seat Back Cushion Panel Retainer (Qty: 2) TIP: Use a flat-bladed tool for retainer removal.
2	Rear Seat Back Cushion Panel Procedure Release the seat back panel integral retainers from the seat back frame. TIP: Lay the seat down before trying to remove the seat back cushion panel.
