Tail Lamp Replacement - Inboard

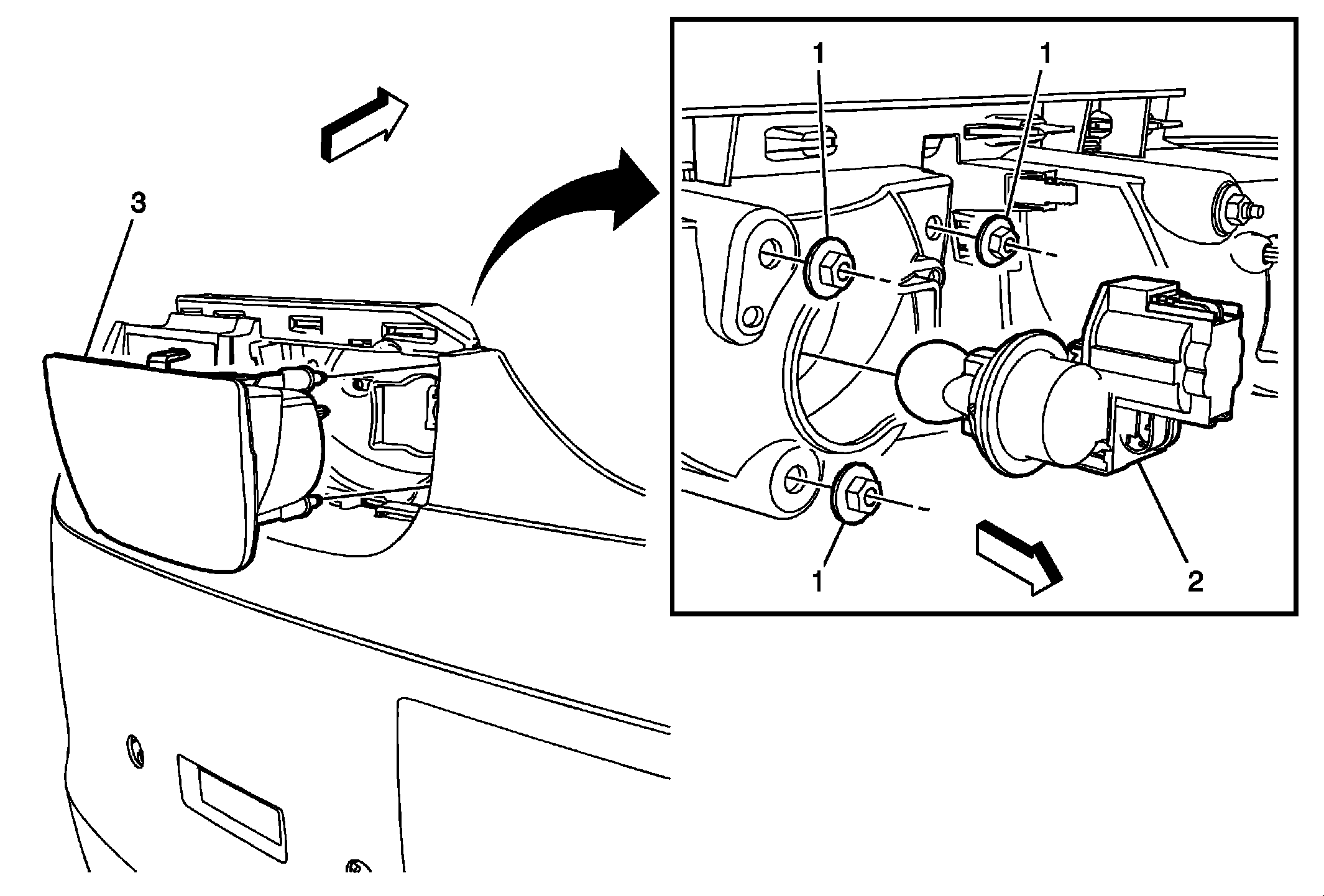

Fig 1: Tail Lamp & Nuts - Inboard

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the tail lamp filler closeout panel. Refer to Tail Lamp Closeout Filler Replacement . Remove the tail lamp bezel. Refer to Tail Lamp Bezel Replacement . Disconnect the bulb socket from the tail lamp. Remove the three tail lamp nuts. Release the three locating tabs securing the tail lamp to the rear bumper fascia pocket. Push the tail lamp assembly outward from the rear bumper fascia.
1	Tail Lamp Inboard Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Tail Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning .
3	Tail Lamp Assembly Inboard
