Tail Lamp Bezel Replacement

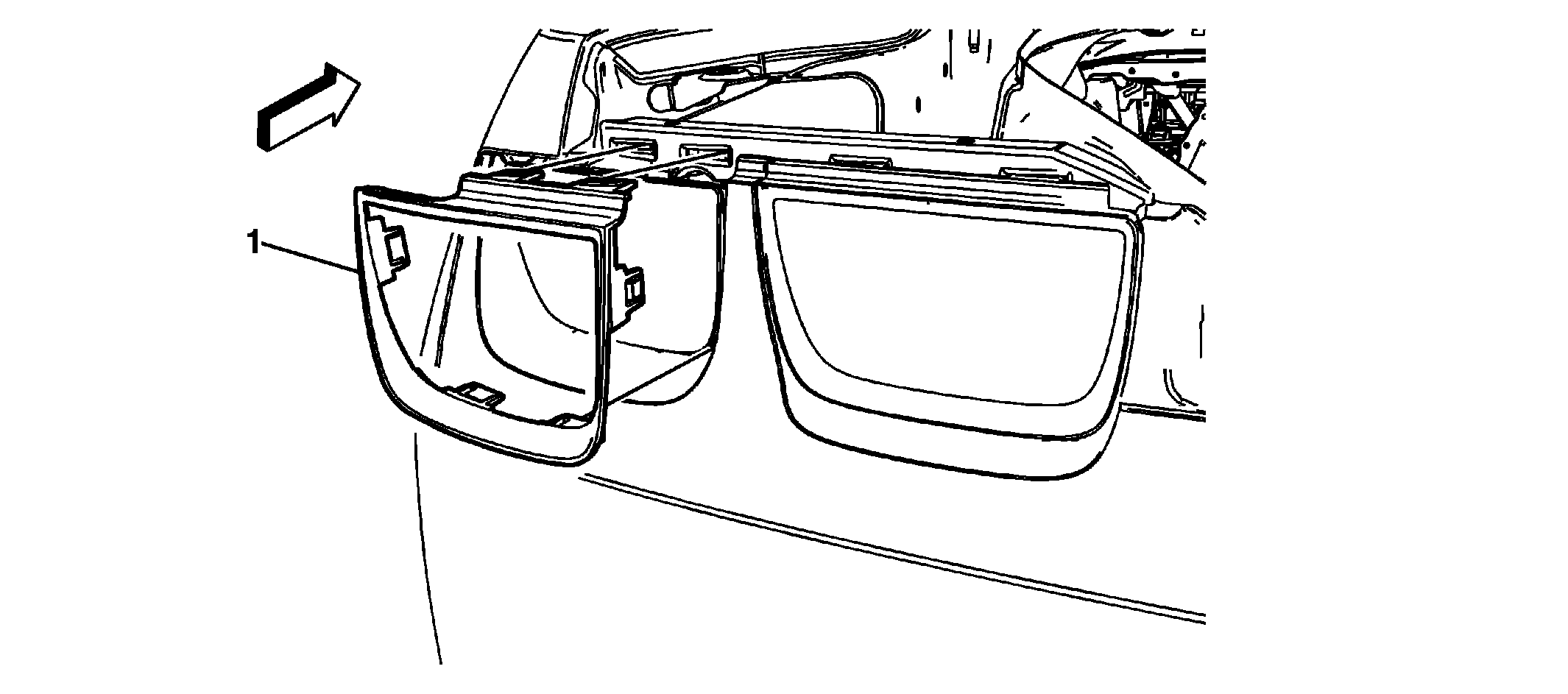

Fig 1: Tail Lamp Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the rear compartment lid. Remove the tail lamp closeout filler panel. Refer to Tail Lamp Closeout Filler Replacement .
1	Tail Lamp Bezel Procedure Use a thin flat-bladed tool, release the six tabs securing the bezel to the rear bumper fascia and push outward in order to remove.

Callout

Component Name

Preliminary Procedures

Open and support the rear compartment lid.
Remove the tail lamp closeout filler panel. Refer to Tail Lamp Closeout Filler Replacement .

Tail Lamp Bezel
Procedure
Use a thin flat-bladed tool, release the six tabs securing the bezel to the rear bumper fascia and push outward in order to remove.
