Tail Lamp Closeout Filler Replacement

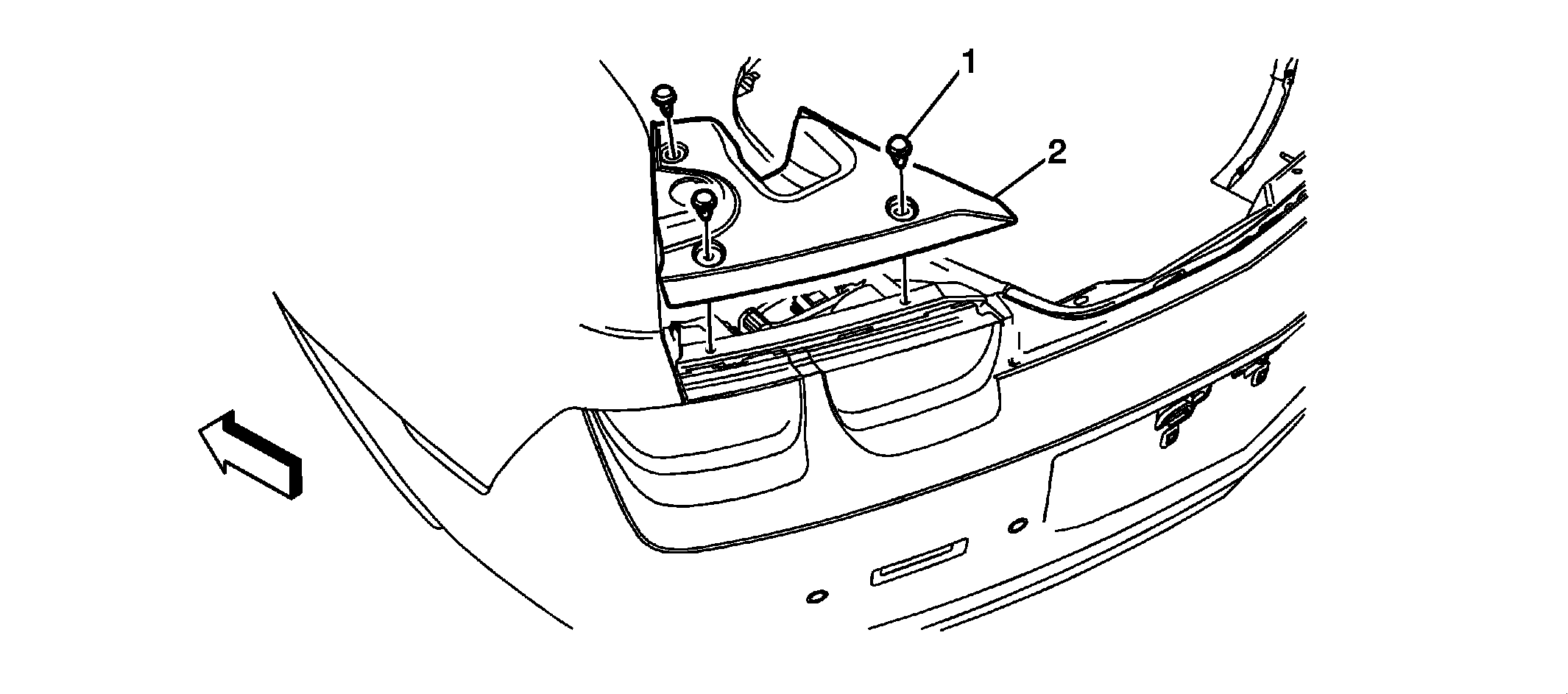

Fig 1: Tail Lamp Filler Closeout Panel & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the rear compartment lid.
1	Tail Lamp Closeout Filler Panel Retainer (Qty: 3) Procedures Use a small flat-bladed tool in order to release the retainer top cap. Lift the bottom half of the retainer from the tail lamp closeout filler panel hole. Remove the tail lamp closeout filler panel from the body panel.
2	Tail Lamp Filler Closeout Panel

Callout

Component Name

Preliminary Procedure
Open and support the rear compartment lid.

Tail Lamp Closeout Filler Panel Retainer (Qty: 3)

Procedures

Use a small flat-bladed tool in order to release the retainer top cap.
Lift the bottom half of the retainer from the tail lamp closeout filler panel hole.
Remove the tail lamp closeout filler panel from the body panel.

Tail Lamp Filler Closeout Panel
