High Mount Stop Lamp Replacement (ZL1)

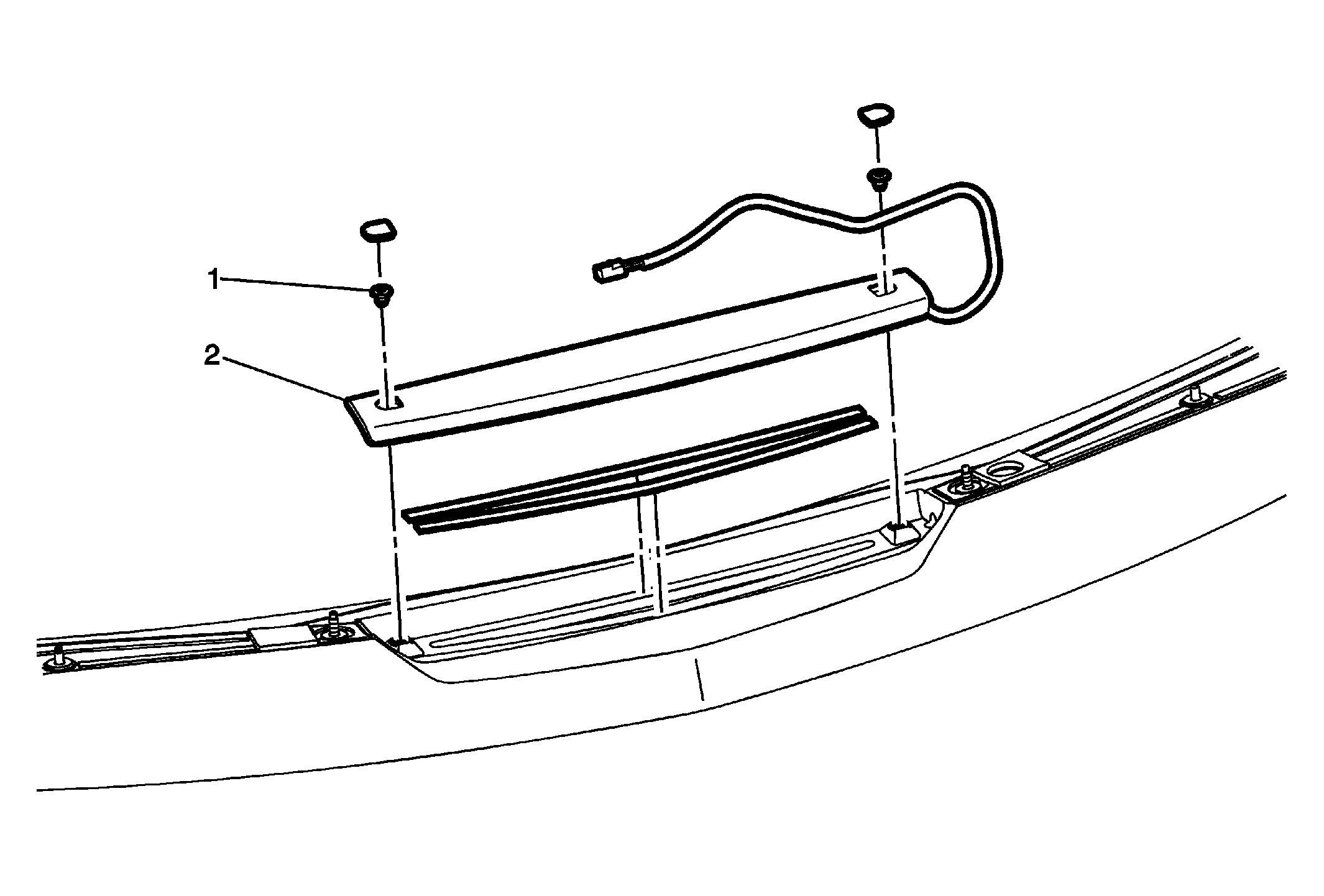

Fig 1: High Mount Stop Lamp & Rear End Spoiler Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear end spoiler. Refer to Rear End Spoiler Replacement , Rear End Spoiler Replacement (ZL1) .
1	Rear End Spoiler Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Remove caps from each end of the high mount stop lamp to access bolts.
2	High Mount Stop Lamp Procedures Using a suitable flat bladed plastic tool separate high mount stop lamp from rear end spoiler. Disconnect the electrical harness connector and feed through rear end spoiler to fully separate high mount stop lamp from rear end spoiler. Clean area with a 50/50 solution by volume of isopropyl alcohol and clean drinkable water. Dry area with a clean lint-free cloth.

Callout

Component Name

Preliminary Procedure
Remove the rear end spoiler. Refer to Rear End Spoiler Replacement , Rear End Spoiler Replacement (ZL1) .

Rear End Spoiler Bolt (Qty: 2)

CAUTION:

Remove caps from each end of the high mount stop lamp to access bolts.

High Mount Stop Lamp

Procedures

Using a suitable flat bladed plastic tool separate high mount stop lamp from rear end spoiler.
Disconnect the electrical harness connector and feed through rear end spoiler to fully separate high mount stop lamp from rear end spoiler.
Clean area with a 50/50 solution by volume of isopropyl alcohol and clean drinkable water.
Dry area with a clean lint-free cloth.
