Rear End Spoiler Replacement
Courtesy of GENERAL MOTORS COMPANY Rear End Spoiler Replacement

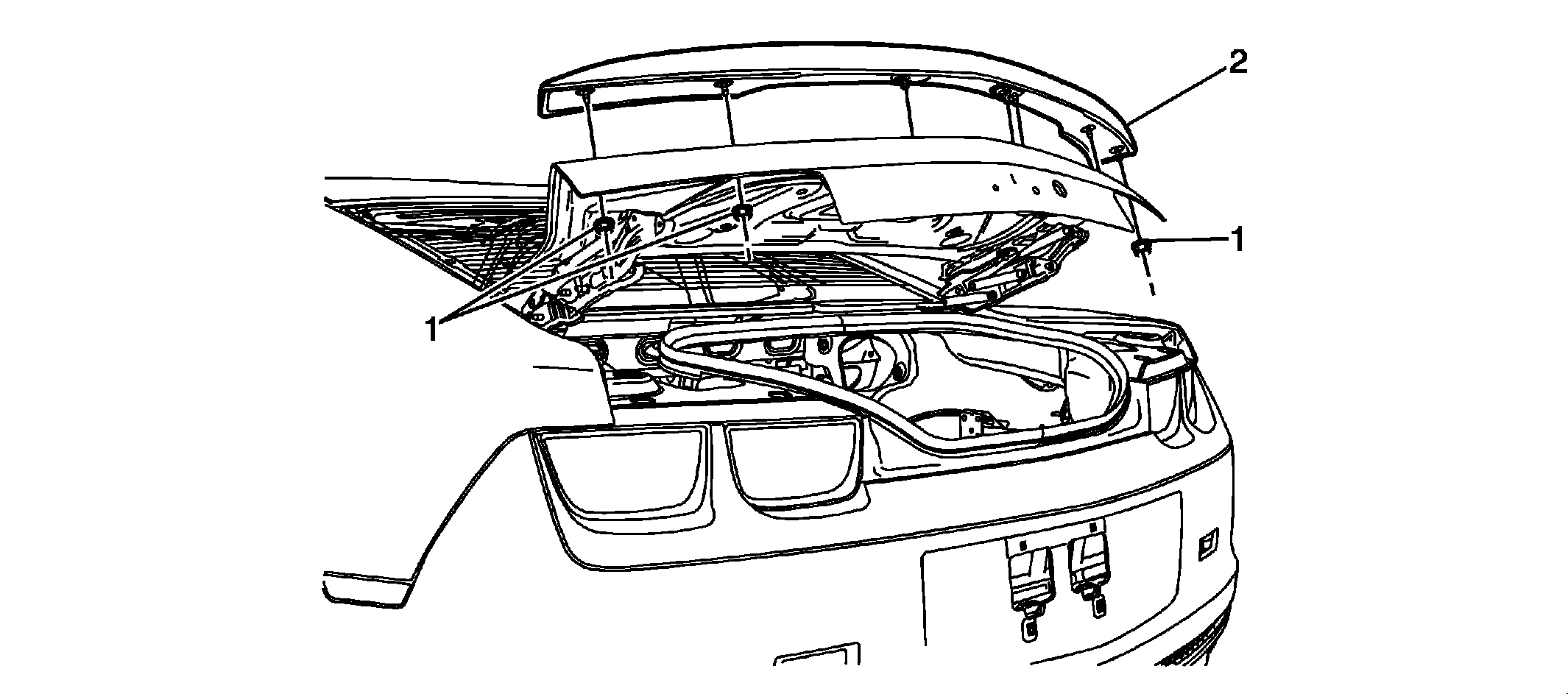

| Callout |
Component Name |
|
Preliminary Procedures
- Open the rear compartment lid.
- Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement (Coupe)
, Rear Compartment Lid Carpet Replacement (Convertible)
.
|
| 1 |
Rear End Spoiler Nut (Qty: 6)
Tighten
6 N.m(53 lb in) |
| 2 |
Rear End Spoiler Assembly Procedures
- Transfer the radio control module, if equipped.
- Position the new spoiler to the rear compartment lid stud holes.
- Raise the rear compartment lid.
- Install and secure all nuts.
|
