Rear End Spoiler Replacement (ZL1)
Courtesy of GENERAL MOTORS COMPANY Rear End Spoiler Replacement (ZL1)

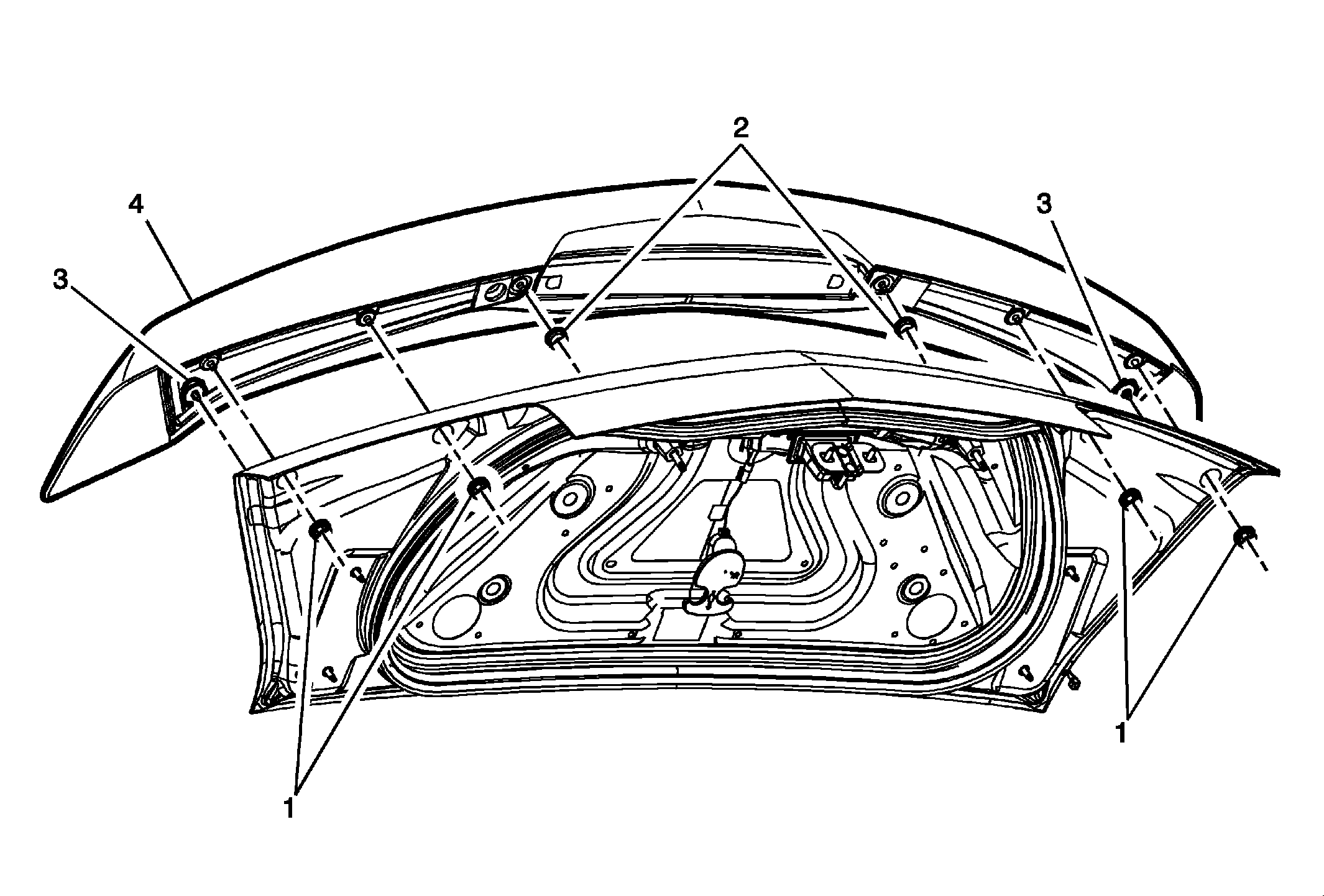

| Callout |
Component Name |
|
Preliminary Procedures
- Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement (Coupe)
, Rear Compartment Lid Carpet Replacement (Convertible)
.
- The part and surface should be 21°C (70°F) prior to installation.
|
| 1 |
Rear End Spoiler Nut (Qty: 6)
|
| 2 |
Rear End Spoiler Procedures
- Using a suitable flat bladed plastic tool separate rear end spoiler from rear compartment lid while releasing retainers and tape.
- Clean area with a 50/50 solution by volume of isopropyl alcohol and clean drinkable water.
- Dry with a clean lint-free cloth.
- The vehicle should remain 21°C (70°F) for 1 hour after assembly to allow adhesive to develop sufficient bond strength.
|
