Front Side Marker Lamp Replacement

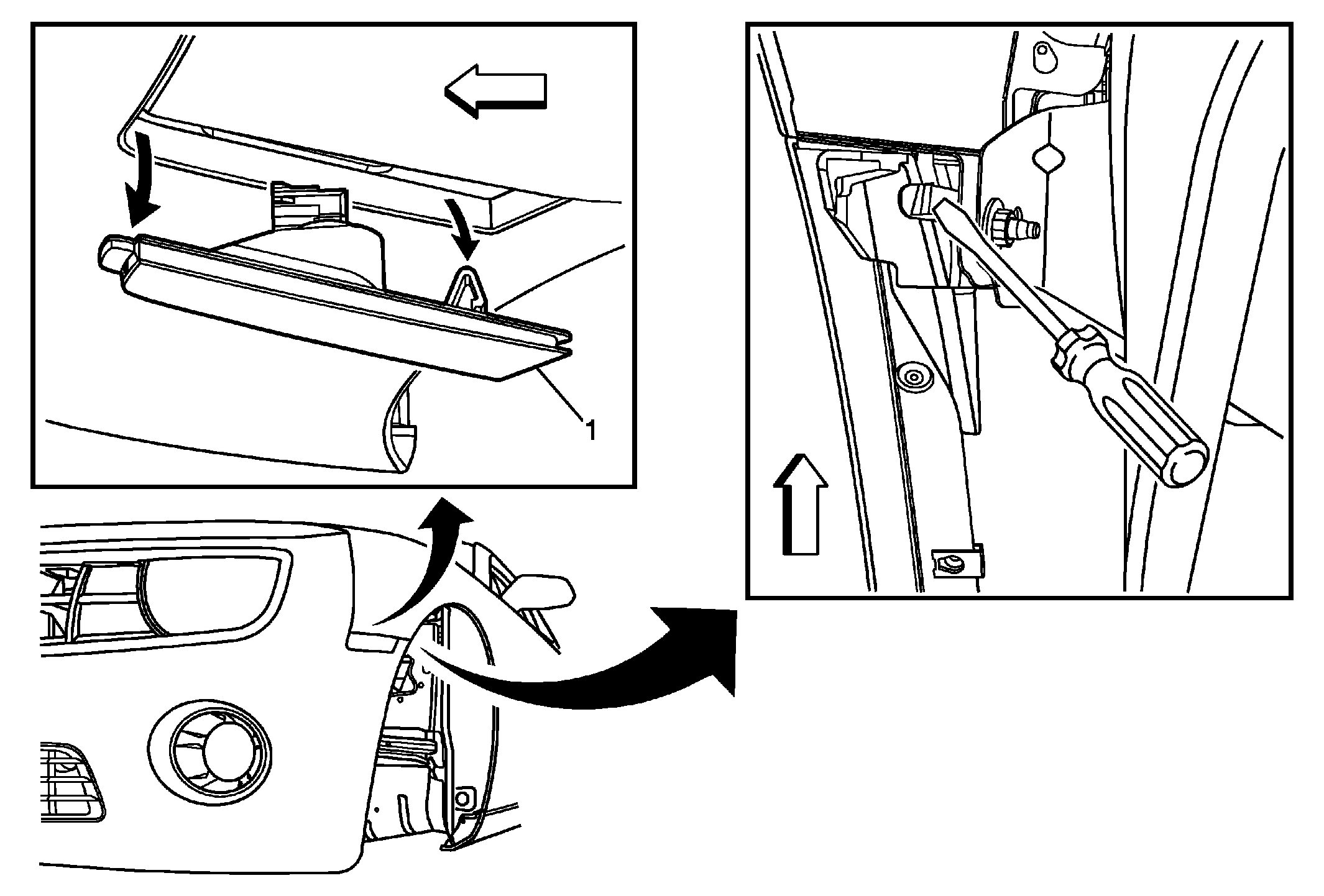

Fig 1: Front Side Marker Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) . Insert a small flat-bladed tool into the front bumper fascia lower reinforcement in order to access the locking tab on the front marker lamp. Gently push the locking tab inward in order to release lamp from the bumper fascia assembly. Pull the front marker lamp outward from the front bumper fascia.
1	Front Side Marker Lamp Assembly TIP: Disconnect the electrical connector socket after the lamp has been removed from the front bumper fascia.

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse front liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) .
Insert a small flat-bladed tool into the front bumper fascia lower reinforcement in order to access the locking tab on the front marker lamp.
Gently push the locking tab inward in order to release lamp from the bumper fascia assembly.
Pull the front marker lamp outward from the front bumper fascia.

Front Side Marker Lamp Assembly
TIP: Disconnect the electrical connector socket after the lamp has been removed from the front bumper fascia.
