Front Fog Lamp Replacement (ZL1)

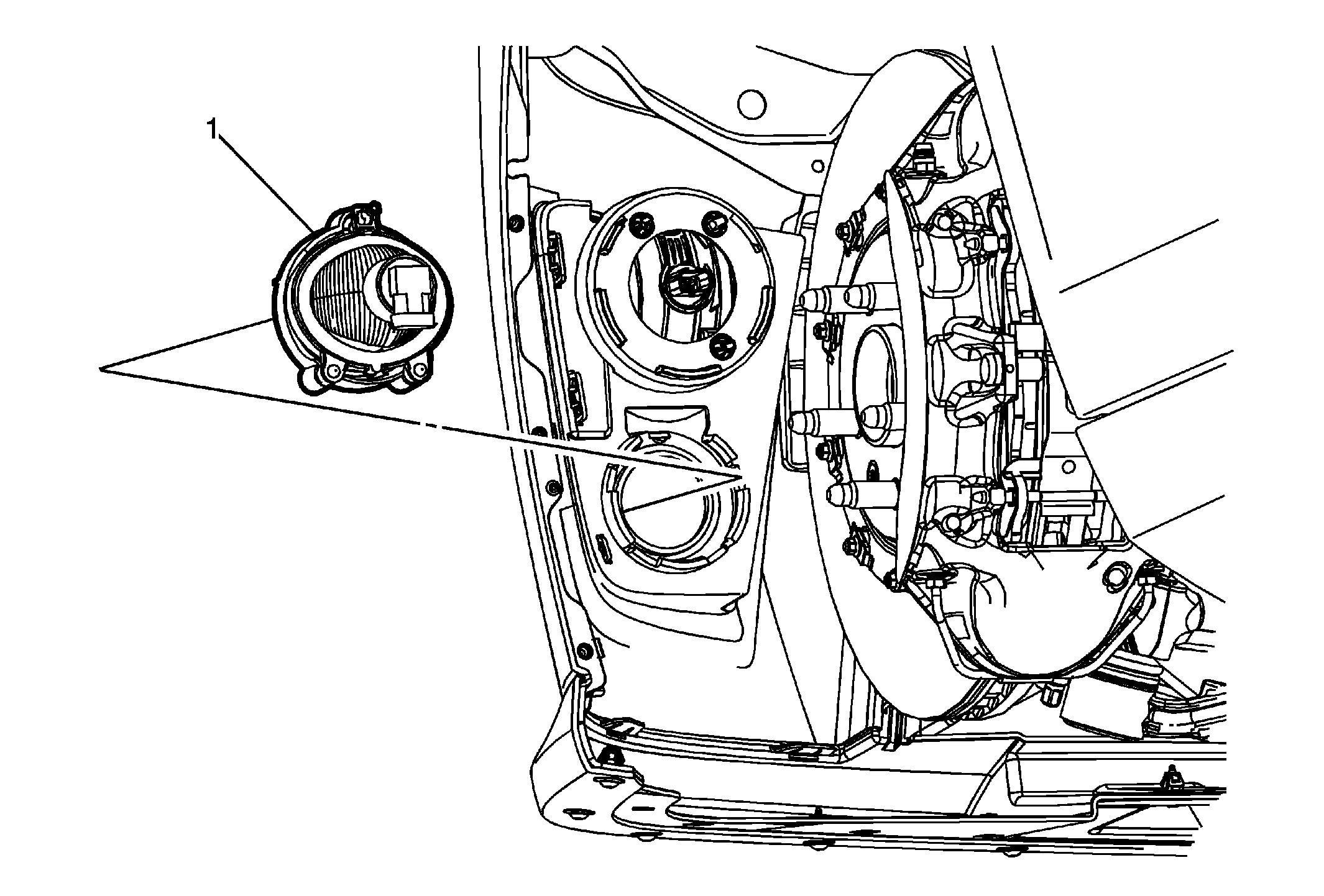

Fig 1: Front Fog Lamp (ZL1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) .
1	Front Fog Lamp WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector from the front fog lamp bulb. Using a suitable plastic flat bladed tool release the front fascia tabs and pull front fog lamp rearward.

Callout

Component Name

Front Fog Lamp

WARNING:

Procedure

Disconnect the electrical connector from the front fog lamp bulb.
Using a suitable plastic flat bladed tool release the front fascia tabs and pull front fog lamp rearward.
