Daytime Running Lamp Bulb Replacement (RS)
Daytime Running Lamp Bulb Replacement (RS)

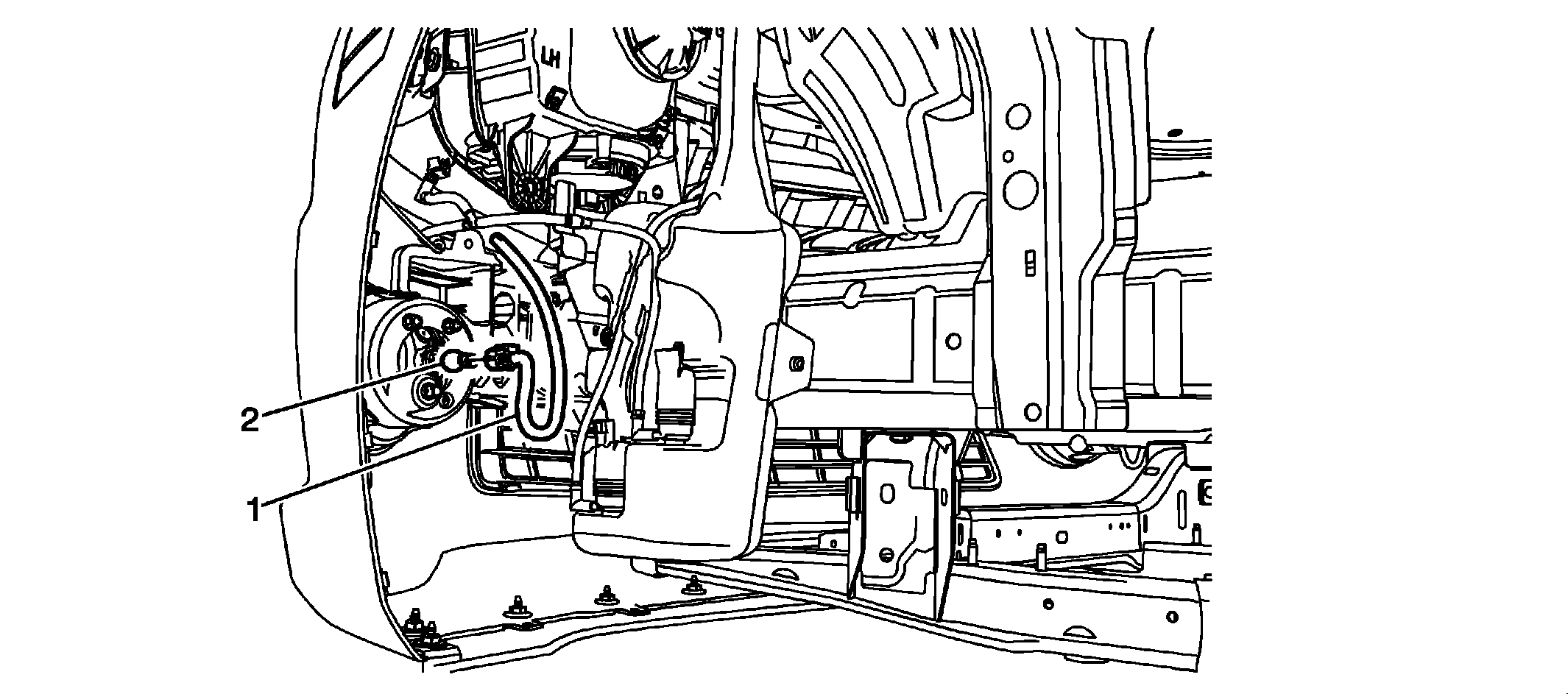

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS) , Front Wheelhouse Liner Replacement (ZL1) . |
|
| 1 | Forward Lamp Harness Connector TIP: Disconnect the forward lamp harness connector from the daytime running lamp bulb socket. |
| 2 | Daytime Running Lamp Bulb
WARNING:
Refer to Halogen Bulb Warning . TIP: Rotate the bulb socket counterclockwise and remove from the (DRL) lamp projector. |
