Multifunction Auxiliary Gauge Replacement (With UMG)

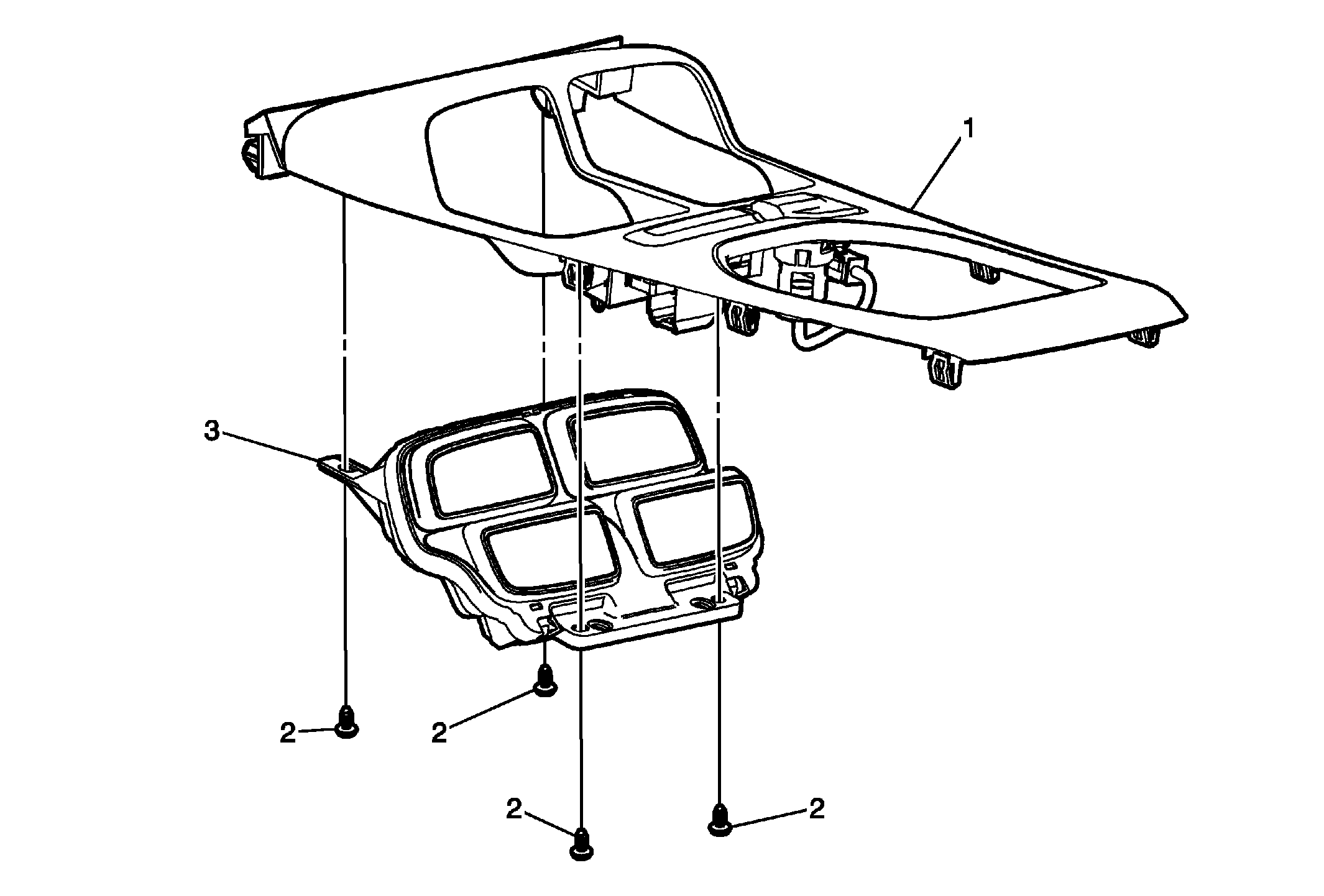

Fig 1: Multifunction Auxiliary Gauge And Fasteners (With UMG)

Courtesy of GENERAL MOTORS COMPANY

Multifunction Auxiliary Gauge Replacement (With UMG)

Callout	Component Name
1	Front Floor Console Front Cover Refer to Front Floor Console Front Cover Replacement (With UMQ) , Front Floor Console Front Cover Replacement (Without UMQ) .
2	Multifunction Auxiliary Gauge Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Multifunction Auxiliary Gauge Assembly Procedure  Refer to Control Module References for programming and set up information.
