Head-Up Display Replacement

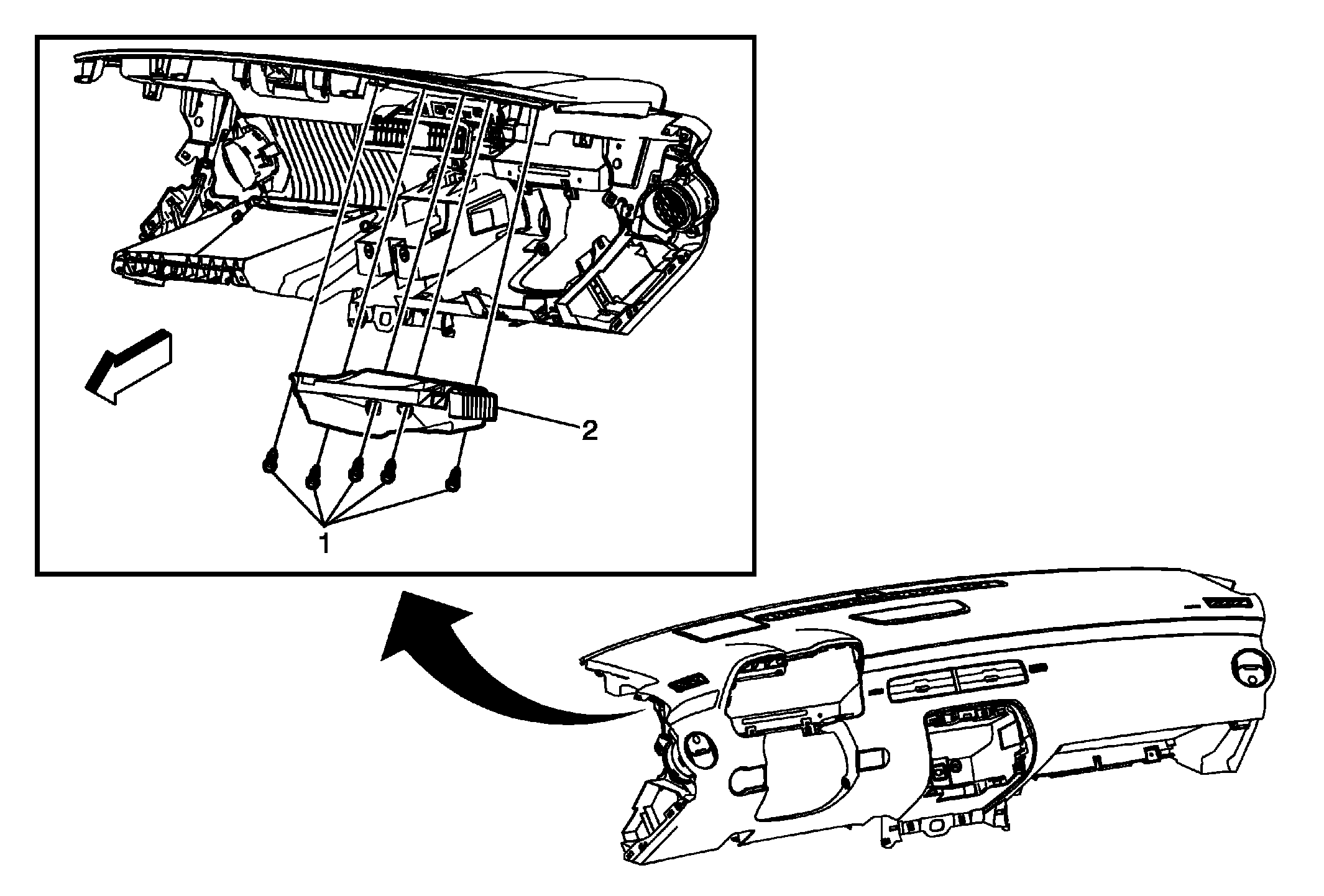

Fig 1: Instrument Cluster Head-Up Display And Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (with UV6) , Instrument Panel Trim Pad Replacement (without UV6) . Remove the air distributor duct. Refer to Air Distributor Duct Replacement
1	Instrument Cluster Heads Up Display Fasteners (Qty: 5) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Heads Up Display Procedure Disconnect the electrical connections.

Callout

Component Name

Preliminary Procedures

Instrument Cluster Heads Up Display Fasteners (Qty: 5)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster Heads Up Display
Procedure
Disconnect the electrical connections.
