Air Distributor Duct Replacement

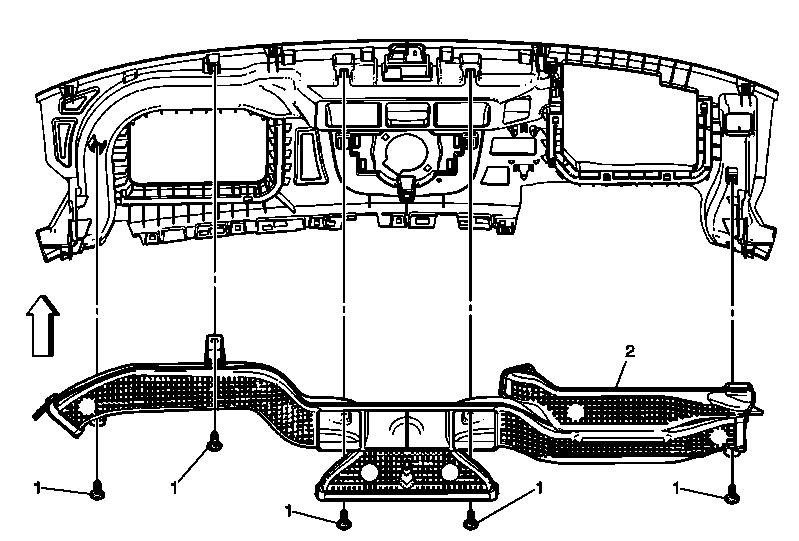

Fig 1: Air Distributor Duct & Screws
GM2184912Courtesy of GENERAL MOTORS COMPANY
Air Distributor Duct Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the I/P trim pad. Refer to Instrument Panel Trim Pad Replacement (with UV6) , Instrument Panel Trim Pad Replacement (without UV6) .
  2. Reposition any wiring or hoses to gain access to air duct.
1 Air Distributor Duct Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m(13 2b in)
2 Air Distributor Duct
