Rear Seat Back Cushion Frame Replacement

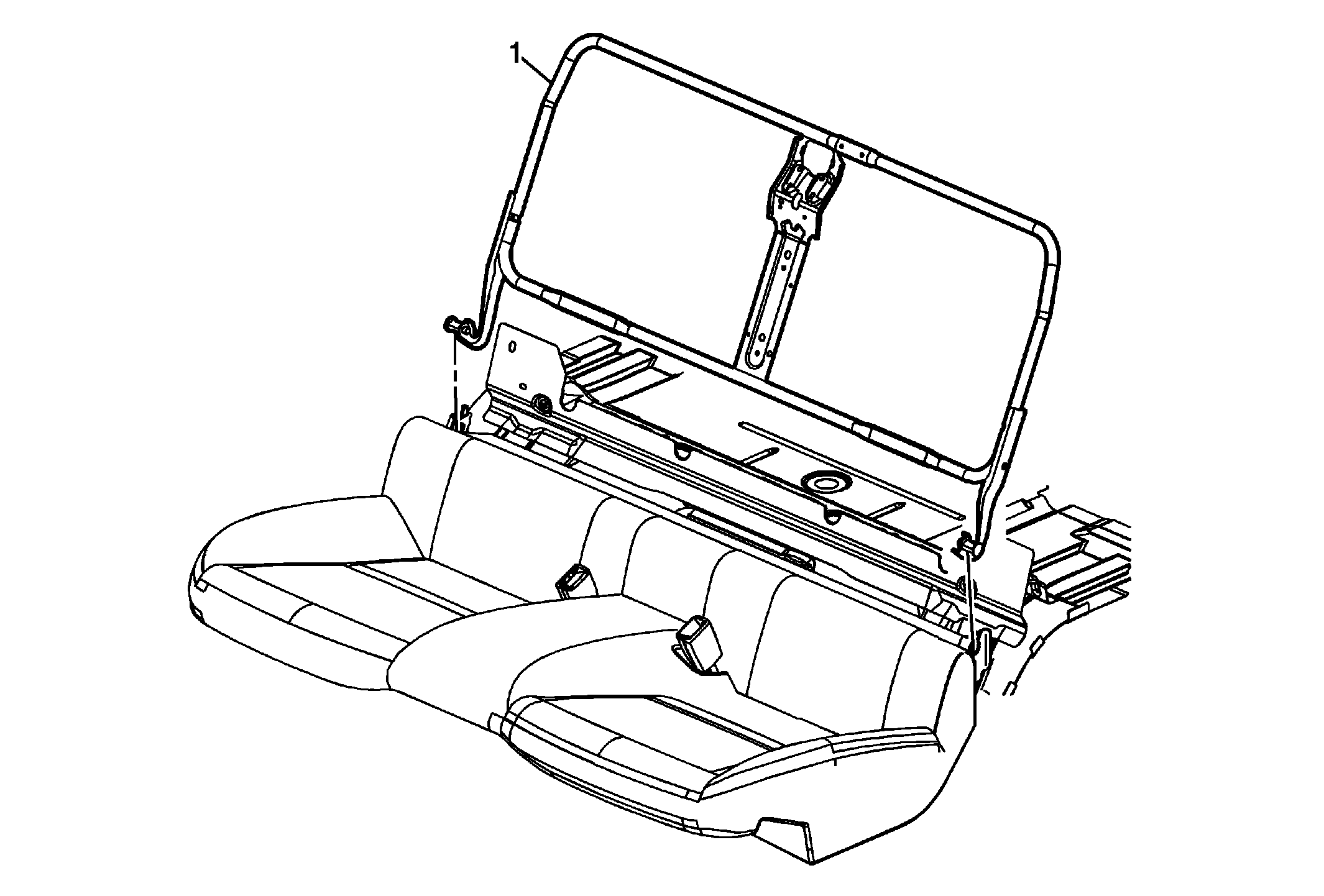

Fig 1: Rear Seat Back Cushion Frame

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat back cushion opening panel. Refer to Rear Seat Back Cushion Panel Replacement . Remove the rear seat back cushion latch actuator. Refer to Rear Seat Back Cushion Stowage Latch Actuator Replacement .
1	Rear Seat Back Cushion Frame Assembly Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedure

Remove the rear seat back cushion opening panel. Refer to Rear Seat Back Cushion Panel Replacement .
Remove the rear seat back cushion latch actuator. Refer to Rear Seat Back Cushion Stowage Latch Actuator Replacement .

Rear Seat Back Cushion Frame Assembly
Procedure
Transfer components as necessary.
