Front Bumper Impact Bar Fog Lamp Access Hole Cover Replacement
Courtesy of GENERAL MOTORS COMPANY Front Bumper Impact Bar Fog Lamp Access Hole Cover Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the front wheelhouse panel liner. Refer to Front Wheelhouse Liner Replacement (Base, RS, SS)
, Front Wheelhouse Liner Replacement (ZL1)
.
|

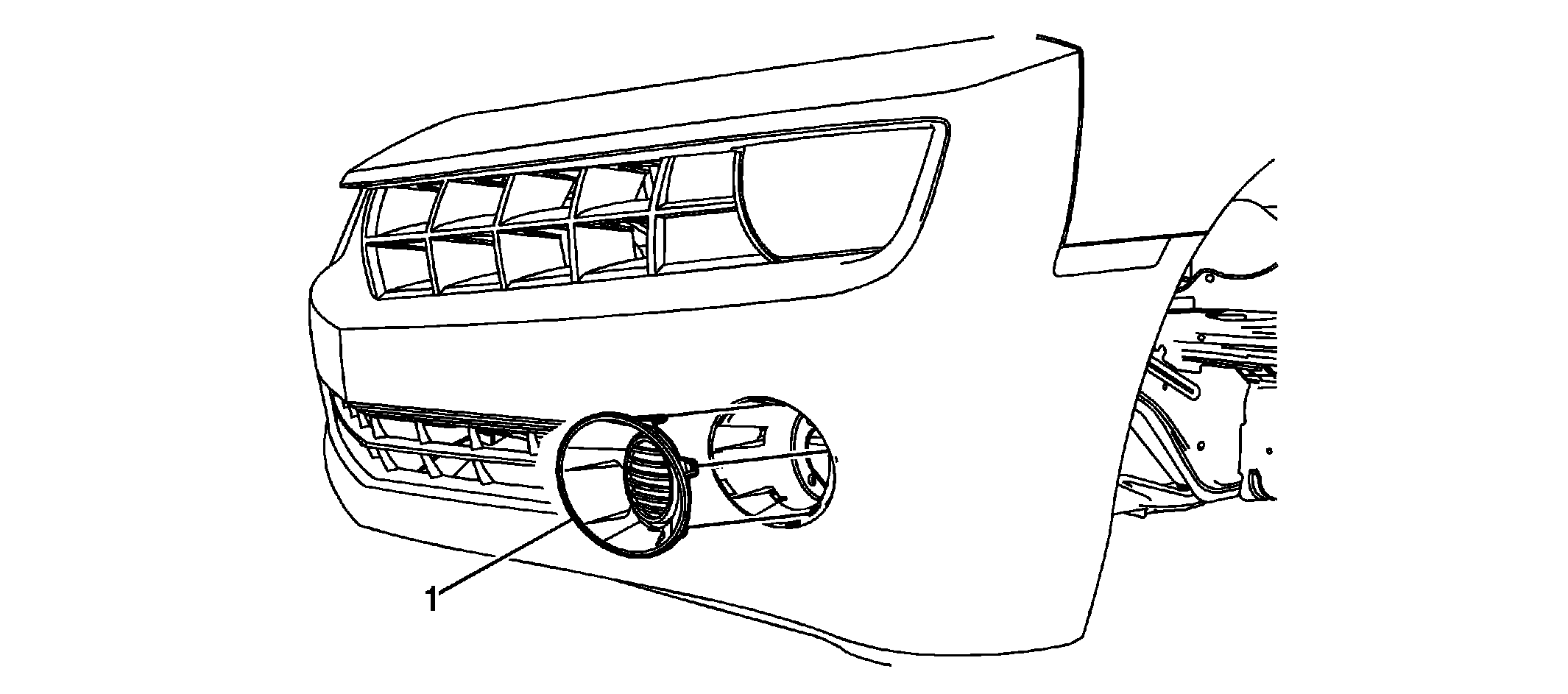

| 1 |
Front Bumper Impact Bar Fog Lamp Access Hole Cover Procedure
- Using a flat-bladed tool from inside the bumper fascia, release the tabs securing the front fog lamp access hole cover to the front bumper fascia.
- Push the front fog lamp access hole cover outward from the front bumper fascia.
|
