Stabilizer Shaft Replacement

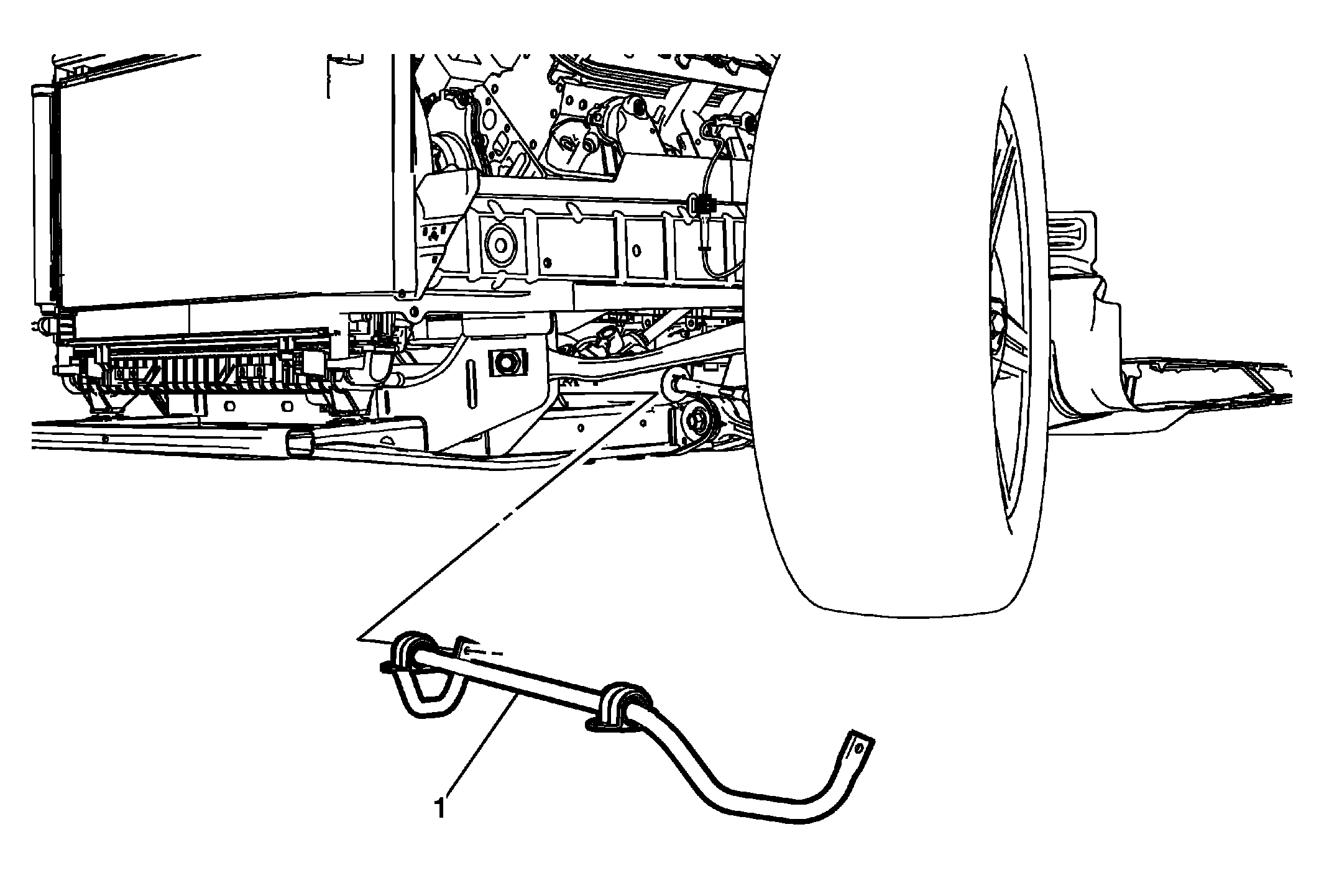

Fig 1: Stabilizer Shaft

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
NOTE: The front stabilizer shaft is serviced with the insulators and clamps. Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the outer tie rod from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement (L99, LFX, LS3, N41) , Steering Linkage Outer Tie Rod Replacement (LSA, NV9) . Remove the stabilizer shaft links from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .
1	Front Stabilizer Shaft Procedure NOTE: Perform this procedure with the suspension in the neutral position, with the vehicle on a level surface. Remove the stabilizer shaft insulators clamp nuts. Refer to Stabilizer Shaft Insulator Replacement

Callout

Component Name

NOTE:

The front stabilizer shaft is serviced with the insulators and clamps.

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the outer tie rod from the steering knuckle. Refer to Steering Linkage Outer Tie Rod Replacement (L99, LFX, LS3, N41) , Steering Linkage Outer Tie Rod Replacement (LSA, NV9) .
Remove the stabilizer shaft links from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement .

Front Stabilizer Shaft
Procedure

NOTE:

Perform this procedure with the suspension in the neutral position, with the vehicle on a level surface.

Remove the stabilizer shaft insulators clamp nuts. Refer to Stabilizer Shaft Insulator Replacement
