Stabilizer Shaft Link Replacement
Courtesy of GENERAL MOTORS COMPANY Stabilizer Shaft Link Replacement

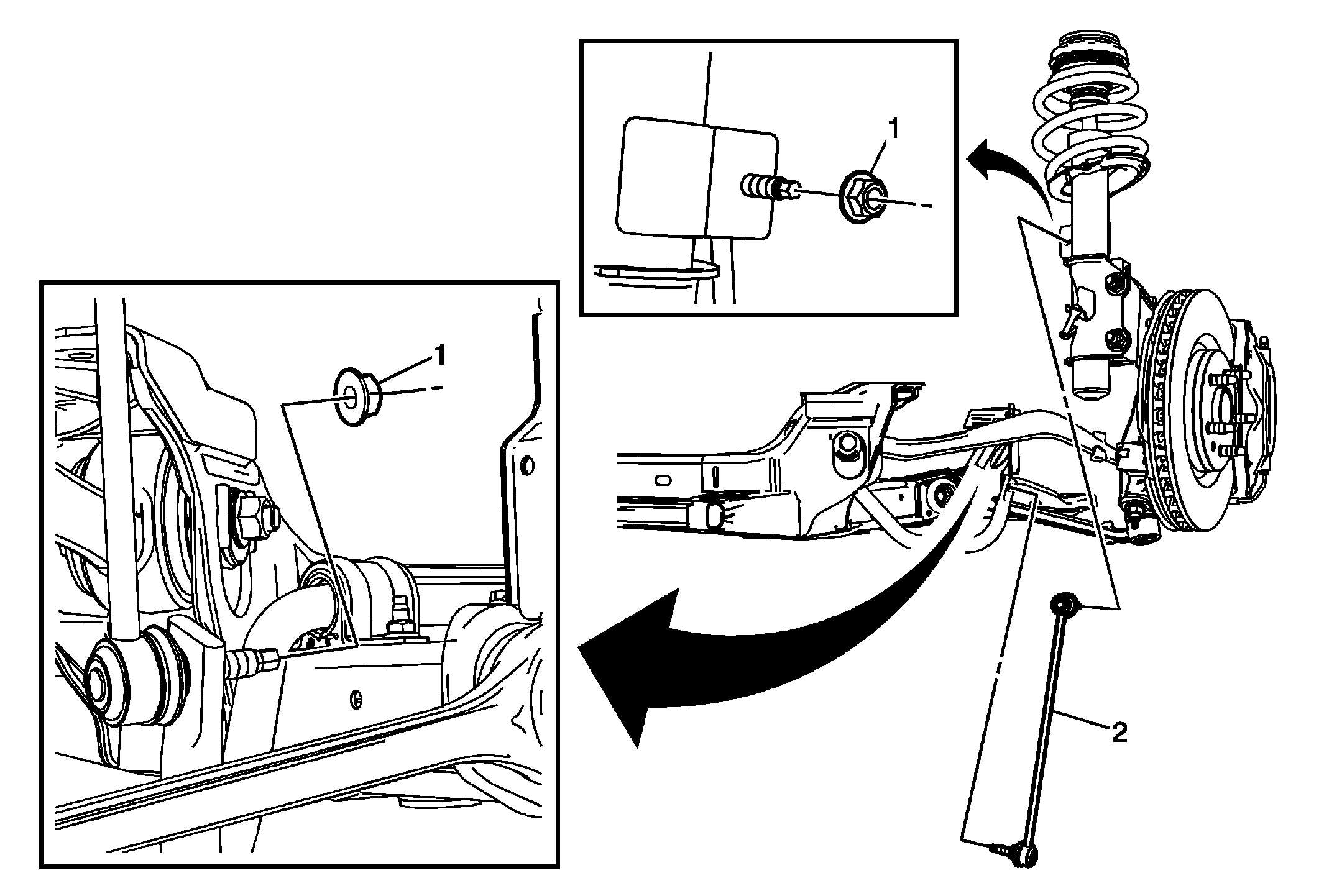

| Callout |
Component Name |
|
Preliminary Procedures
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Remove the tire and wheels. Refer to Tire and Wheel Removal and Installation (w RT2)
, Tire and Wheel Removal and Installation (w/o RT2)
.
|
| 1 |
Front Stabilizer Shaft Nut (Qty: 2)
NOTE:
- Use the appropriate size socket or wrench to hold the ball stud while removing the stabilizer shaft nut.
- After the nut has been removed, discard and replace with NEW.
Tighten
- Nut at stabilizer shaft - 50 (36 lb ft)
- Nut at strut - 70 (52 lb ft)
|
| 2 |
Stabilizer Shaft Link |
