Stabilizer Shaft Insulator Replacement

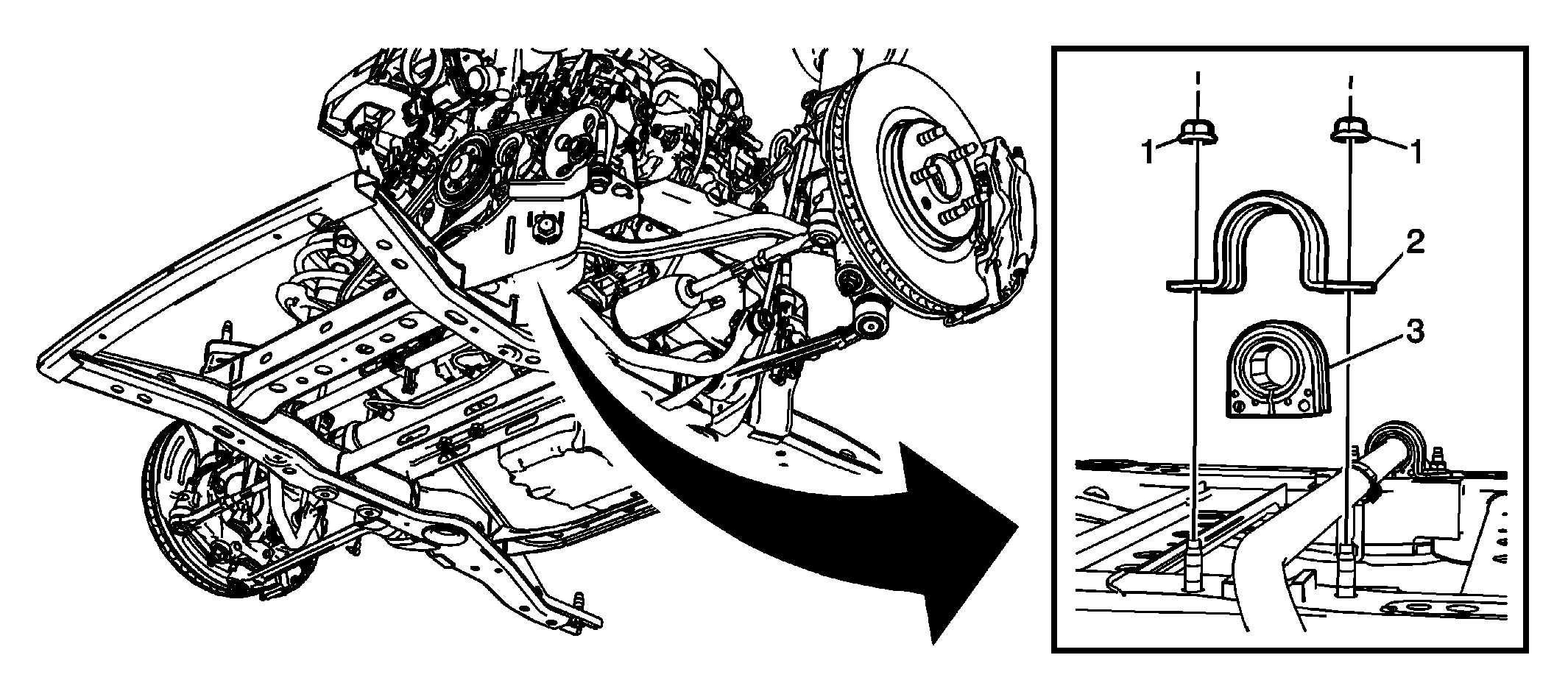

Fig 1: Stabilizer Shaft Insulator, Clamp And Nuts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Front Stabilizer Shaft Clamp Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the stabilizer shaft links. Refer to Stabilizer Shaft Link Replacement . NOTE: Perform this procedure with the suspension in the neutral position, with the vehicle on a level surface. Install and hand tighten the insulator clamp nuts. NOTE: Tighten the insulator clamp nuts from the top of the vehicle. Lower the vehicle and tighten the insulator clamp nuts. Tighten 43 (32 lb ft)
2	Front Stabilizer Shaft Clamp
3	Front Stabilizer Shaft Insulator
