Instrument Panel Center Trim Panel Replacement (9C3)

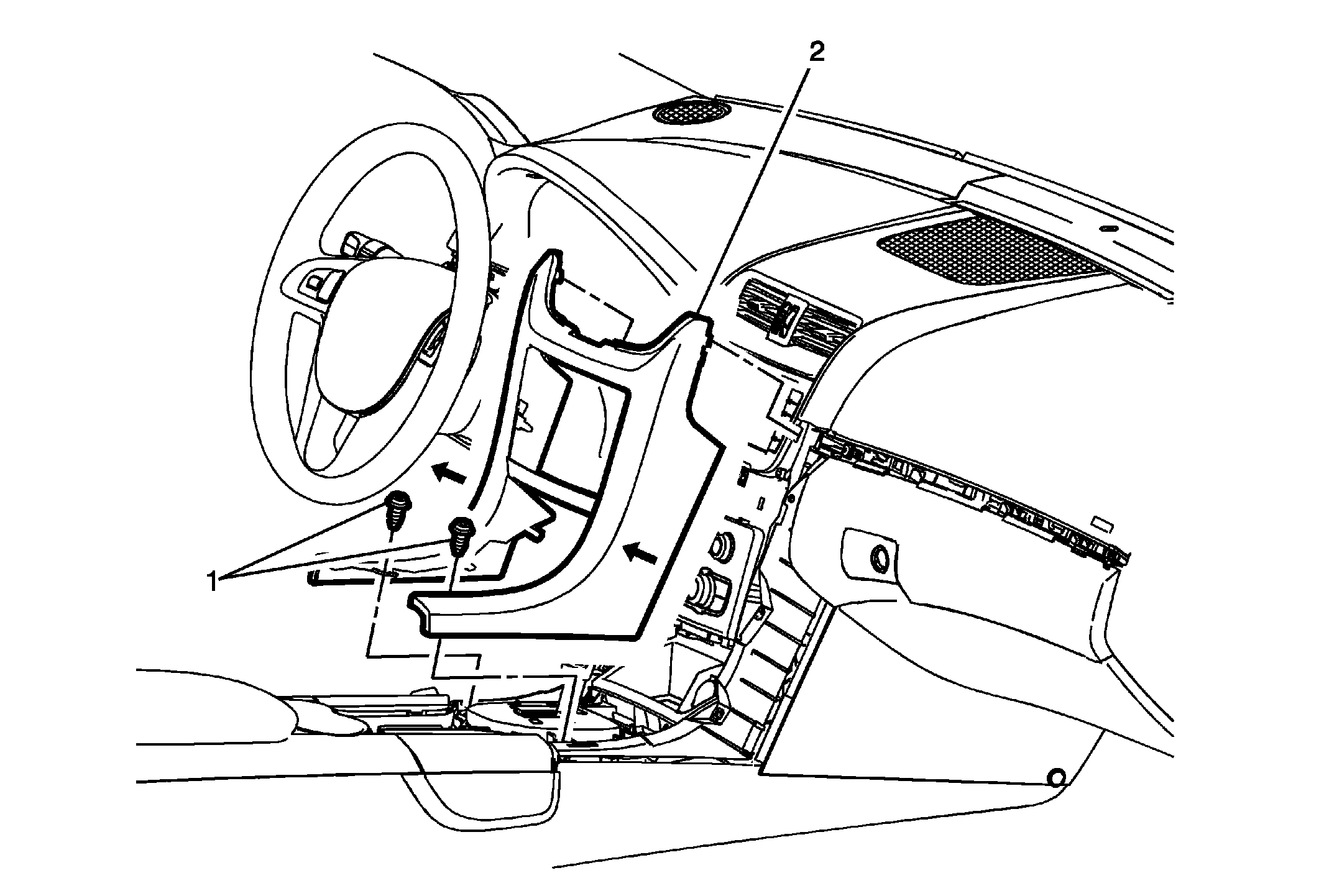

Fig 1: Instrument Panel Center Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the right and left instrument panel trim plate appliques. Refer to Instrument Panel Trim Plate Applique Replacement . Remove the front floor console front trim cover. Refer to Console Trim Plate Replacement (9C3) .
1	Instrument Panel Lower Center Trim Panel Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Lower Center Trim Panel Assembly Procedures Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the instrument panel assembly. Grasp firmly on both sides and pull evenly backward without twisting.

Callout

Component Name

Preliminary Procedures

Remove the right and left instrument panel trim plate appliques. Refer to Instrument Panel Trim Plate Applique Replacement .
Remove the front floor console front trim cover. Refer to Console Trim Plate Replacement (9C3) .

Instrument Panel Lower Center Trim Panel Fastener (Qty: 2)

CAUTION:

Instrument Panel Lower Center Trim Panel Assembly

Procedures

Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim panel to the instrument panel assembly.
Grasp firmly on both sides and pull evenly backward without twisting.
