Accessory Switch Replacement (9C1)

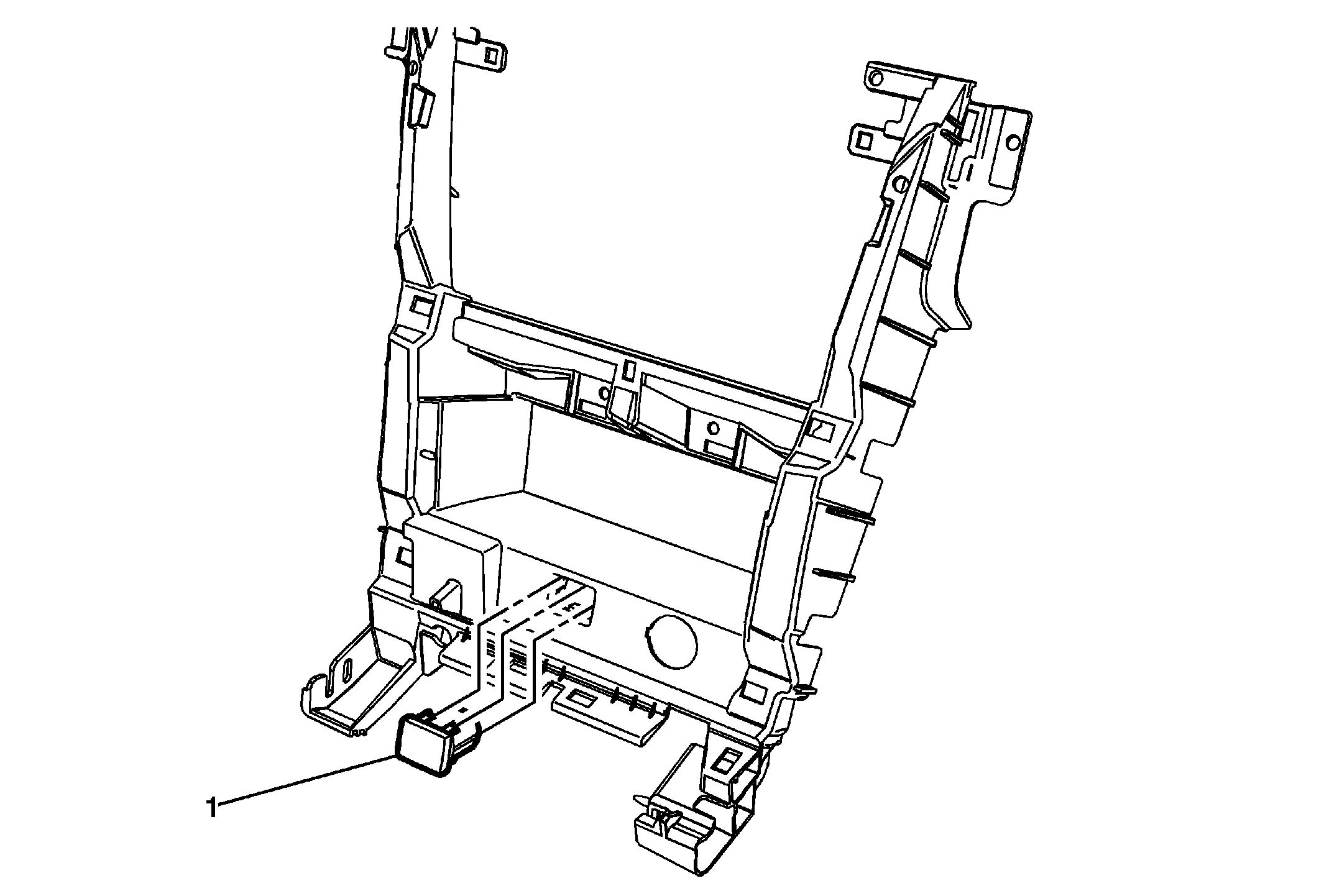

Fig 1: Accessory Switch (9C1)
GM2552058Courtesy of GENERAL MOTORS CORP.
Accessory Switch Replacement (9C1)

Callout Component Name
Preliminary Procedure
Remove the instrument panel center lower support. Refer to Instrument Panel Center Lower Support Replacement (9C1) , Instrument Panel Center Lower Support Replacement (9C3) .
1 Accessory Switch

Procedure

  1. Disconnect electrical connector.
  2. Depressing four tabs, remove switch forward of support.
