Luggage Carrier Cross Rail Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

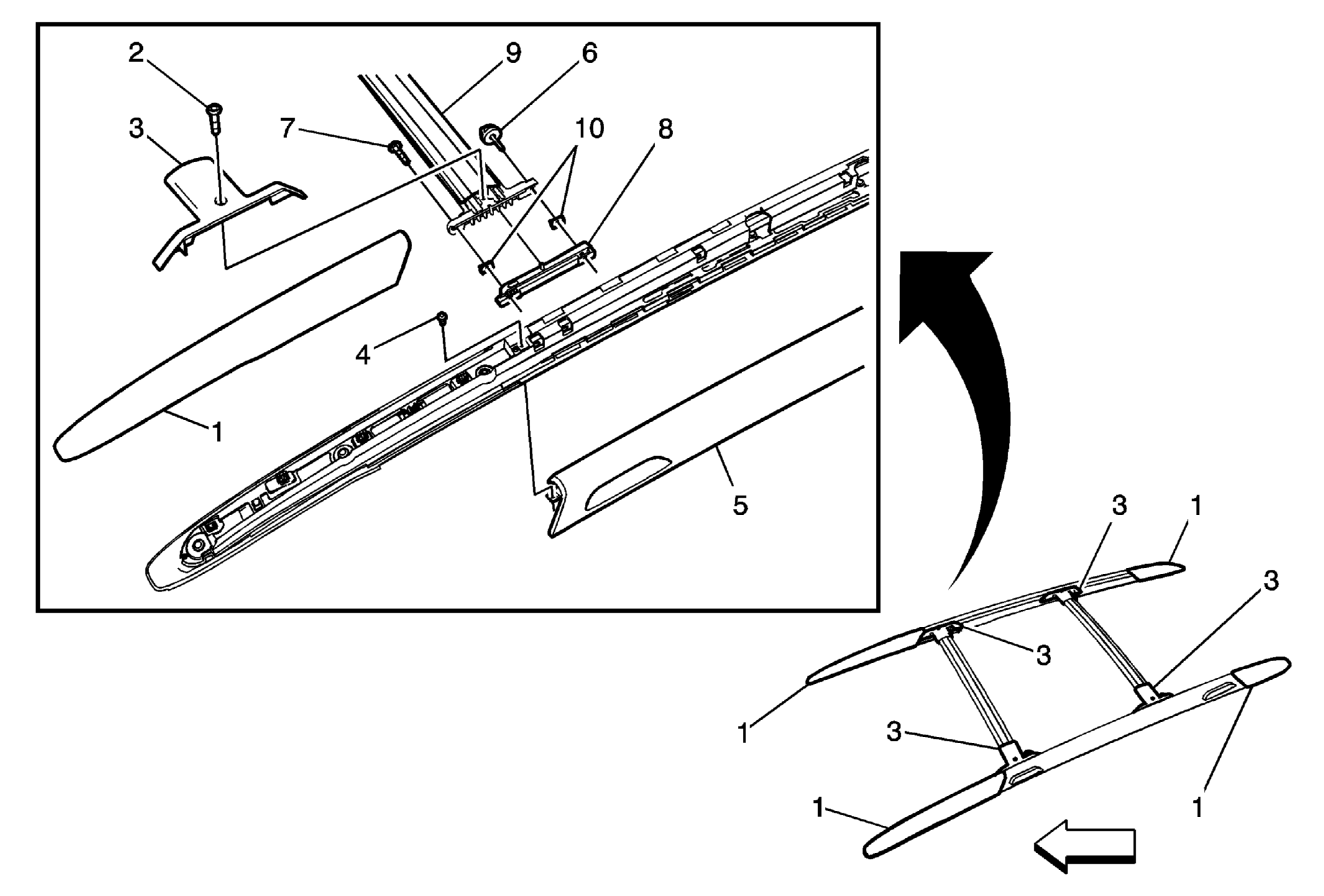

| Callout | Component Name |
|---|---|
| 1 | Luggage Carrier Finish Cover (Qty: 4) Procedure Remove the luggage carrier finish covers from all 4 corners. Refer to Luggage Carrier Replacement (Traverse) Luggage Carrier Replacement (Acadia) . TIP: It is necessary to remove the rear cross rail if the front cross rail is being removed. |
| 2 | Luggage Carrier Cross Rail Cover Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 3 | Luggage Carrier Cross Rail Cover (Qty: 4) |
| 4 | Luggage Carrier Rail Applique Fastener (Qty: 4) Tighten 5 N.m (44 lb in) |
| 5 | Luggage Carrier Rail Applique (Qty: 2) |
| 6 | Luggage Carrier Rail Retainer Fastener (Qty: 2) TIP: Note the location of the number six bolt used for tie down. One in each inside corner of the cross rail. Tighten 5 N.m (44 lb in) |
| 7 | Luggage Carrier Cross Rail Fastener (Qty: 2) Tighten 5 N.m (44 lb in) |
| 8 | Luggage Carrier Cross Rail Slide (Qty: 2) |
| 9 | Luggage Carrier Cross Rail Procedure
|
| 10 | Luggage Carrier Cross Rail Slide Nut (Qty: 2) |
