Luggage Carrier Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

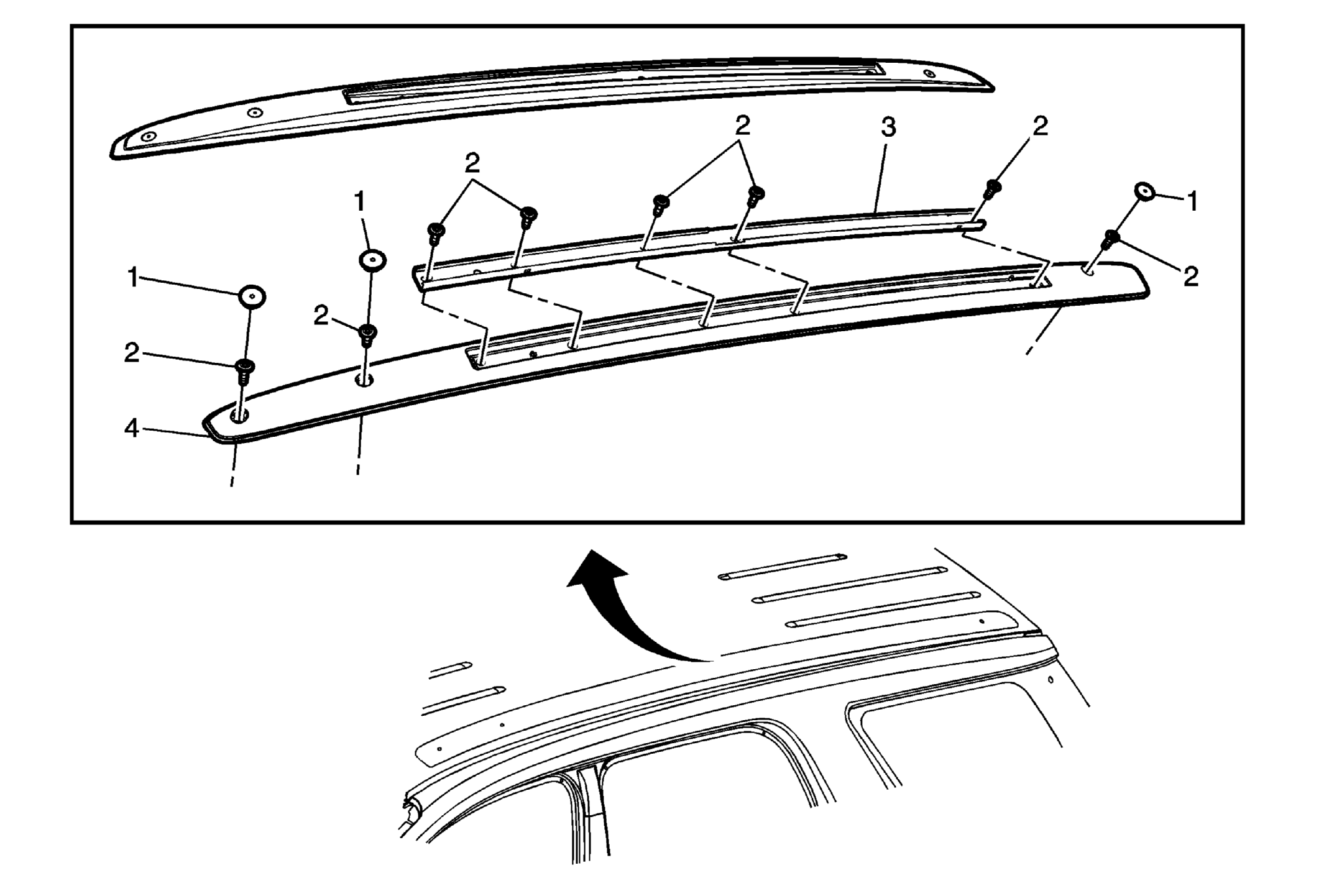

| Callout | Component Name |
|---|---|
| 1 | Luggage Carrier Rail Bolt Cover (Qty: 3) Procedure Remove the luggage carrier bolt caps from each end, two in the front and one in the rear. |
| 2 | Luggage Carrier Rail Screw (Qty: 8)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 3 | Luggage Carrier C-Channel TIP: The 5 screws in the center of the luggage carrier do not come with washers. If installing a C-channel ensure that the screws have washers or they will pull through the C-channel. |
| 4 | Luggage Carrier Rail and Seal |
