Luggage Carrier Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

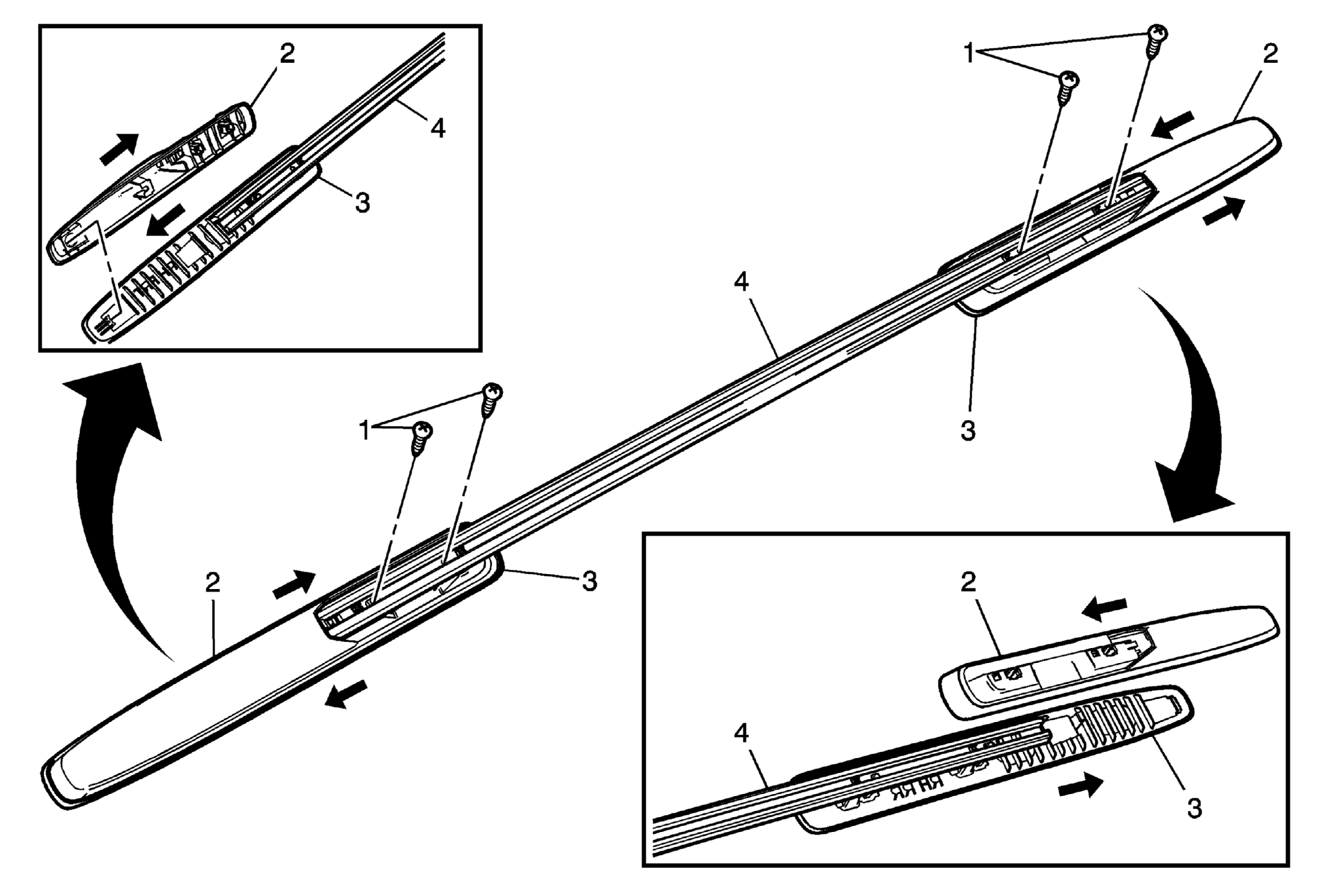

Fig 1: Roof Luggage Carrier (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Luggage Carrier Rail Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Luggage Carrier Rail Support Cover (Qty: 2) Procedure The screws must be remove from the front and rear luggage carrier rail to remove rail support cover. Push downward and pull forward releasing the rail support cover from the rail retainer holes, front and rear are the same.
3	Luggage Carrier Rail Support Pad (Qty: 2)
4	Luggage Carrier Rail Procedure Slide the rail support cover over the retainers until it locks in place. Ensure that the rail support pads are position to the roof holes before installing the screws.
