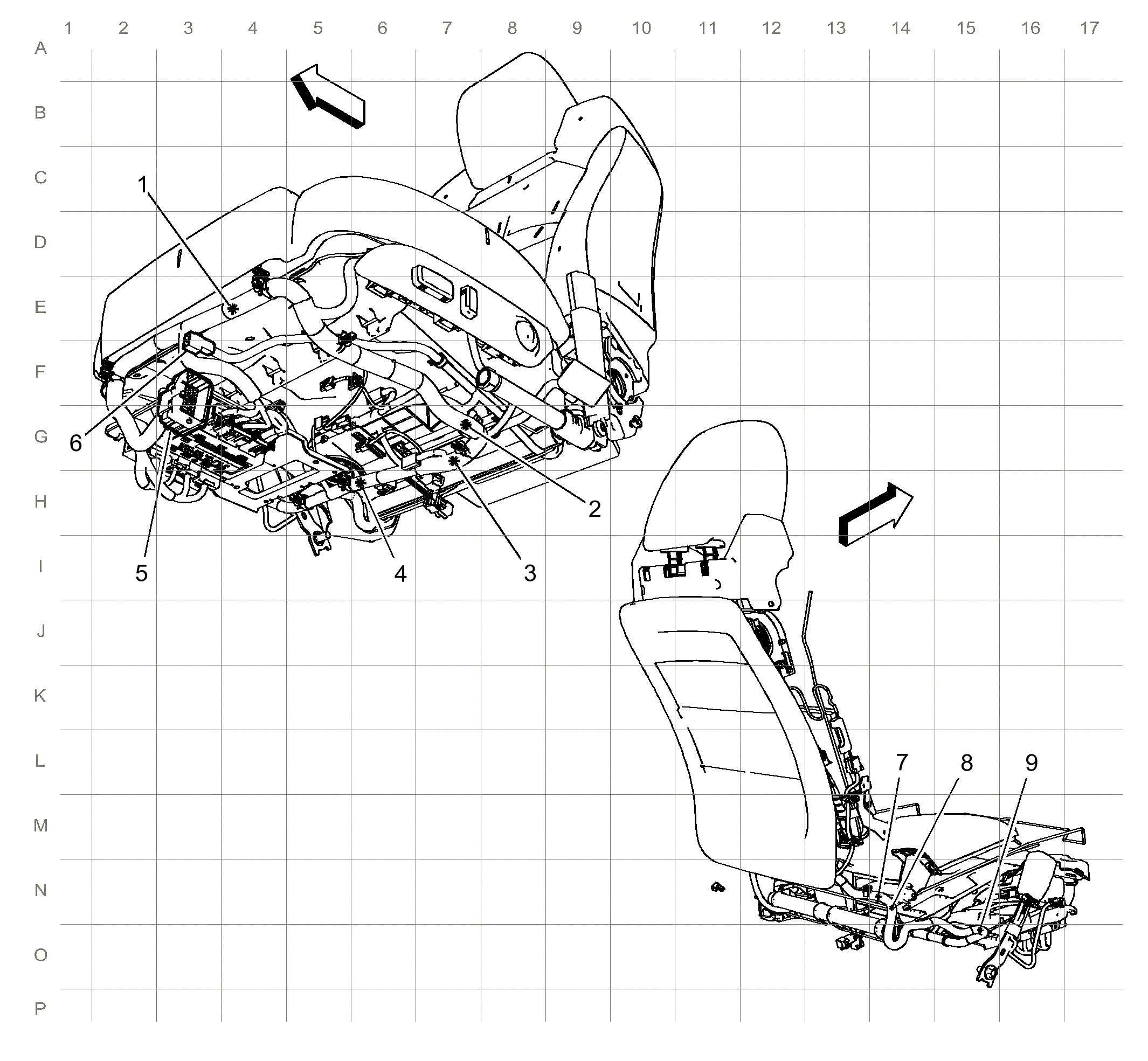

Driver Seat Harness Routing (AG3)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J357 |
| 2. J355 (AG3 or AH5) |
| 3. J353 (KA1) |
| 4. J354 (AG3) |
| 5. X315 X315 Body Harness to Driver Seat Harness |
| 6. X333 X333 Body Harness to Driver Seat Harness |
| 7. J358 (KB6) |
| 8. J359 (KB6) |
| 9. J350 (AG3) |
