X333 Body Harness to Driver Seat Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

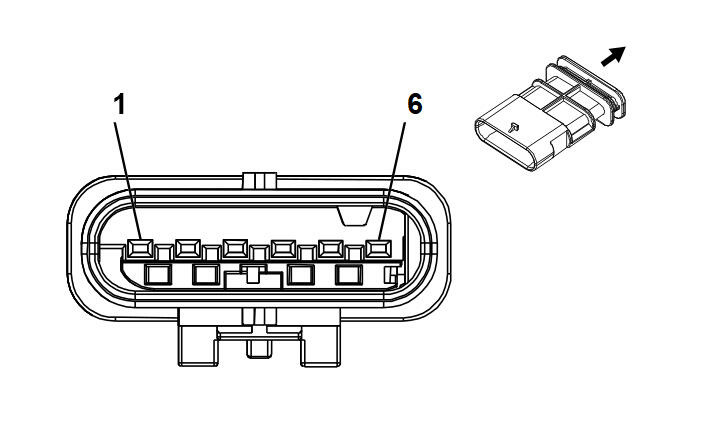

Connector Part Information
- Harness Type: Body
- OEM Connector: 13580158
- Service Connector: 19301524
- Description: 6-Way F 1.2 MCP Series, Sealed (YE)
|
Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 1-2141324-4
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M 1.2 MCP Series, Sealed (YE)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-13 (BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
WH |
3064 |
I |
- |
Driver Seat Belt Buckle Pretensioner High Control |
1 |
0.5 |
WH |
3064 |
II |
- |
| 2 |
0.5 |
BN |
2137 |
I |
- |
Left Front Side Impact Module High Control |
2 |
0.5 |
BN |
2137 |
II |
- |
| 3 |
0.5 |
VT |
4106 |
I |
AYQ |
Center Side Impact Module Low Control |
3 |
0.5 |
VT |
4106 |
II |
AYQ |
| 4 |
0.5 |
YE/BK |
3065 |
I |
- |
Driver Seat Belt Buckle Pretensioner Low Control |
4 |
0.5 |
YE/L-GN |
3065 |
II |
- |
| 5 |
0.5 |
YE/BK |
2138 |
I |
- |
Left Front Side Impact Module Low Control |
5 |
0.5 |
YE/BK |
2138 |
II |
- |
| 6 |
0.5 |
BN/WH |
4107 |
I |
AYQ |
Center Side Impact Module High Control |
6 |
0.5 |
BN/WH |
4107 |
II |
AYQ |
