X315 Body Harness to Driver Seat Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

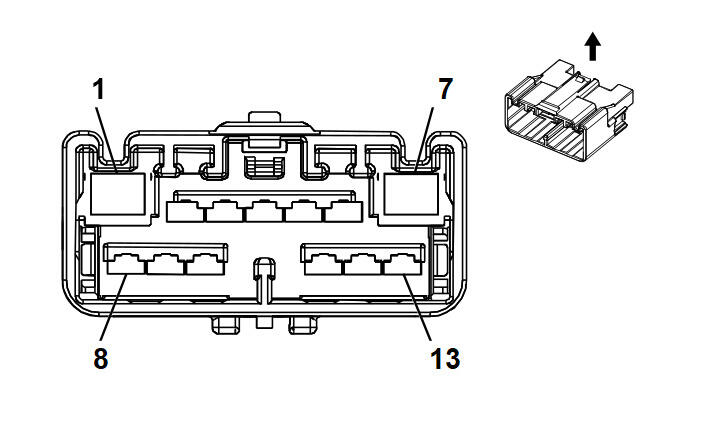

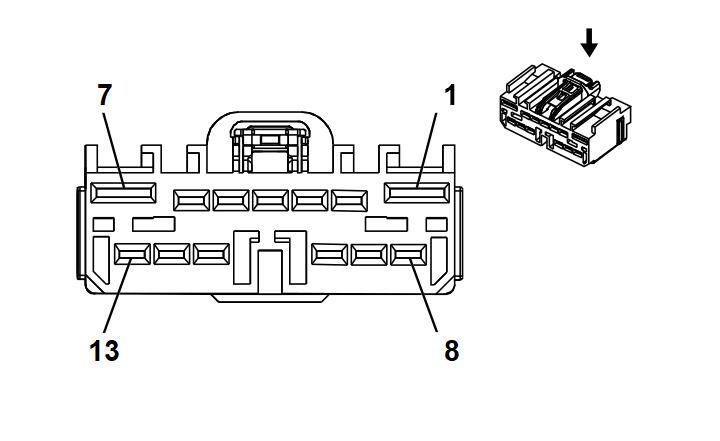

Connector Part Information Harness Type: Body OEM Connector: 7283-6569-40 Service Connector: 19301520 Description: 13-Way F 2.8, 6.3 Series (L-GY)	Connector Part Information Harness Type: Driver Seat OEM Connector: 7282-6569-40 Service Connector: Service by Harness - See Part Catalog Description: 13-Way M 2.8, 6.3 Series (L-GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575835	J-35616-42 (RD)	J-38125-11A	7116-4122-02	Yazaki 10	A	B
II	13575838	J-35616-35 (VT)	J-38125-11A	7116-4110-02	Yazaki 9	E	C
III	13575838	J-35616-35 (VT)	J-38125-11A	7116-4111-02	Yazaki 9	E	A
IV	13575838	J-35616-35 (VT)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
V	13575839	J-35616-35 (VT)	J-38125-11A	7116-4112-02	Yazaki 9	C	D
VI	Not Required	J-35616-43 (RD)	Not Required	Not Required	Not Required	Not Required	Not Required
VII	Not Required	J-35616-5 (PU)	Not Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	3	RD/WH	1140	I	AG3/AH5/A45	Battery Positive Voltage	1	3	RD/WH	1140	VI	-
2	2	RD/WH	640	V	-	Battery Positive Voltage	2	2	RD/WH	640	VII	-
3	0.35	D-GN	5016	II	-	Driver Seat Belt Switch Signal	3	0.35	D-GN	5016	VII	-
4	0.35	D-GN	5060	II	A45/KA1	Low Speed GMLAN Serial Data	4	0.35	D-GN	5060	VII	-
5	0.35	PK	5057	II	-	Seat Position Switch Low Reference	5	0.35	PK	5057	VII	-
6	0.35 1	VT PK	6174 2111	II IV	KA1-A45 N38	Driver Heated Seat Switch Back LED Control Steering Column Tilt Motor Up Control	6	0.35 1	VT PK	6174 2111	VII VII	KA1-A45 N38
7	3	BK	550	I	AG3/AH5/A45/KA1	Ground	7	3	BK	550	VI	-
8	0.8	D-BU	2479	III	-	Passenger Heated Seat Element Control	8	0.8	D-BU	2479	VII	-
9	2	RD/WH	4040	V	N38	Battery Positive Voltage	9	2	RD/WH	4040	VII	N38
10	0.35	RD/WH	2340	II	A45	Battery Positive Voltage	10	0.35	RD/WH	2340	VII	A45
11	0.35 1	BN BN	6173 2112	II IV	KA1-A45 N38	Driver Heated Seat Switch Back Cushion LED Control Steering Column Tilt Motor Down Control	11	0.35 1	BN BN	6173 2112	VII VII	KA1-A45 N38
12	0.35 1	VT OG	6181 2098	II IV	KA1-A45 N38	Passenger Heated Seat Switch Back LED Control Steering Column Telescope Motor Forward Control	12	0.35 1	VT OG	6181 2098	VII VII	KA1-A45 N38
13	0.35 1	BN TN	6179 2110	II IV	KA1-A45 N38	Passenger Heated Seat Switch Back Cushion LED Control Steering Column Telescope Motor Rearward Control	13	0.35 1	BN TN	6179 2110	VII VII	KA1-A45 N38
