Rear Bumper Impact Bar Replacement (Acadia, Enclave, Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

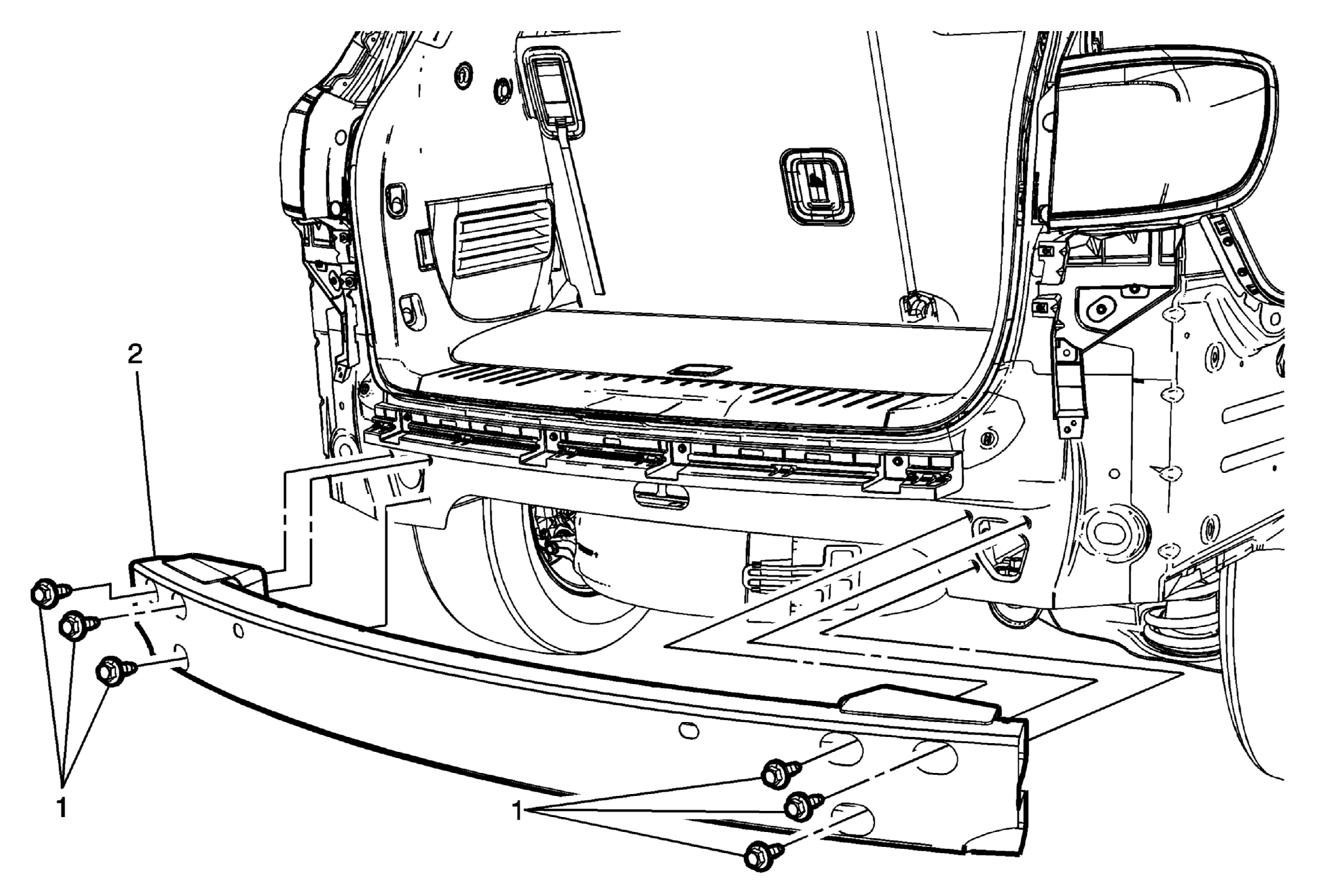

Fig 1: Rear Bumper Impact Bar (Acadia, Enclave, Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Acadia) Rear Bumper Fascia Replacement (Enclave) Rear Bumper Fascia Replacement (Traverse) . Remove the trailer hitch bolts to the rear bumper impact bar, if equiped. Refer to Trailer Hitch Replacement .
1	Rear Bumper Impact Bar Bolt (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Rear Bumper Impact Bar

Callout

Component Name

Preliminary Procedures

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Acadia) Rear Bumper Fascia Replacement (Enclave) Rear Bumper Fascia Replacement (Traverse) .
Remove the trailer hitch bolts to the rear bumper impact bar, if equiped. Refer to Trailer Hitch Replacement .

Rear Bumper Impact Bar Bolt (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
50 N.m (37 lb ft)

Rear Bumper Impact Bar
