Rear Bumper Fascia Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

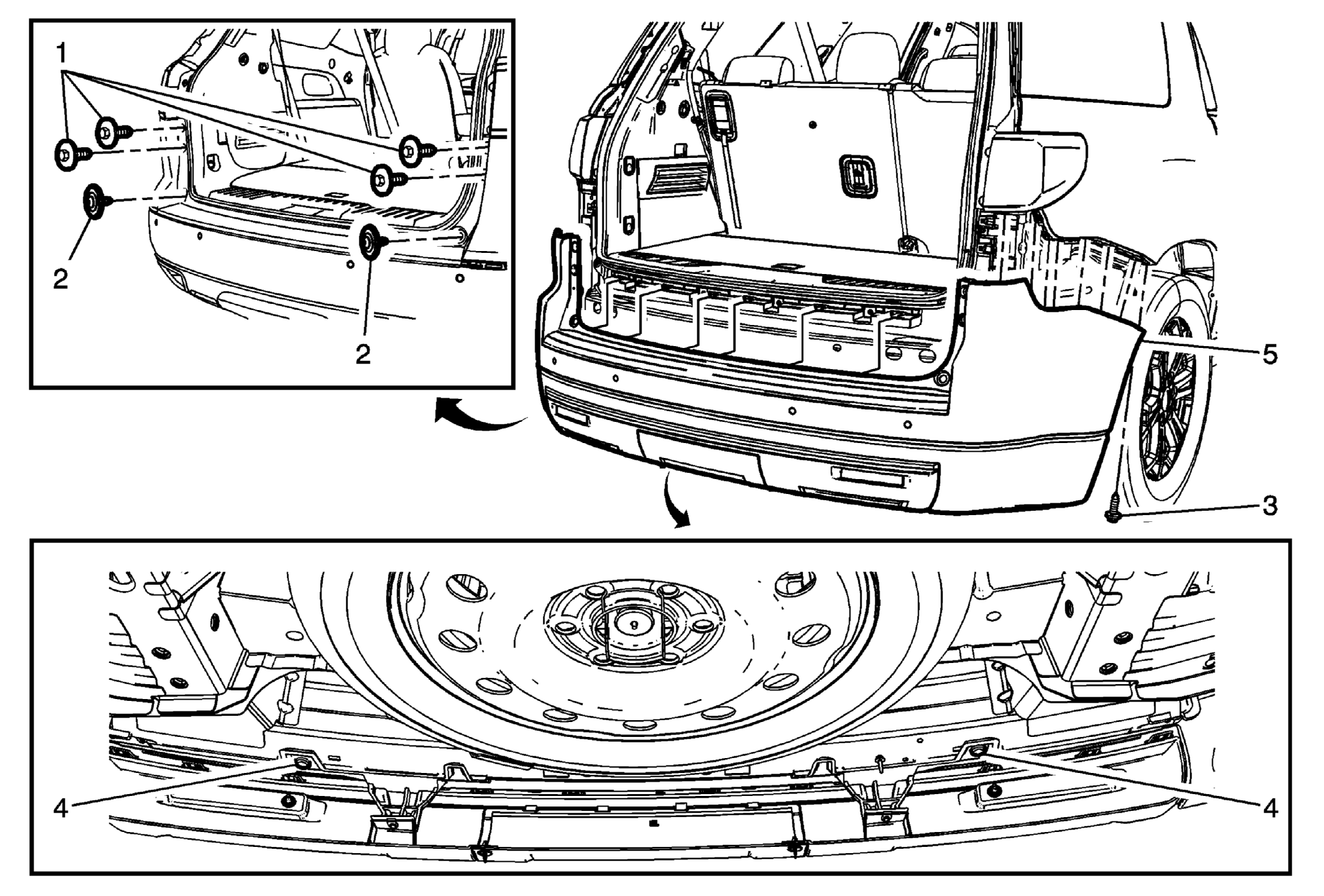

Fig 1: Rear Bumper Fascia (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the right and left rear wheelhouse. Refer to Rear Wheelhouse Liner Replacement (Acadia) .
1	Rear Fascia Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Rear Fascia Bolt (Qty: 2)
3	Rear Fascia Hex Screw (Qty: 2)
4	Rear Bumper Fascia Push-in Retainer (Qty: 2)
5	Rear Fascia Procedure Carefully push a small nylon wedge between the fascia and the side and rear retainer supports. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia from the vehicle. Disconnect the electrical connectors/harnesses as needed. Transfer any parts as needed.
