Rear Bumper Fascia Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

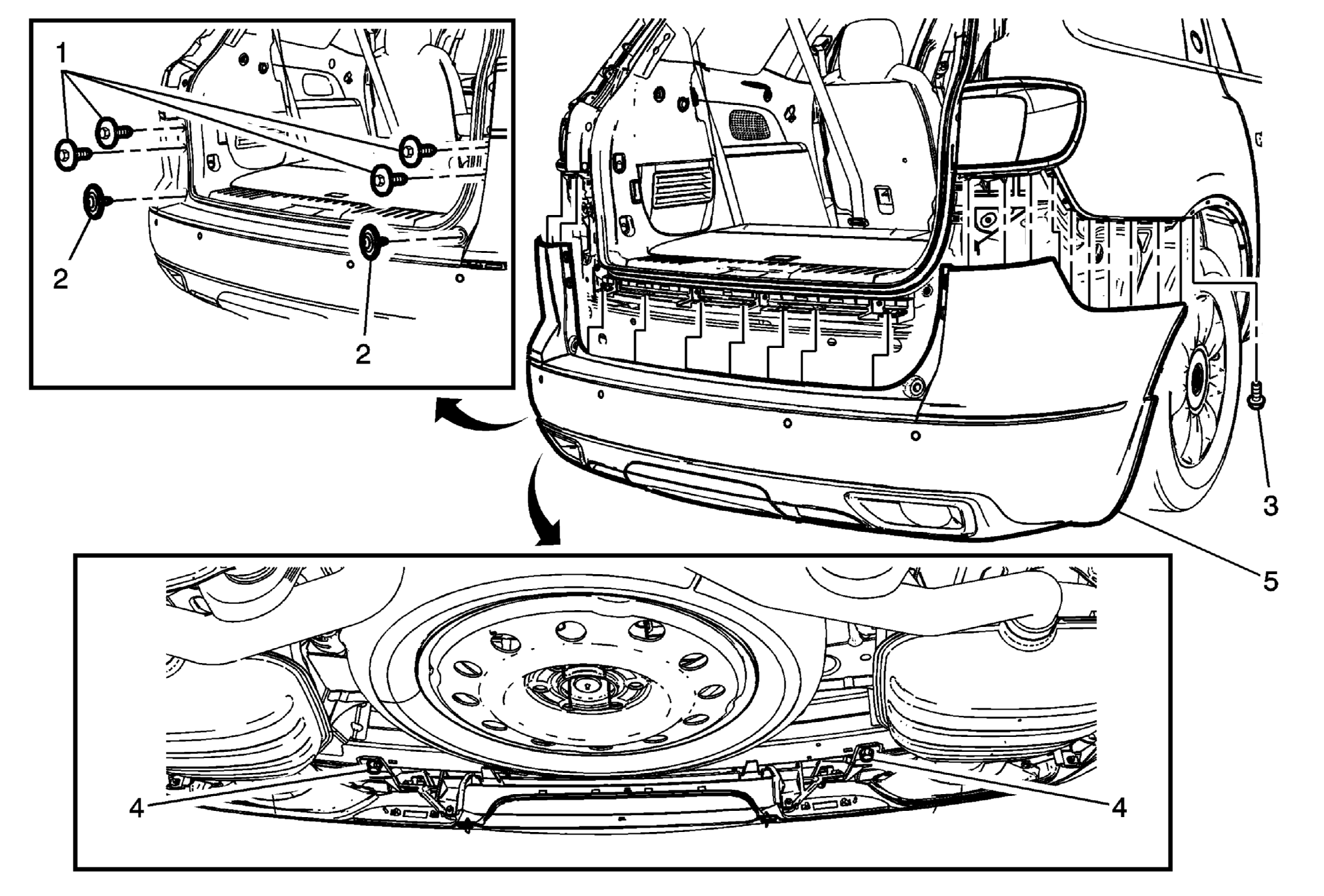

Fig 1: Rear Bumper Fascia (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wheel opening molding. Refer to Rear Wheel Opening Molding Replacement (Enclave) . Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement (Enclave) .
1	Rear Bumper Fascia Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Rear Bumper Fascia Screw (Qty: 2)
3	Rear Bumper Fascia Bolt (Qty: 2)
4	Rear Bumper Fascia Lower Push-In Retainer (Qty: 2)
5	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide. Disconnect the electrical connector. Transfer parts as needed.
