Hood Hinge Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

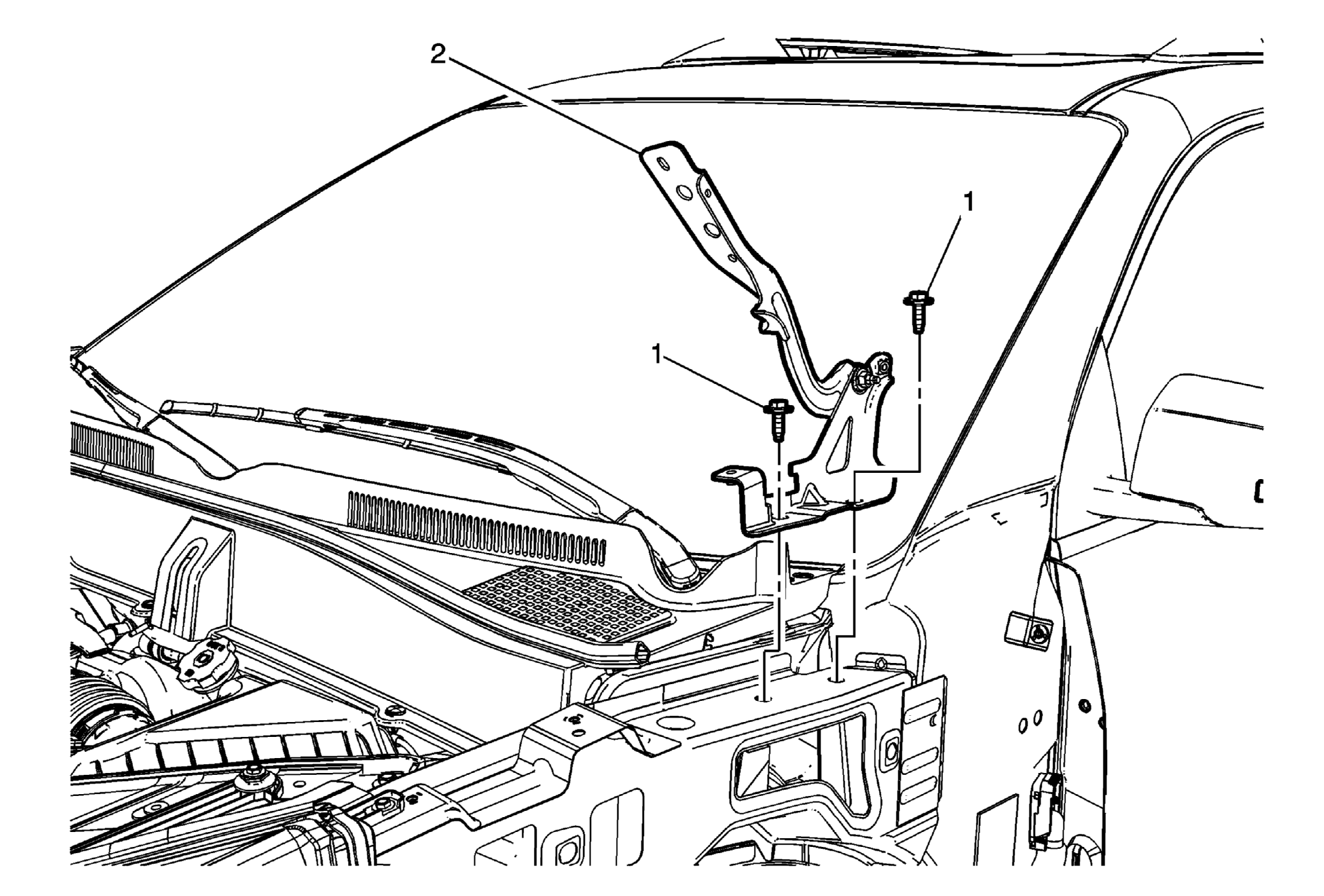

Fig 1: Hood Hinge (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement (Acadia) . Remove the right or left fender. Refer to Front Fender Replacement (Acadia) .
1	Hood Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (19 lb ft)
2	Hood Hinge Procedure Adjust the hood hinge if needed. Refer to Hood Adjustment (Acadia) .

Callout

Component Name

Preliminary Procedures

Remove the hood. Refer to Hood Replacement (Acadia) .
Remove the right or left fender. Refer to Front Fender Replacement (Acadia) .

Hood Hinge Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
25 N.m (19 lb ft)

Hood Hinge
Procedure
Adjust the hood hinge if needed. Refer to Hood Adjustment (Acadia) .
