Front Fender Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

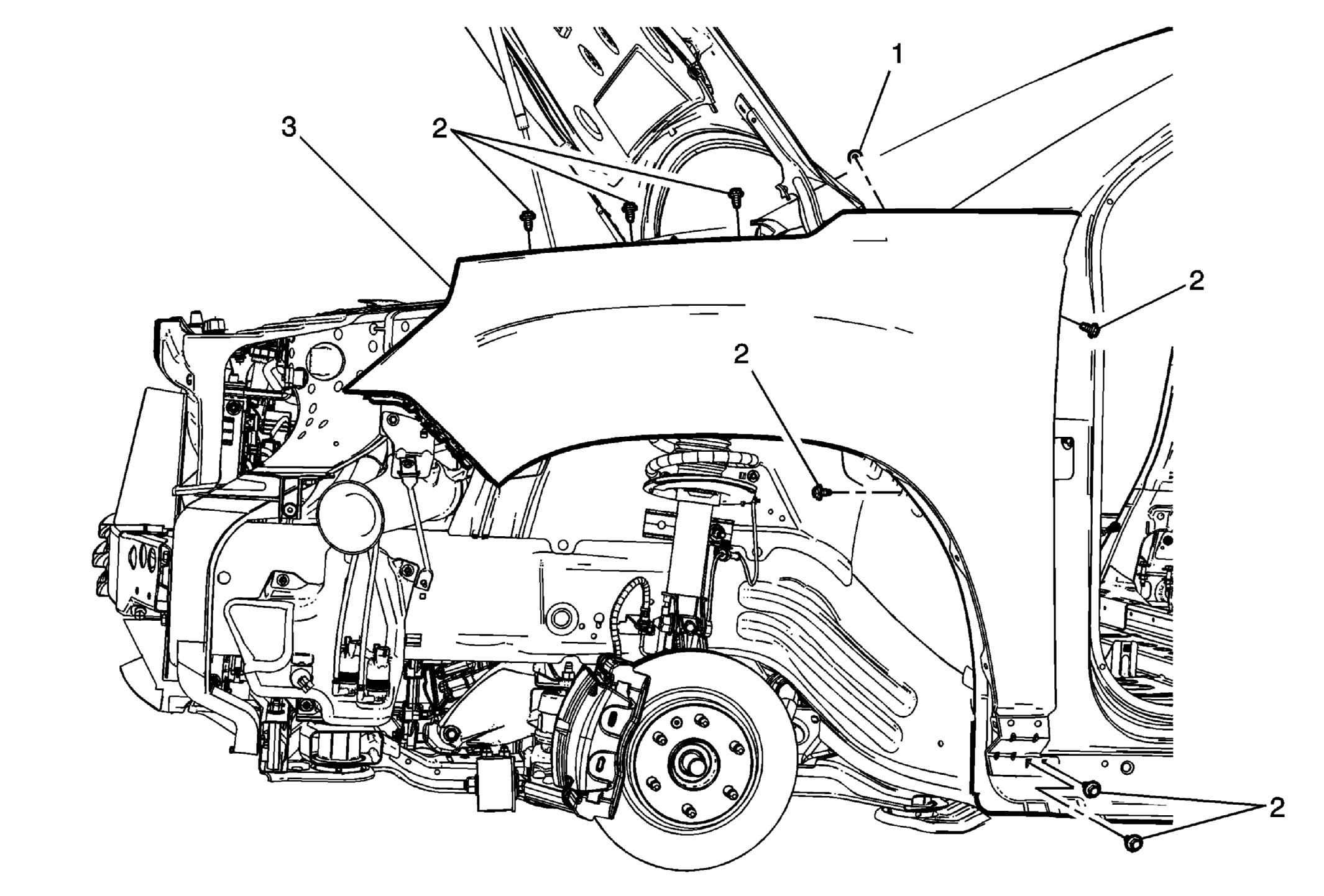

Fig 1: Front Fender (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) . Remove the front wheelhouse rear liner. Refer to Front Wheelhouse Rear Liner Replacement (Acadia, Enclave, Traverse) . Remove the headlamp assembly. Refer to Headlamp Replacement (Acadia) . Remove the rocker panel molding. Refer to Rocker Panel Front Molding Replacement (Acadia) . Remove the air inlet grille panel extension. Refer to Air Inlet Grille Panel Extension Replacement
1	Front Fender Upper Bolt CAUTION: Refer to Fastener Caution .
2	Front Fender Bracket Bolt (Qty: 7) Tighten 10 N.m (89 lb in)
3	Front Fender
