Hood Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

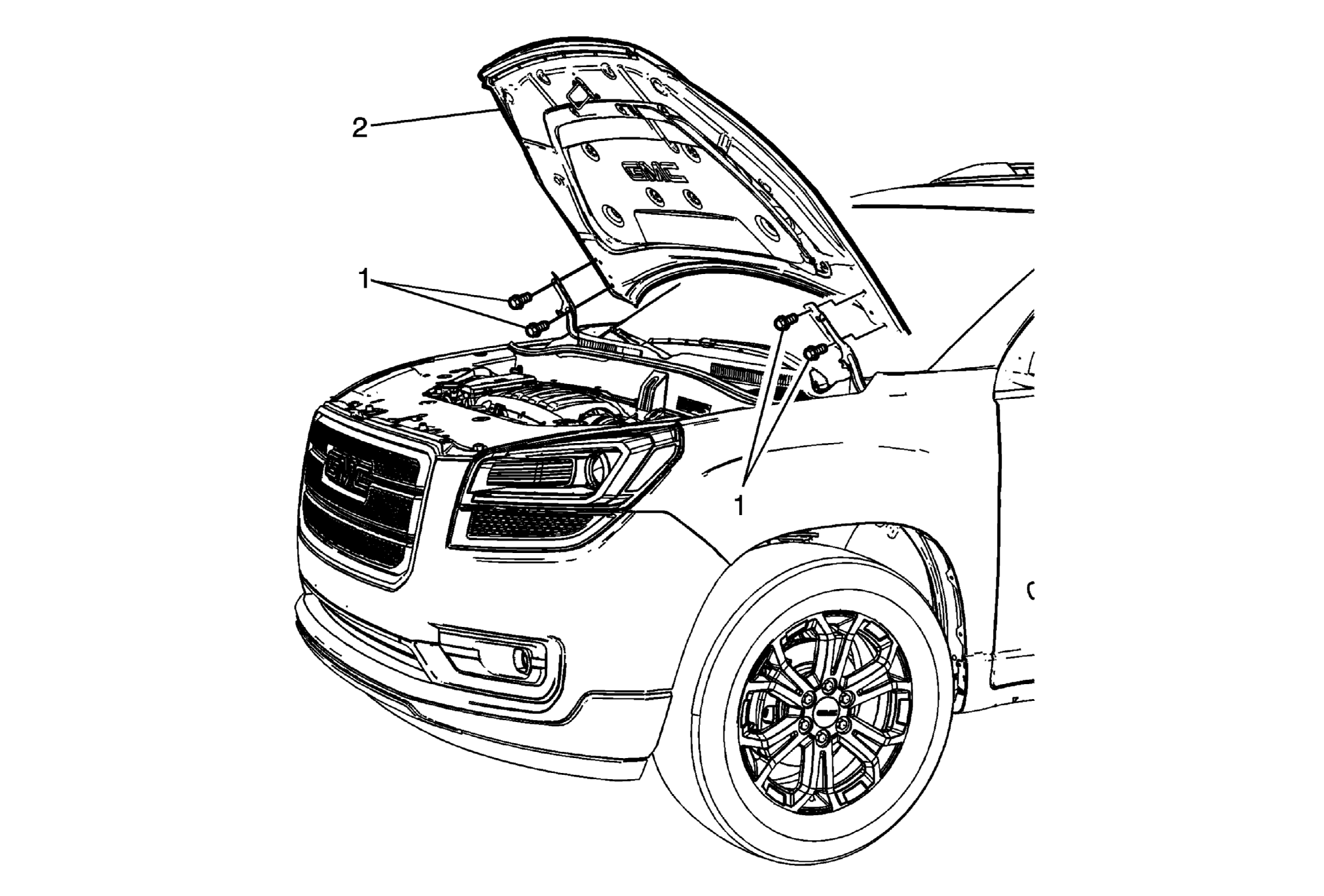

Fig 1: Hood (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the windshield washer hose. Refer to Windshield Washer Hose Replacement (Acadia) . Remove the hood strut rod..
1	Hood Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Mark the location of the hinge to the hood with a grease pencil to aid in alignment. Tighten 22 N.m (16 lb ft)
2	Hood Procedure Adjust the hood if necessary. Refer to Hood Adjustment (Acadia) . Transfer parts as needed.

Callout

Component Name

Preliminary Procedures

Remove the windshield washer hose. Refer to Windshield Washer Hose Replacement (Acadia) .
Remove the hood strut rod..

Hood Hinge Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Procedure
Mark the location of the hinge to the hood with a grease pencil to aid in alignment.
Tighten
22 N.m (16 lb ft)

Hood

Procedure

Adjust the hood if necessary. Refer to Hood Adjustment (Acadia) .
Transfer parts as needed.
