Rear Seat Latch Release Strap Bezel Replacement - Inner

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

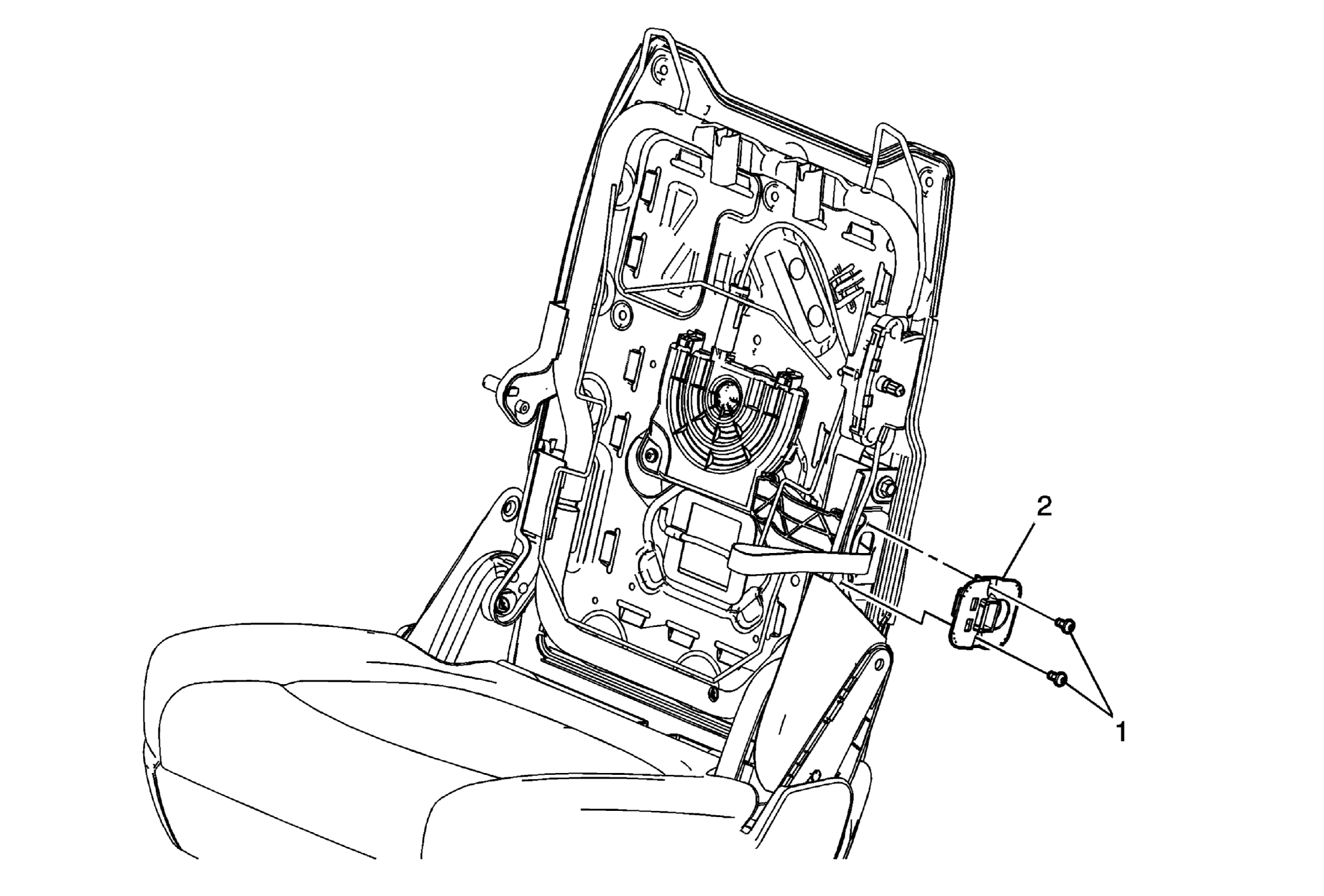

Fig 1: Rear Seat Latch Release Strap Bezel - Inner
GM1850530Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) Rear Seat Removal and Installation (40%) .
  2. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) Rear Seat Back Cushion Cover and Pad Replacement (60%) .
1 Rear Seat Latch Release Handle Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
5 N.m (44 lb in)
2 Rear Seat Back Latch Release Strap Bezel
