Rear Seat Cushion Frame Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

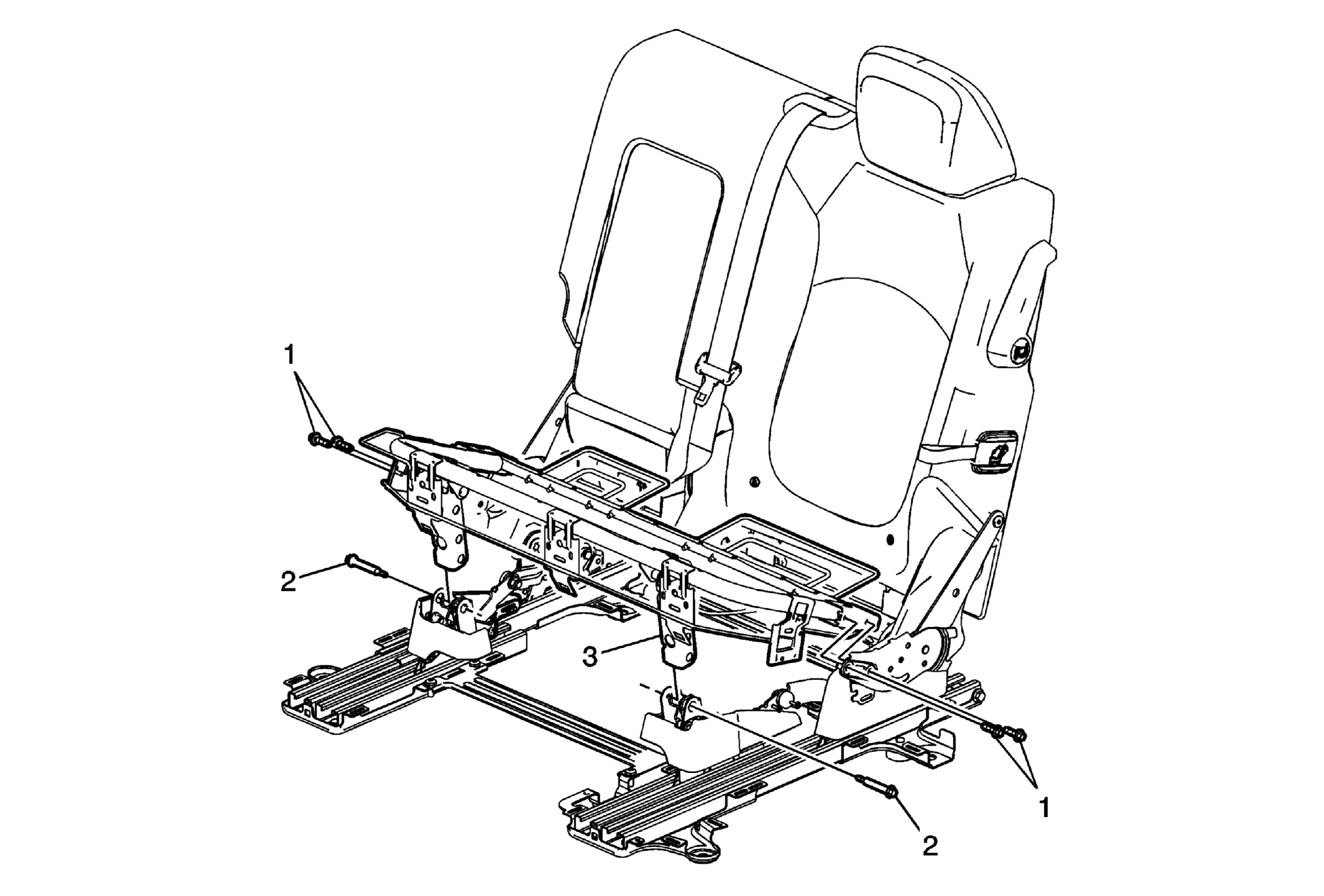

Fig 1: Rear Seat Cushion Frame (With 60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) . Remove the seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (60%) . Remove the rear seat latch cables. Refer to Rear Seat Latch Cable Replacement - Inboard , or Rear Seat Latch Cable Replacement - Outboard .
1	Rear Seat Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 28 N.m (21 lb ft)
2	Rear Seat Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
3	Rear Seat Cushion Frame Assembly
