Rear Seat Latch Cable Replacement - Inboard

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

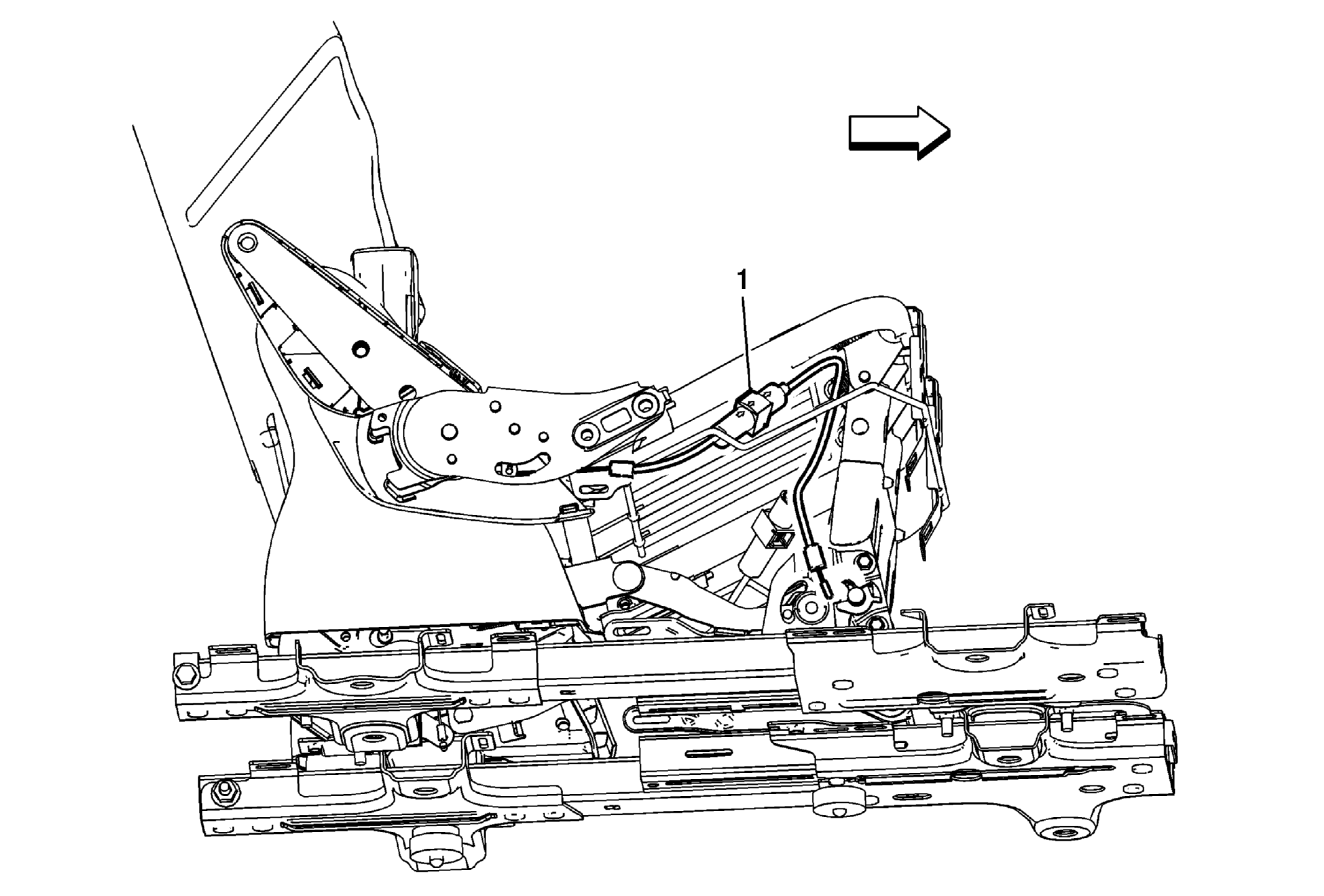

Fig 1: Rear Seat Latch Cable - Inboard

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) Rear Seat Back Cushion Cover and Pad Replacement (60%) .
1	Rear Seat Back Cushion Panel Procedure Note the routing for installation, the inboard cable should be routed over the outboard cable. Cut off the rosebud retainer to remove and always install a new retainer for installation. Disconnect the seat latch cable.

Callout

Component Name

Preliminary Procedures
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40% with Armrest) Rear Seat Back Cushion Cover and Pad Replacement (40% without Armrest) Rear Seat Back Cushion Cover and Pad Replacement (60%) .

Rear Seat Back Cushion Panel

Procedure

Note the routing for installation, the inboard cable should be routed over the outboard cable.
Cut off the rosebud retainer to remove and always install a new retainer for installation.
Disconnect the seat latch cable.
