Rear Seat Back Cushion Latch Cover Replacement - Inner
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

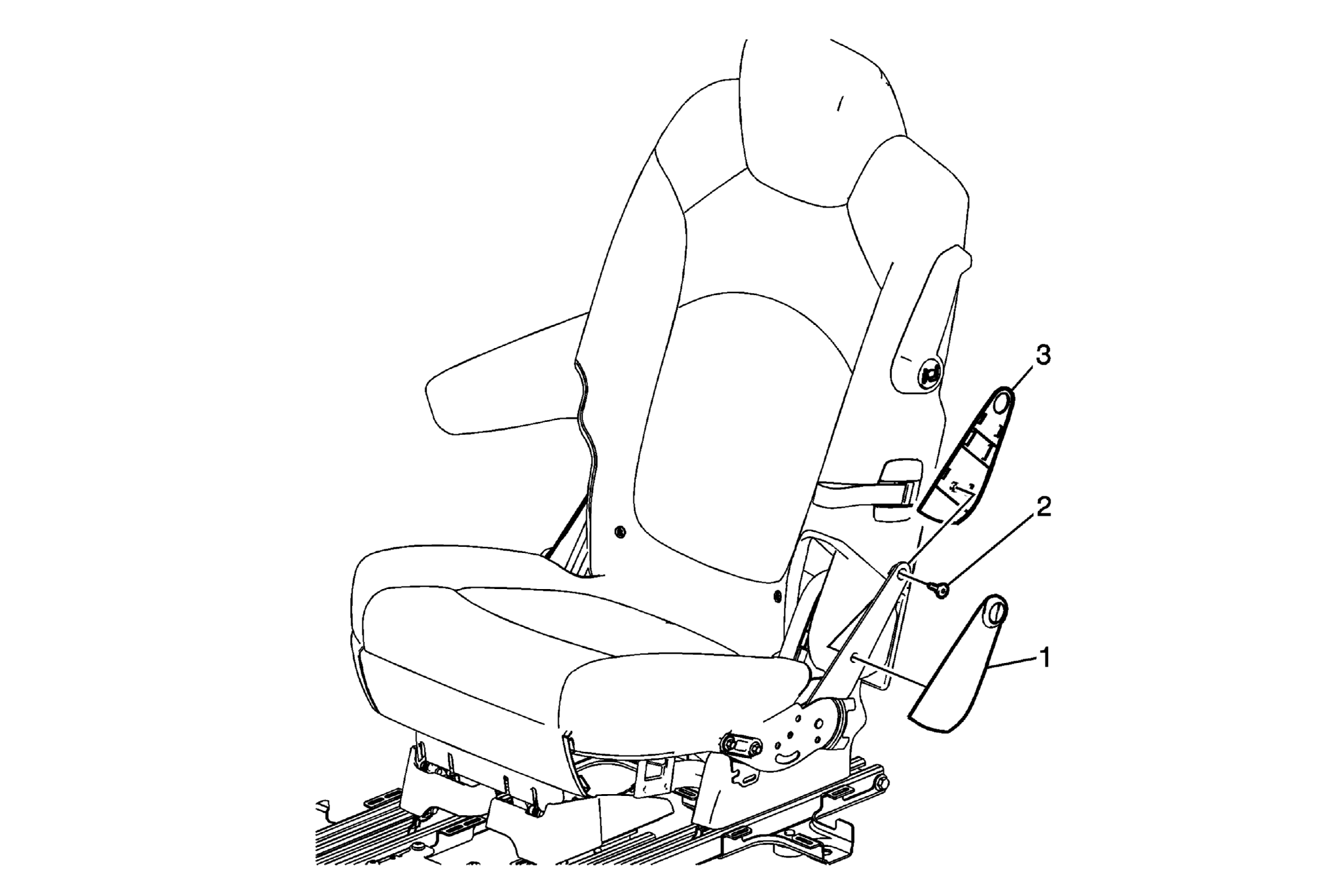

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Back Cushion Latch Cover |
| 2 | Rear Seat Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Rear Seat Back Cushion Latch Cover |
