Rear Seat Adjuster Replacement (60%)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

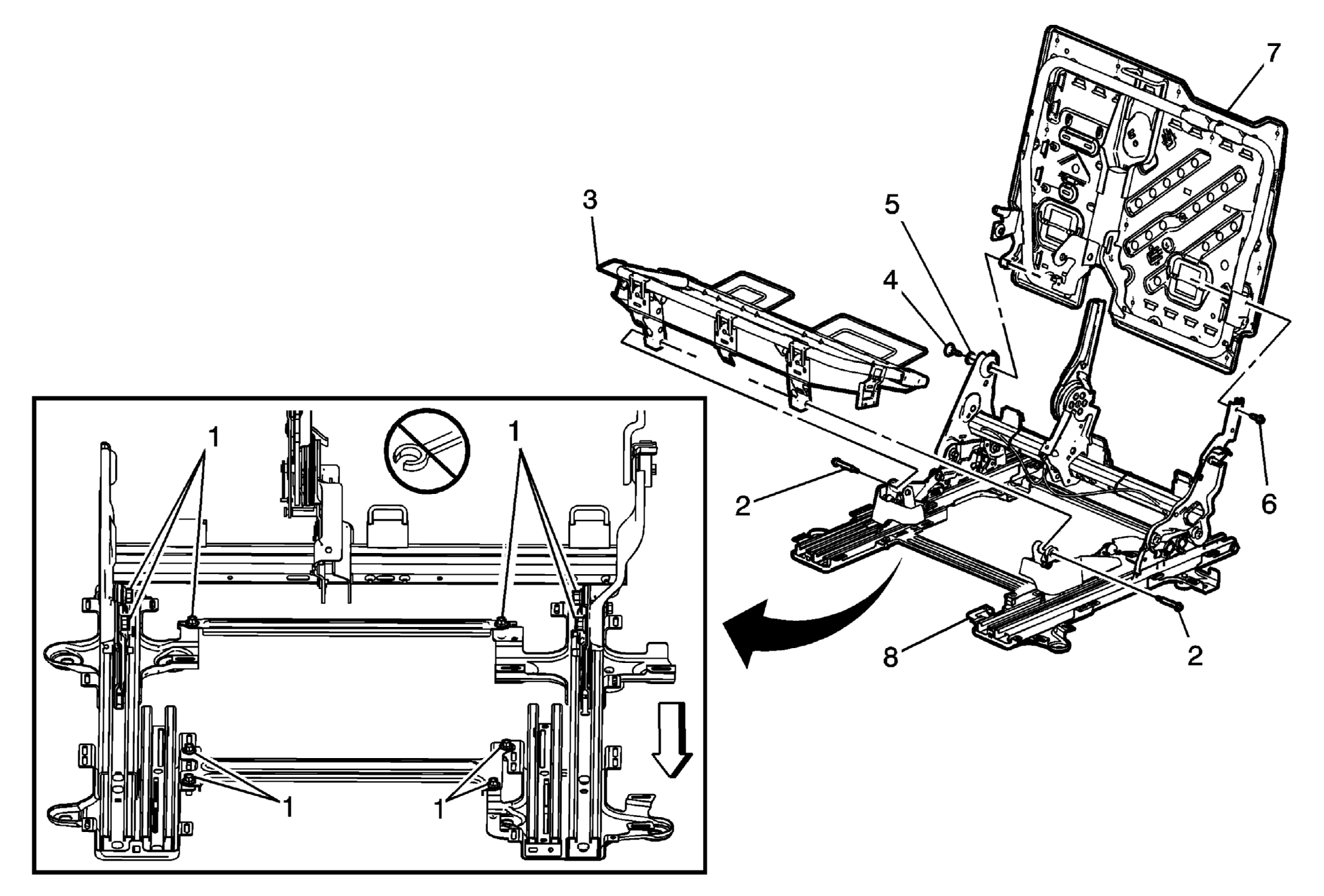

Fig 1: Rear Seat Adjuster (With 60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat. Refer to Rear Seat Removal and Installation (60%) . Remove the rear seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%) . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (60%) .
1	Rear Seat Adjuster Bolt (Qty: 10) WARNING: Do not loosen or remove any of the bolts on the rear seat adjuster. Loosening or removing these bolts will unsynchronize the seat tracks which could cause personal injury.
2	Rear Seat Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Rear Seat Cushion Frame Assembly Refer to Rear Seat Cushion Frame Replacement (60%) .
4	Rear Seat Bolt Tighten 28 N.m (21 lb ft)
5	Rear Seat Bolt Tighten 28 N.m (21 lb ft)
6	Rear Seat Bolt (Qty:2) Tighten 45 N.m (33 lb ft)
7	Rear Seat Back Cushion Frame Assembly Refer to Rear Seat Back Cushion Frame Replacement (60%) .
8	Rear Seat Adjuster Assembly
