Front Seat Back Recliner Inner Trim Panel Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

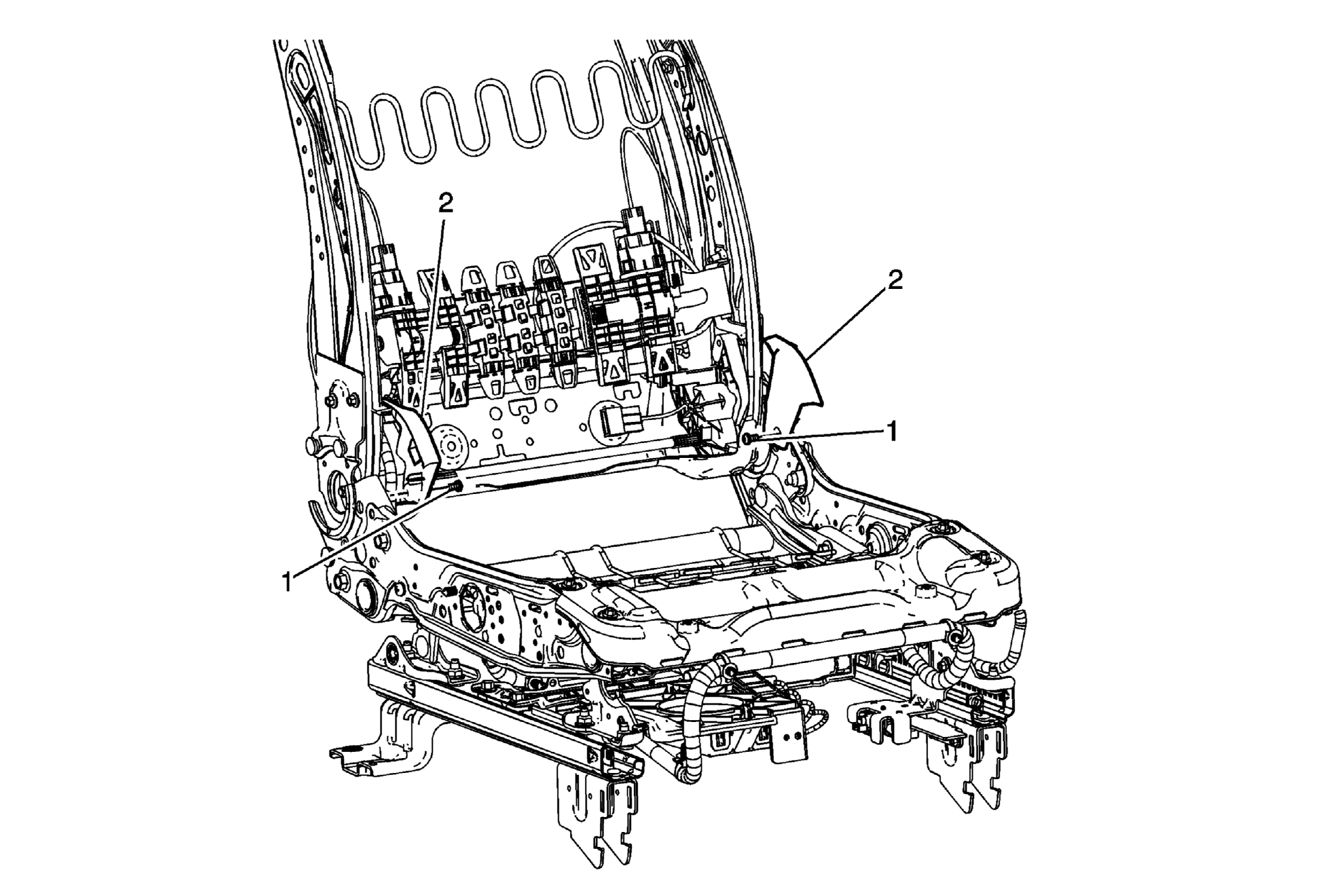

Fig 1: Front Seat Back Recliner Inner Trim Panel
GM1828458Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover and Pad Replacement .
  2. Remove the seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
1 Front Seat Recliner Inner Finish Cover Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Front Seat Recliner Inner Finish Cover (Qty: 2)
