Driver or Passenger Seat Back Cushion Frame Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

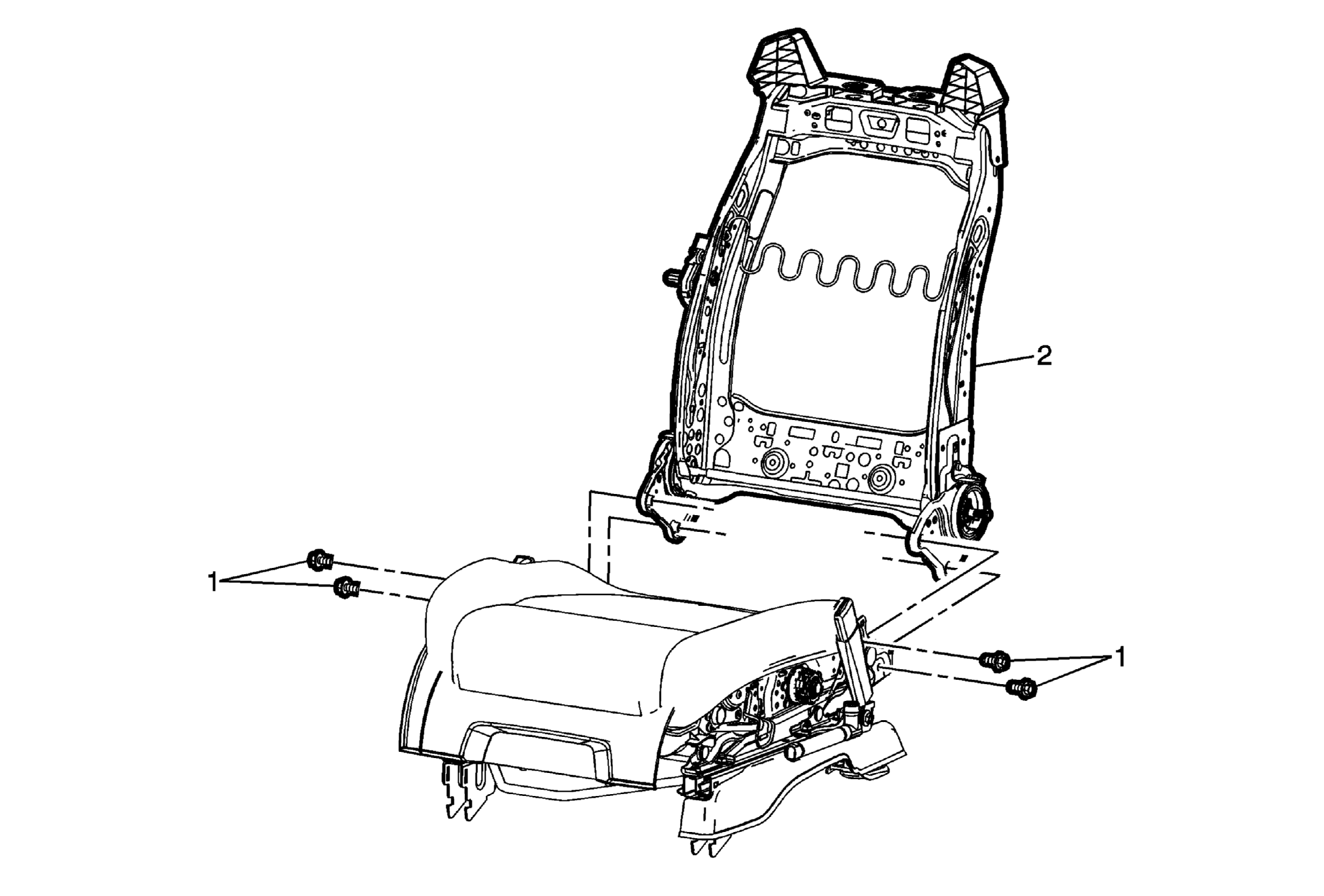

Fig 1: Seat Back Cushion Frame
GM2916024Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Bucket Seat Removal and Installation .
  2. Remove the front seat back recliner outer trim panel. Refer to Front Seat Back Recliner Outer Trim Panel Replacement (Power) Front Seat Back Recliner Outer Trim Panel Replacement (Manual) .
  3. Remove the front seat back recliner inner trim panel. Refer to Front Seat Back Recliner Inner Trim Panel Replacement .
  4. Remove the front seat back cushion cover and pad. Refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
  5. Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement .
  6. Remove the lumbar system. Refer to Driver or Passenger Seat Lumbar Support Replacement .
1 Front Seat Back Cushion Frame Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
2 Front Seat Back Cushion Frame
Procedure
Transfer components as necessary.
