Rear Floor Panel Carpet Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

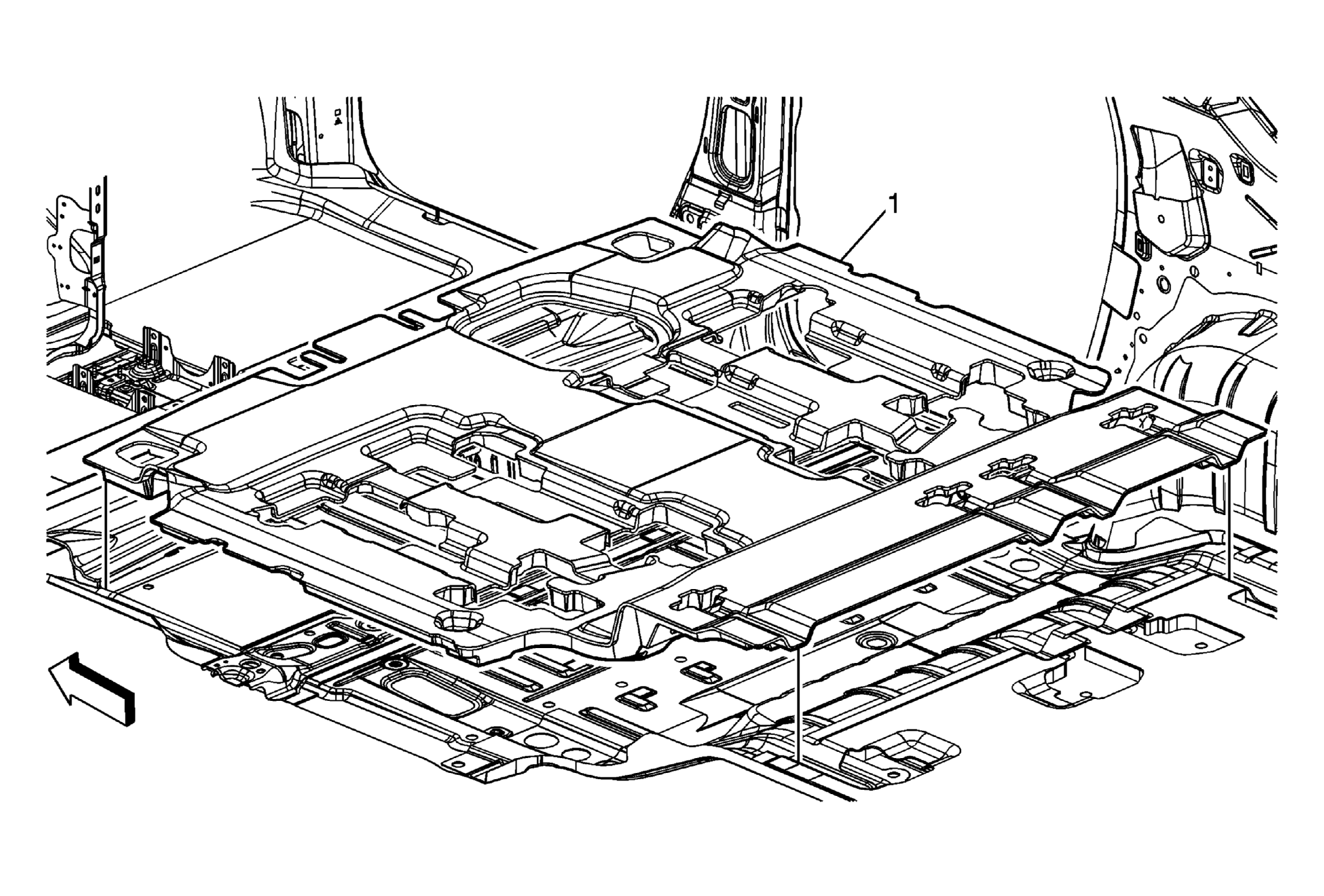

Fig 1: Rear Floor Panel Carpet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to Bucket Seat Removal and Installation . Remove the center pillar lower molding. Refer to Center Pillar Lower Garnish Molding Replacement (Traverse)Center Pillar Lower Garnish Molding Replacement (Acadia or Enclave) Remove the rear seats. Refer to Rear Seat Removal and Installation (60%)Rear Seat Removal and Installation (40%) . Remove the rear number 2 seats. Refer to 3rd Row Seat Removal and Installation . Remove the rear quarter lower trim. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
1	Rear Floor Panel Carpet Assembly TIP: The front and rear compartment carpet must be installed prior to the rear carpet.

Callout

Component Name

Preliminary Procedures

Remove the front seats. Refer to Bucket Seat Removal and Installation .
Remove the center pillar lower molding. Refer to Center Pillar Lower Garnish Molding Replacement (Traverse)Center Pillar Lower Garnish Molding Replacement (Acadia or Enclave)
Remove the rear seats. Refer to Rear Seat Removal and Installation (60%)Rear Seat Removal and Installation (40%) .
Remove the rear number 2 seats. Refer to 3rd Row Seat Removal and Installation .
Remove the rear quarter lower trim. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .

Rear Floor Panel Carpet Assembly
TIP: The front and rear compartment carpet must be installed prior to the rear carpet.
