Instrument Panel Carrier Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

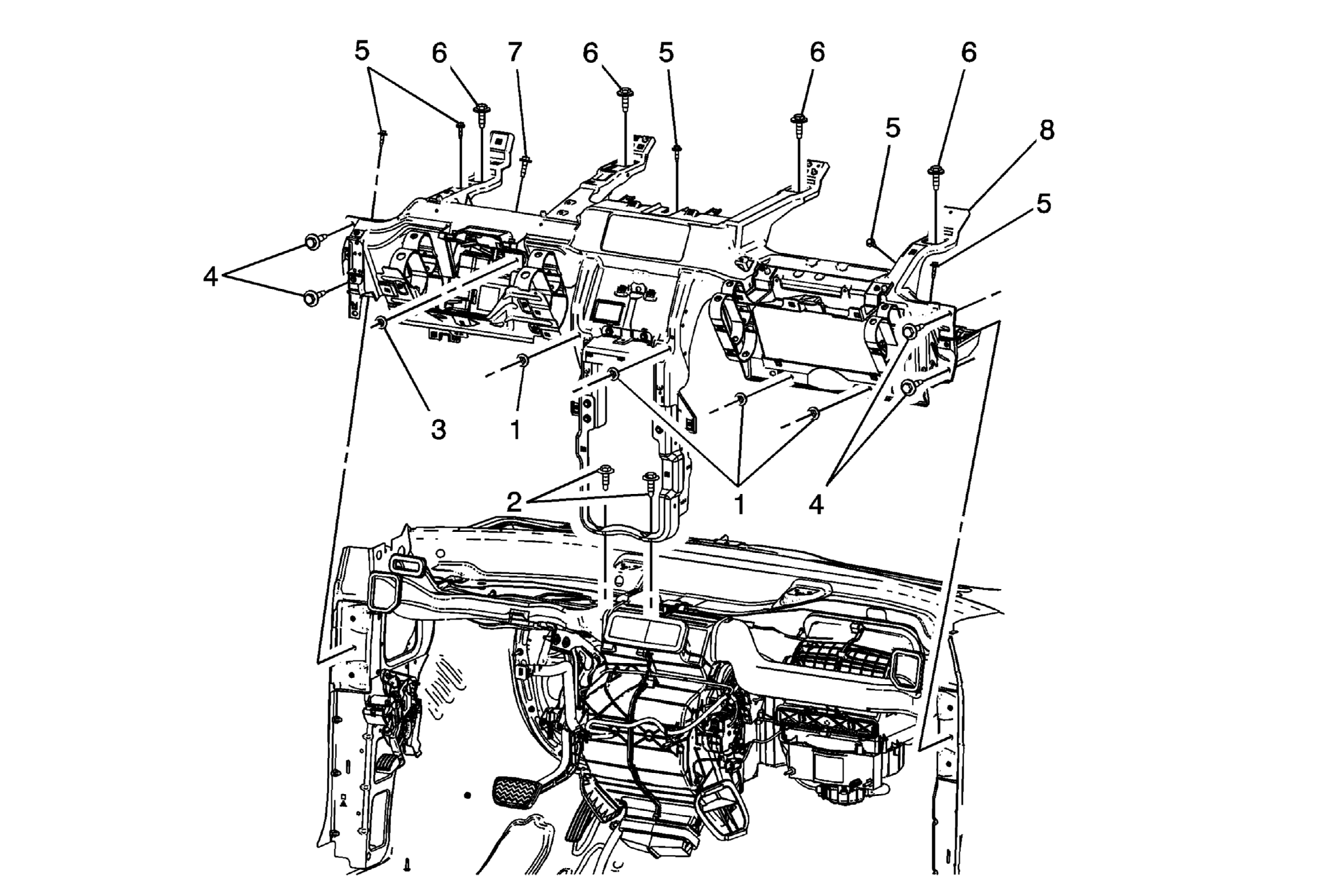

Fig 1: Instrument Panel Carrier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the HUD, if equipped. Refer to Head-Up Display Replacement . Remove the radio front floor console speaker, if equipped. Refer to Radio Front Floor Console Speaker Replacement . Remove the windshield defroster duct. Refer to Windshield Defroster Duct Replacement . Remove the right side window defogger air outlet duct. Refer to Side Window Defogger Outlet Duct Replacement - Right Side . Remove the instrument panel electrical center or junction block. Refer to Instrument Panel Electrical Center or Junction Block Replacement .
1	Heater and Air Conditioning Evaporator and Blower Module Nuts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Instrument Panel Center Support Brace Bolts (Qty: 2) Tighten 22 N.m (16 lb ft)
3	Instrument Panel Nut Tighten 6 N.m (53 lb in)
4	Instrument Carrier Bolts (Qty: 4) Tighten 25 N.m (18 lb ft)
5	Instrument Carrier Bolts (Qty: 5)
6	Instrument Carrier Support Bolts (Qty: 4) Tighten 25 N.m (18 lb ft)
7	Air Distributor Bolt Tighten 9 N.m (80 lb in)
8	Instrument Panel Carrier NOTE: Prior to removing the carrier assembly, note the routing of the wiring to ensure proper reinstallation. Procedure Disconnect all electrical connections. Prior to removing the carrier assembly, support the HVAC module. With the aid of an assistant, remove the carrier assembly from the vehicle. When replacing the carrier assembly, transfer all necessary components.
