Instrument Panel Electrical Center or Junction Block Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

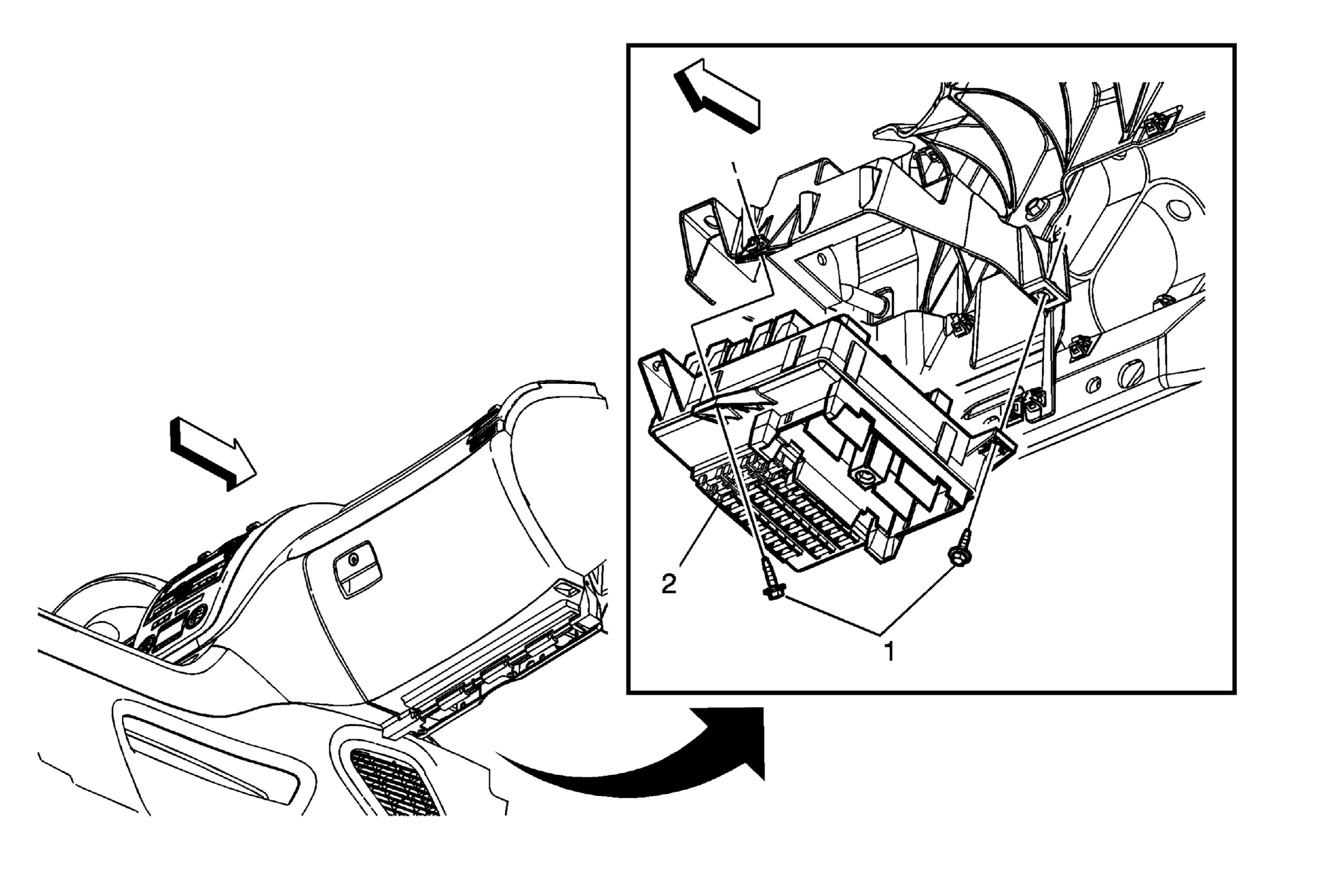

Fig 1: Instrument Panel Electrical Center or Junction Block

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection . Remove the right side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side . Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Acadia)Instrument Panel Compartment Replacement (Enclave)Instrument Panel Compartment Replacement (Traverse) . Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .
1	Instrument Panel Electrical Center Bracket Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Electrical Center Assembly Procedure Remove the bolt securing the body wiring harness connector to the instrument panel electrical center. Disconnect the electrical connections. When installing the body wiring harness connector to the instrument panel electrical center, tighten the bolt until an audible clicking noise is heard.

Callout

Component Name

Preliminary Procedure

Disconnect the battery. Refer to Battery Negative Cable Disconnection and Connection .
Remove the right side instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Right Side .
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement (Acadia)Instrument Panel Compartment Replacement (Enclave)Instrument Panel Compartment Replacement (Traverse) .
Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement .

Instrument Panel Electrical Center Bracket Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Electrical Center Assembly

Procedure

Remove the bolt securing the body wiring harness connector to the instrument panel electrical center.
Disconnect the electrical connections.
When installing the body wiring harness connector to the instrument panel electrical center, tighten the bolt until an audible clicking noise is heard.
