Front Floor Console Carrier Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

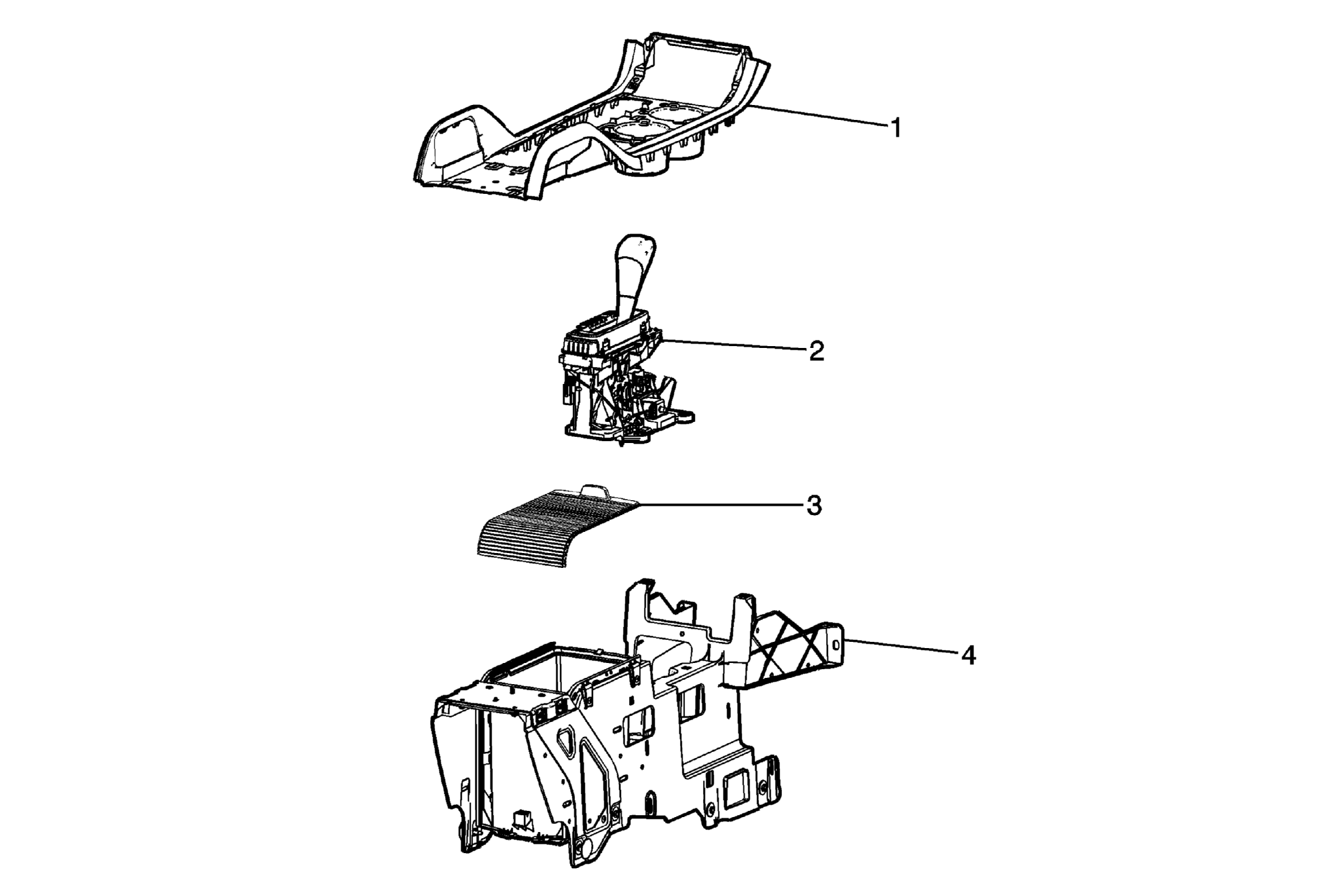

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console assembly from the vehicle. Refer to Front Floor Console Replacement (Acadia) Front Floor Console Replacement (Enclave) Front Floor Console Replacement (Traverse) . |
|
| 1 | Front Floor Console Cover Refer to Front Floor Console Cover Replacement . |
| 2 | Transmission Control Assembly Refer to Transmission Control Replacement (With Base)Transmission Control Replacement (Without Base) . |
| 3 | Front Floor Console Rear Compartment Door Refer to Front Floor Console Rear Compartment Door Replacement . |
| 4 | Front Floor Console Carrier Assembly |
