Front Floor Console Rear Compartment Door Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console cover. Refer to Front Floor Console Cover Replacement . |
|

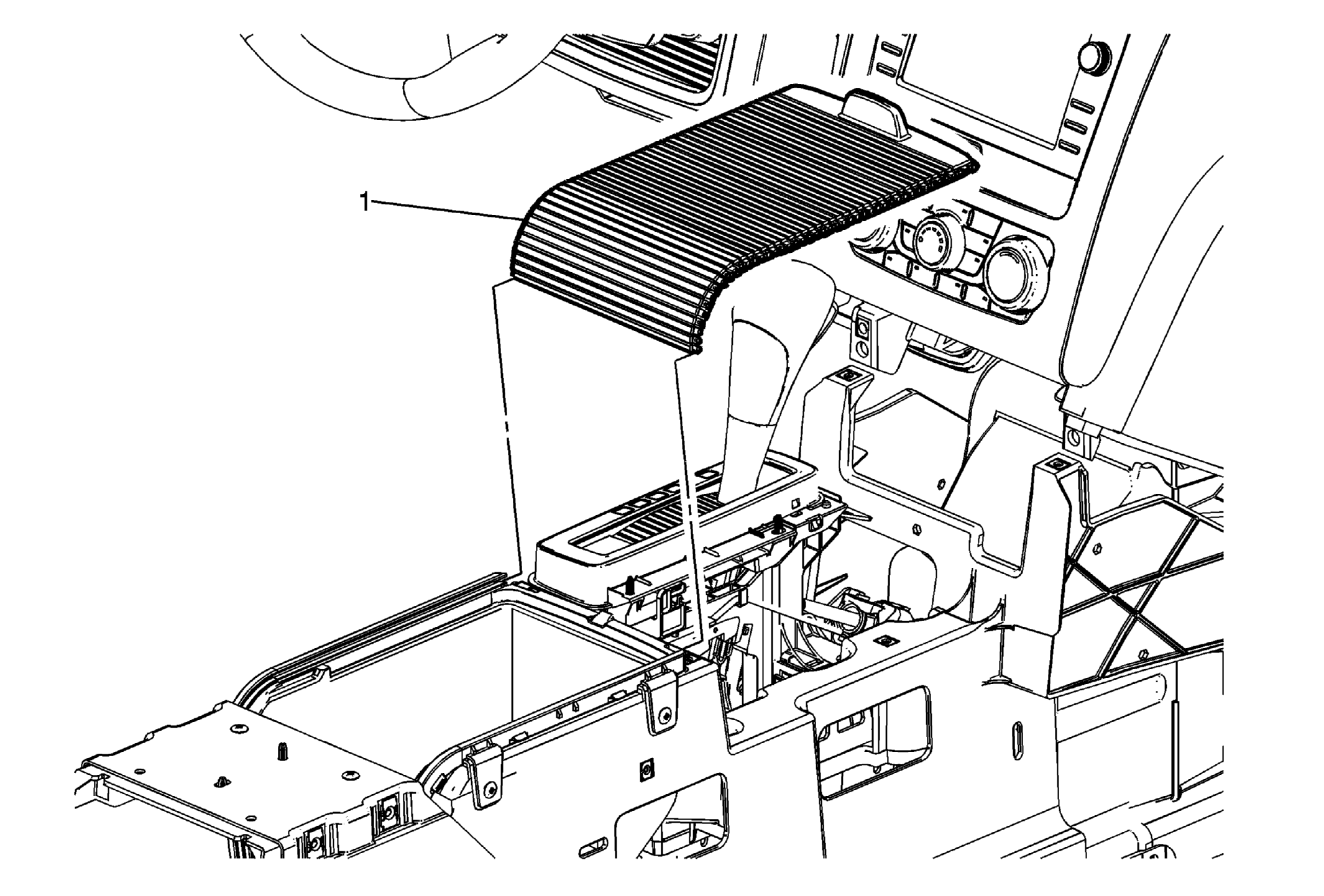

| 1 | Front Floor Console Compartment Door Procedure Slide the compartment door out of the compartment door track. |
