Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

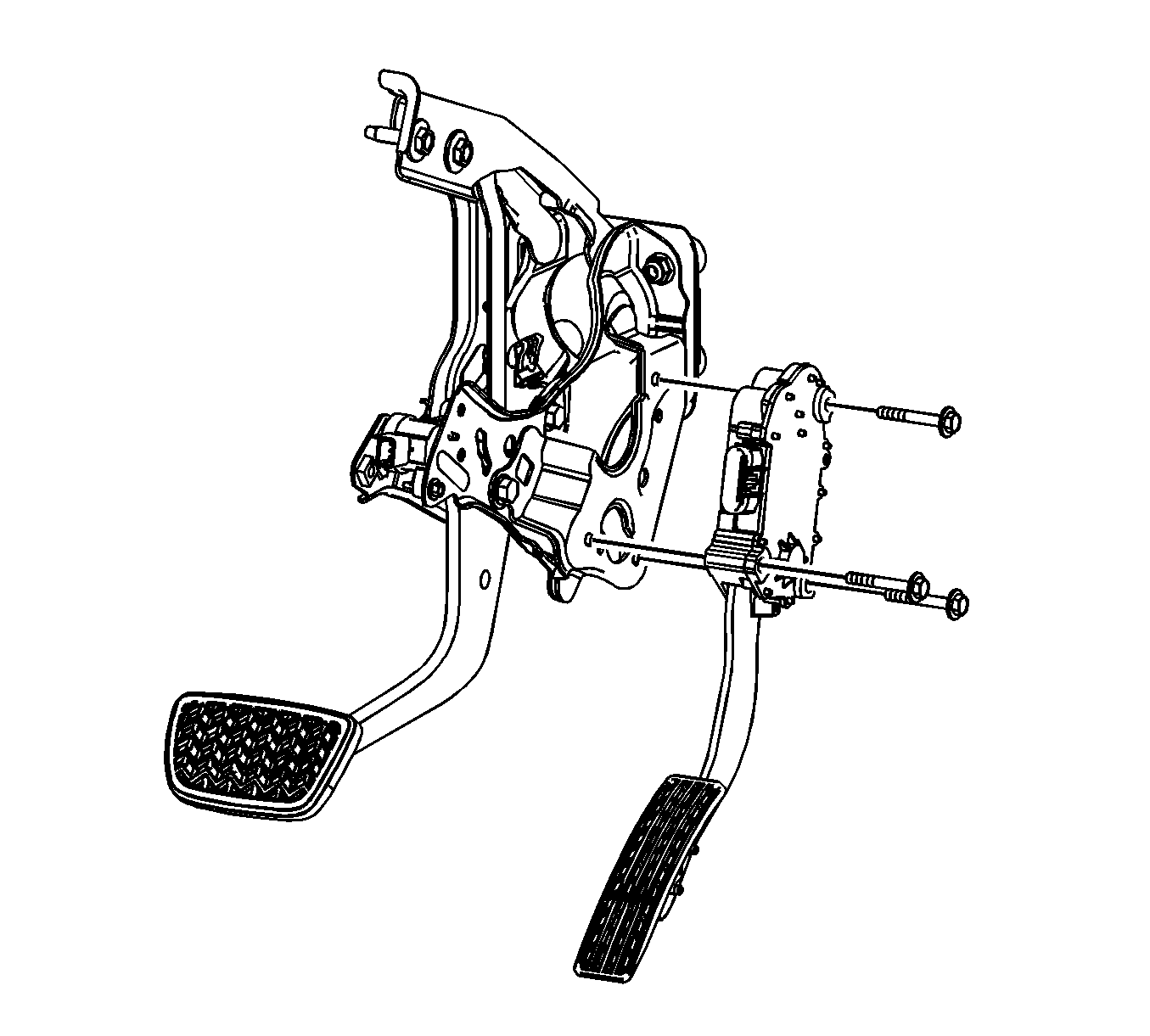

    Fig 1: View Of APP Sensor Bolts & Sensor
    GM1858232Courtesy of GENERAL MOTORS COMPANY
  1. Install the upper bolt into the APP sensor assembly.
  2. Install the APP sensor assembly into the vehicle.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the remaining 2 lower APP sensor assembly bolts.

    Tighten

    Tighten the bolts to 8 N.m (71 lb in).

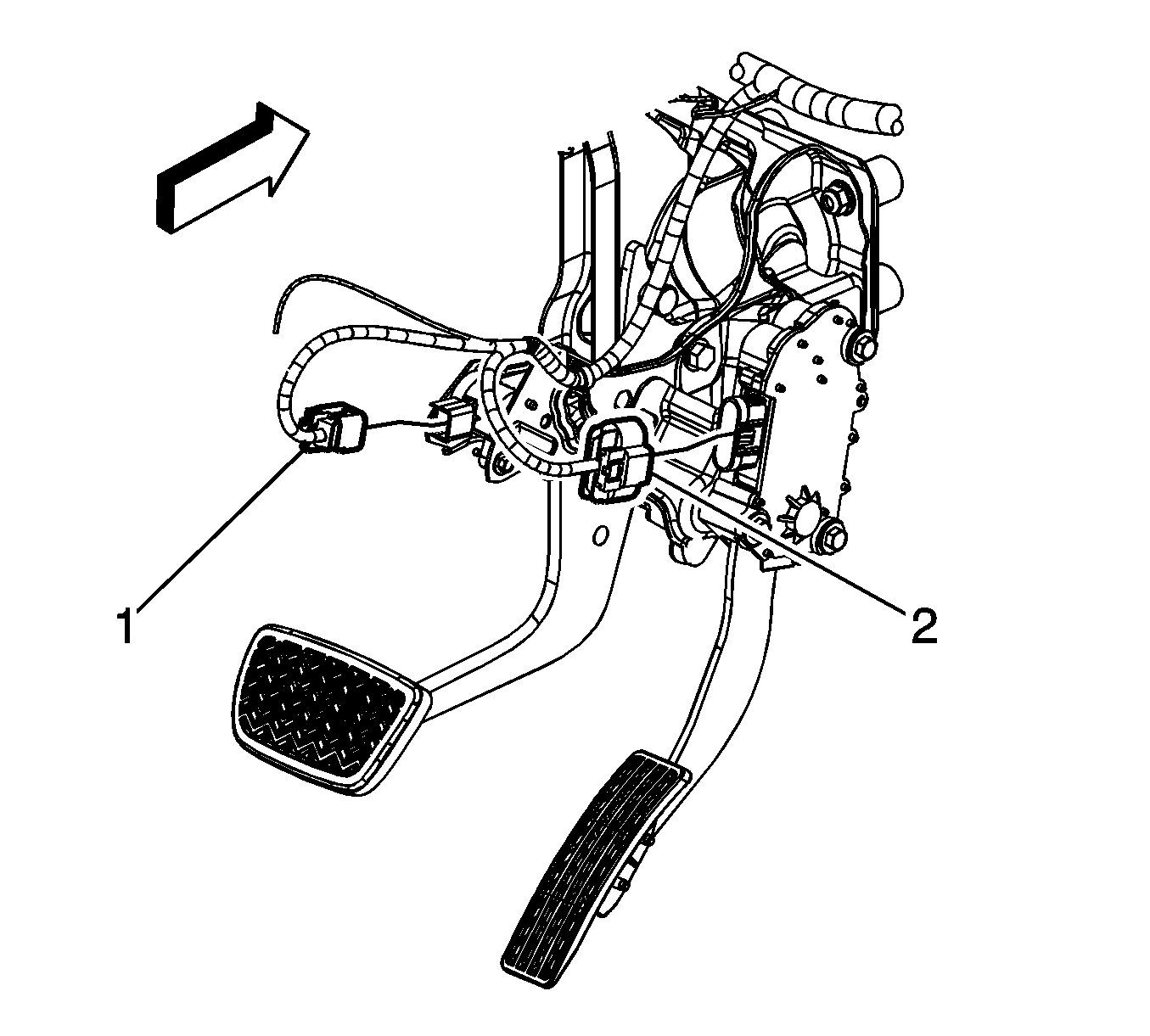

    4. Fig 2: Identifying Accelerator Pedal Position Sensor Assembly
    GM1858231Courtesy of GENERAL MOTORS COMPANY
  4. Install the I/P wiring harness electrical connector (2) to the APP sensor assembly.
  5. Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .
  6. Install the left I/P insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
