Instrument Panel Insulator Panel Replacement - Left Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

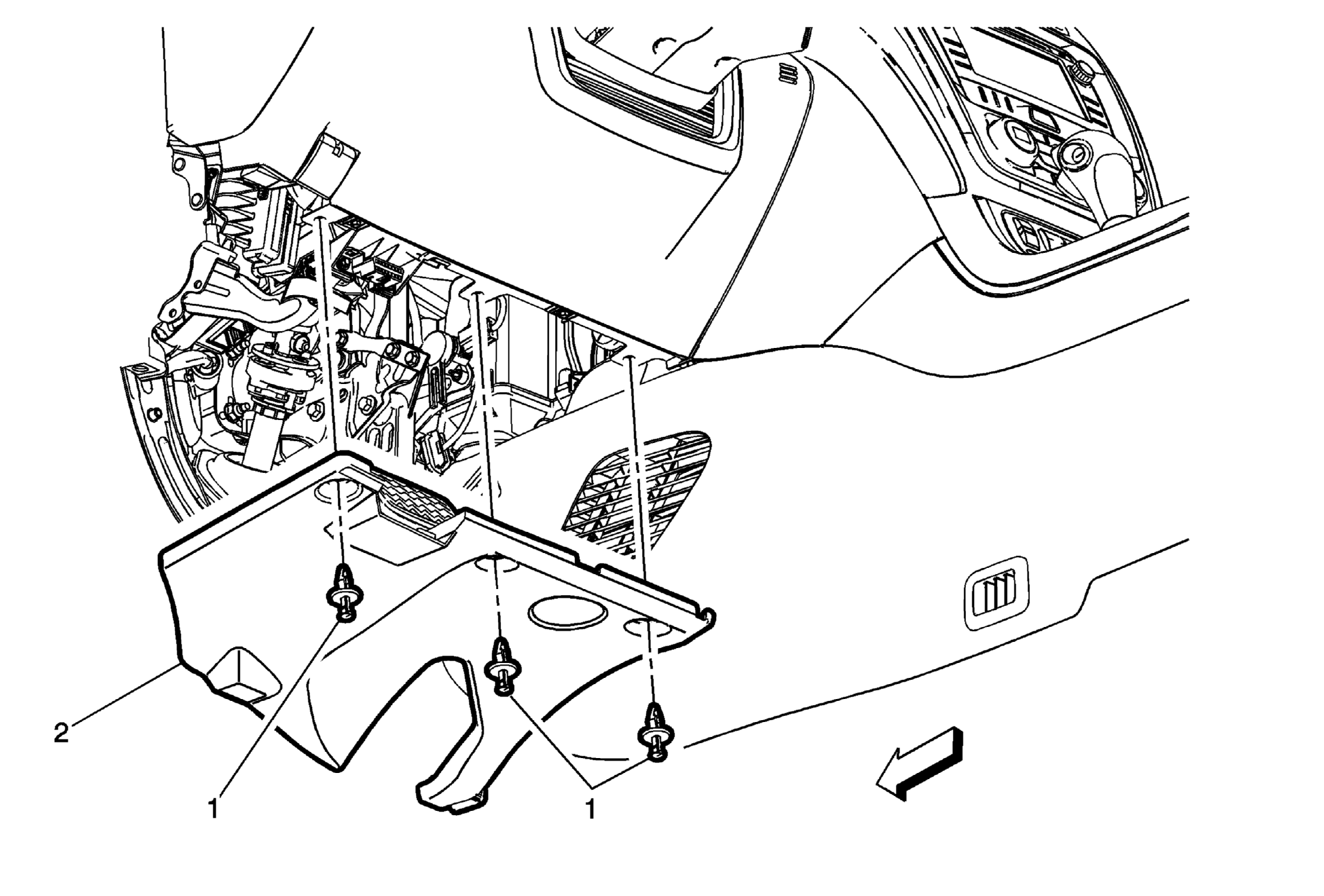

Fig 1: Instrument Panel Insulator Panel - Left Side
GM2866816Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Push-pin Fasteners (Qty: 3)
2 Instrument panel Insulator Panel - Left Side
Procedure
Disconnect the electrical connectors.
