Installation Procedure
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Position the brake pedal assembly to the dash panel.
- Position the vacuum brake booster and master cylinder assembly to the dash panel.

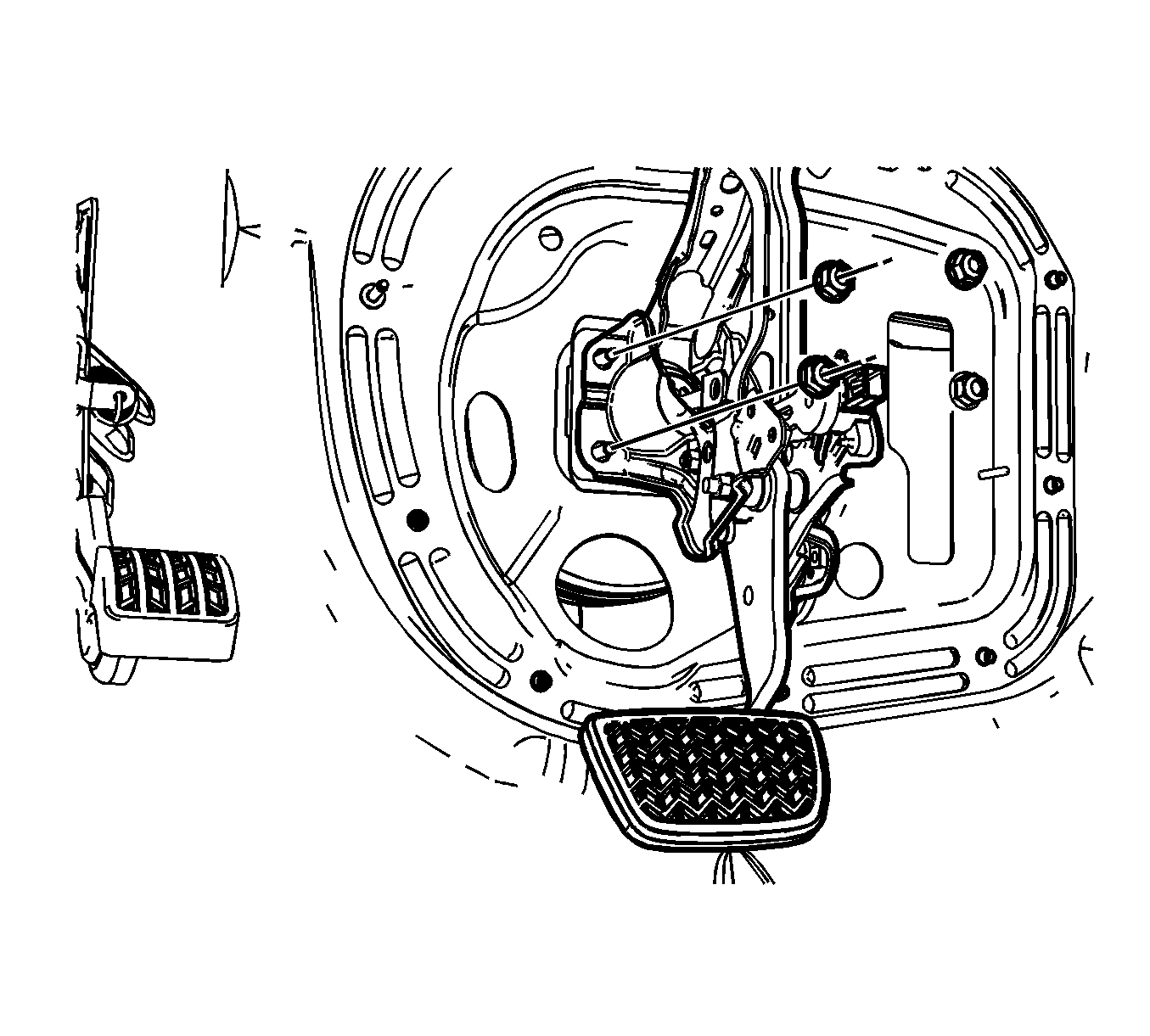

- Install the 4 vacuum booster nuts.
Tighten
Tighten the nuts to 25 N.m (18 lb ft).
- Position the brake pedal pushrod to the brake pedal.

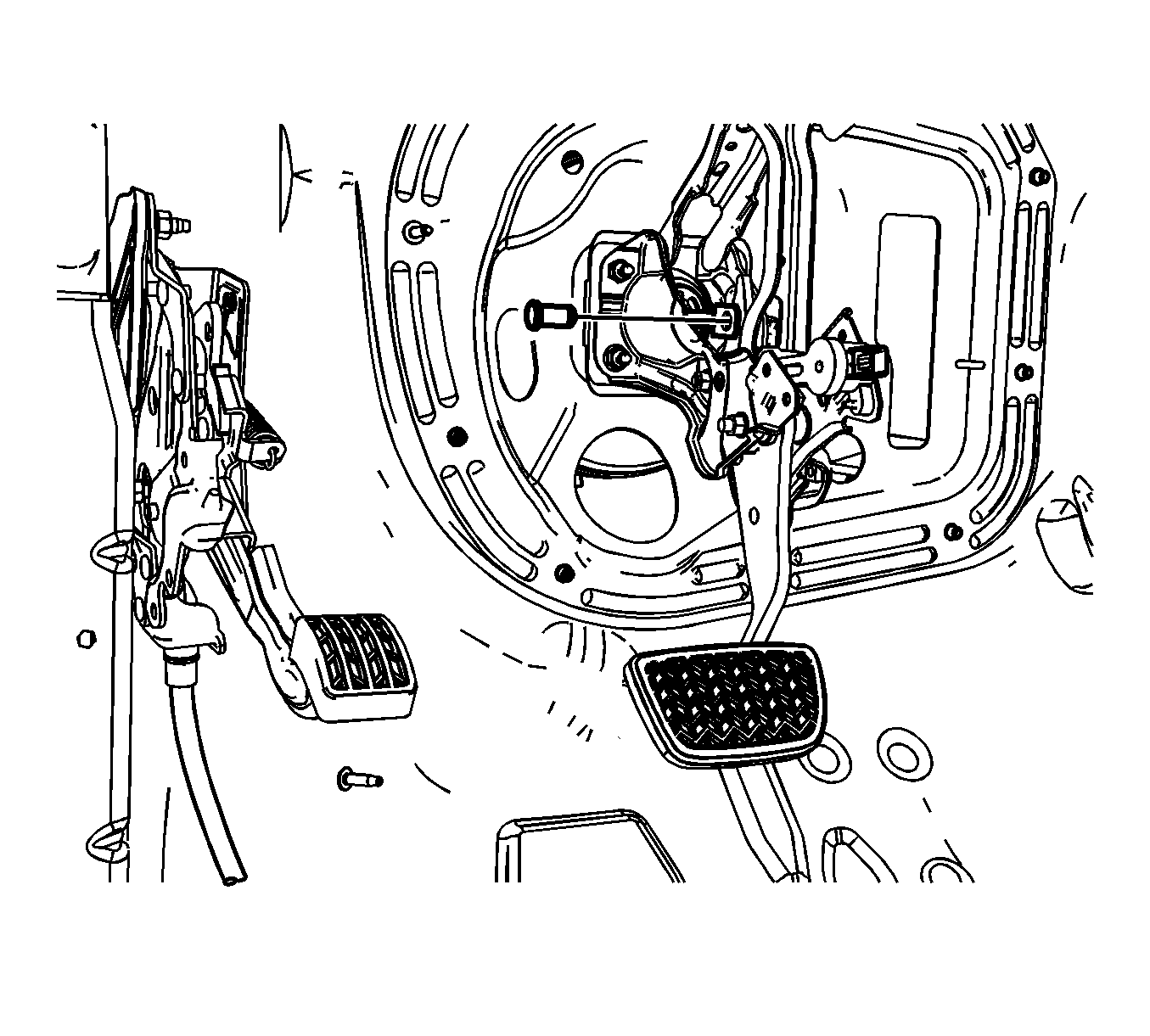

- Install the brake pedal pushrod clevis pin.
- Install the brake pedal pushrod retainer (1).
- Install the intermediate steering shaft. Refer to Intermediate Steering Shaft Replacement .

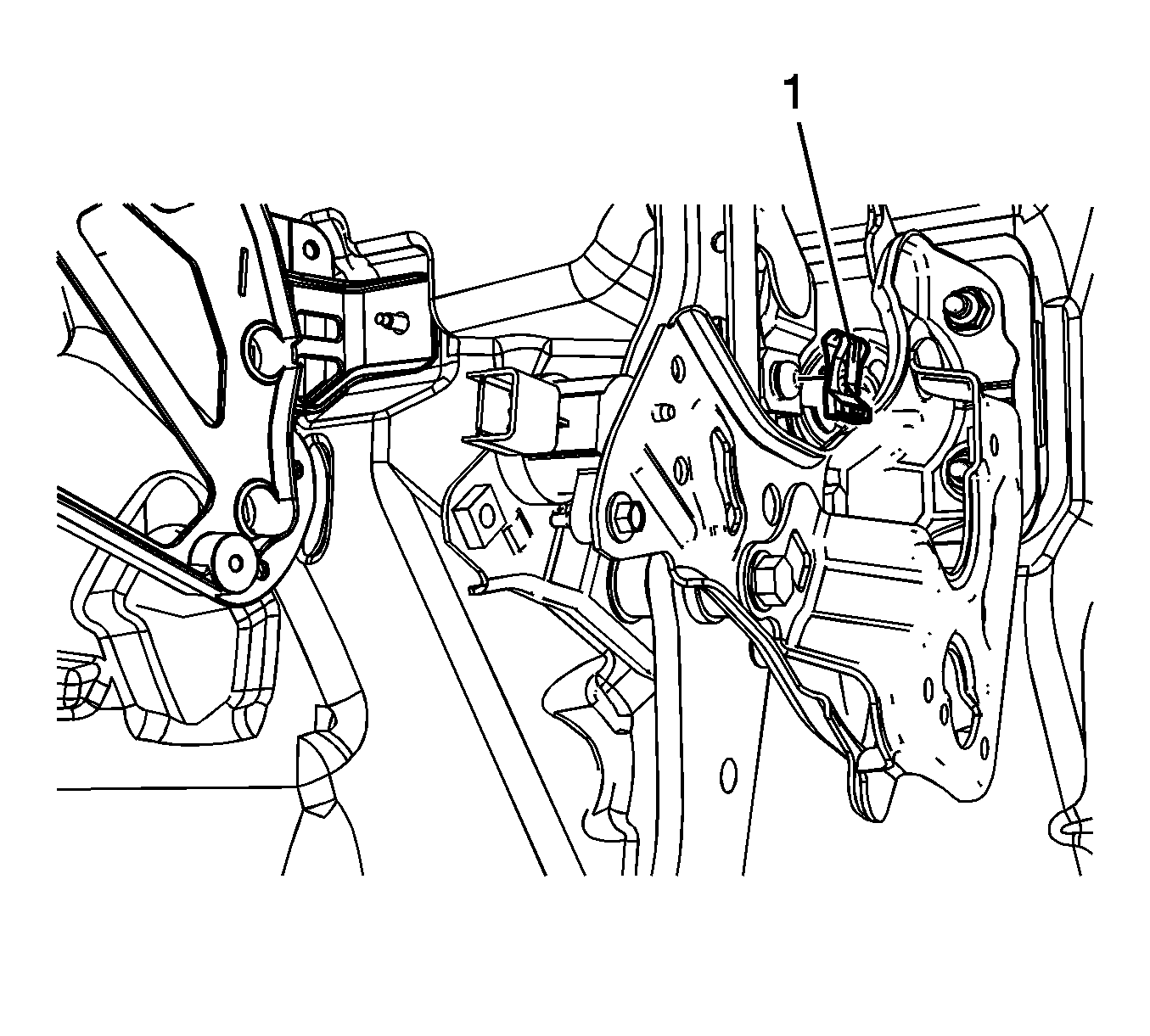

- Connect the brake pedal position sensor electrical connector (1).

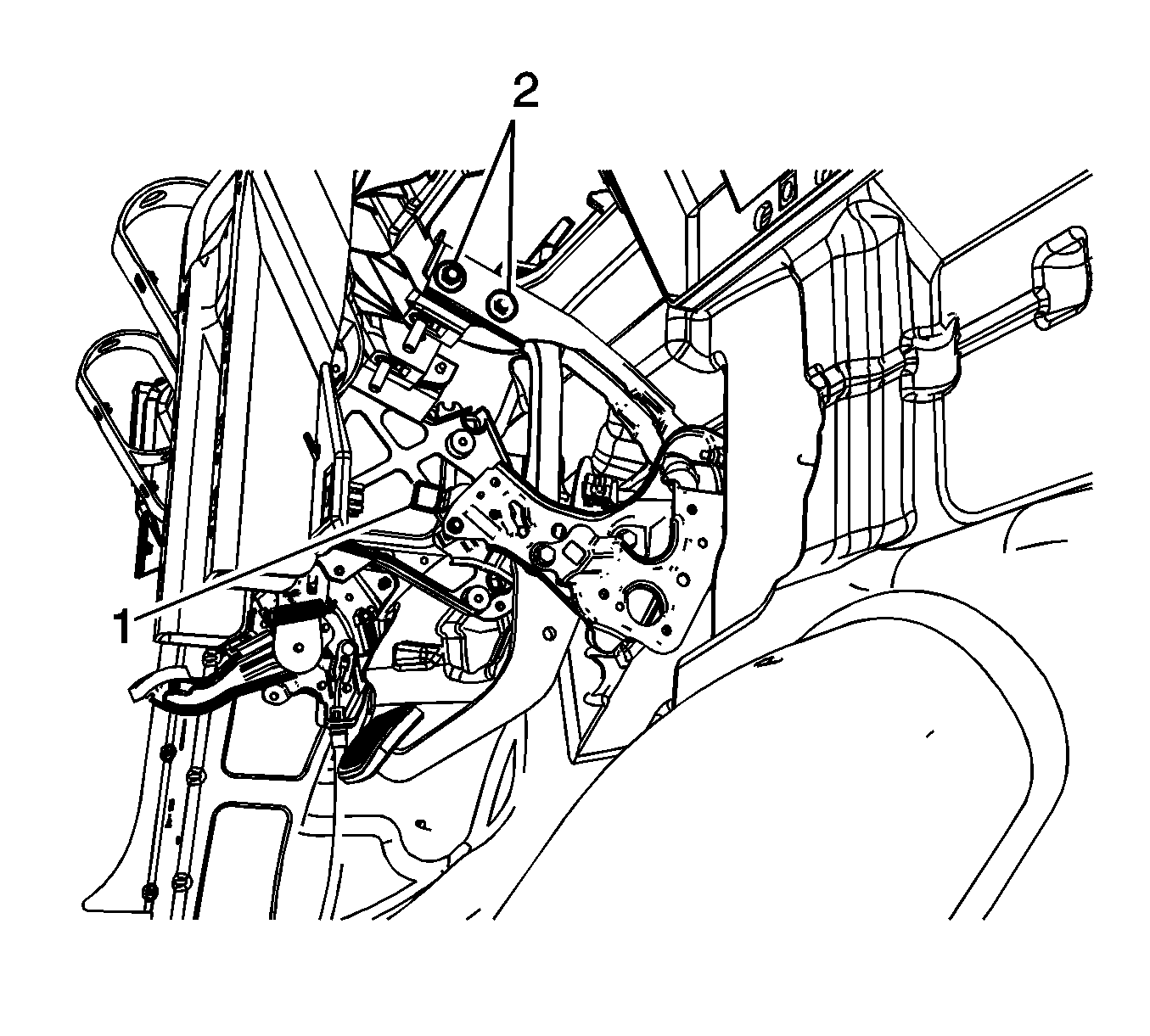

- Install the 2 brake pedal bracket bolts (2).
Tighten
Tighten the bolts to 22 N.m (16 lb ft).
- Install the accelerator pedal position sensor. Refer to Accelerator Pedal Position Sensor Replacement .
- Install the driver knee bolster. Refer to Driver Knee Bolster Replacement (Acadia)Driver Knee Bolster Replacement (Enclave)Driver Knee Bolster Replacement (Traverse) .
- Install the left side I/P insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side .
- Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
CAUTION:
Refer to Fastener Caution .
