Drive Belt Idler Pulley Replacement

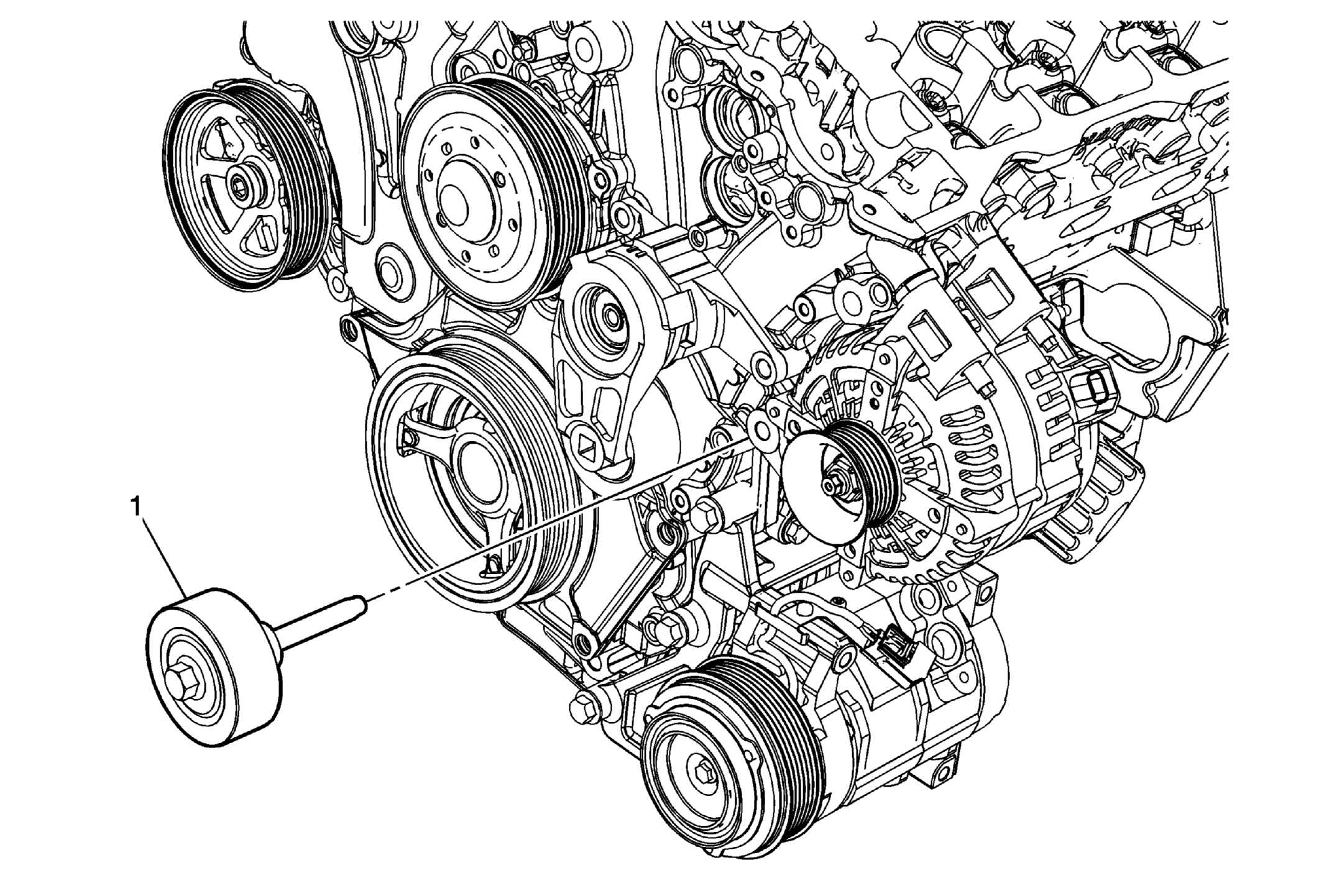

Fig 1: Identifying Drive Belt Idler Pulley
GM1860280Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the right engine strut mount. Refer to Engine Mount Strut Replacement - Right Side .
  2. Remove the right engine mount strut bracket. Refer to Engine Mount Strut Bracket Replacement - Right Side .
  3. Remove the generator. Refer to Generator Replacement .
1 Idler Pulley Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
50 N.m (37 lb ft)
