Heater Inlet And Outlet Pipe Replacement (LLT)

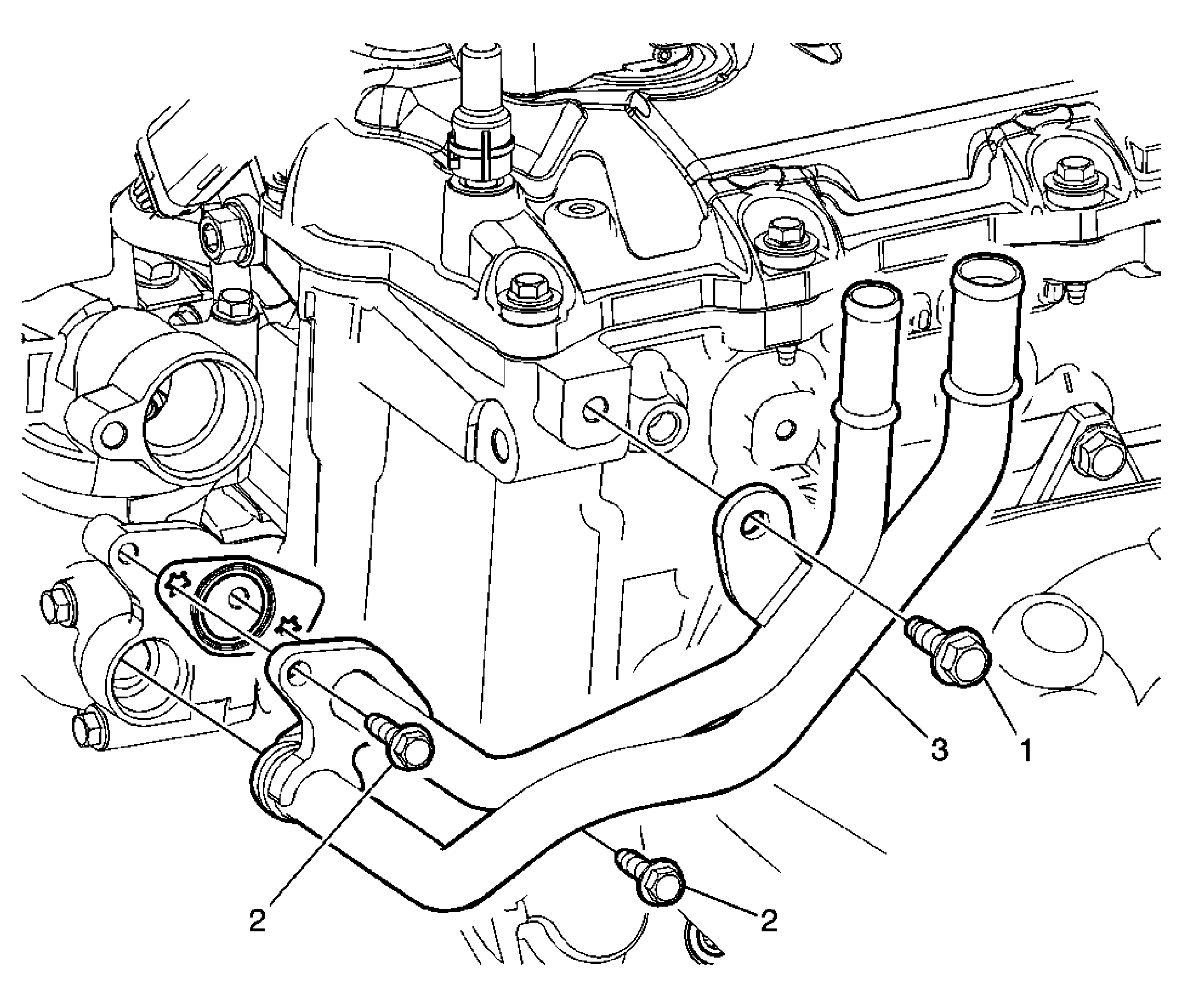

Fig 1: Heater Inlet & Outlet Pipe (LLT)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Partially drain the cooling system. Refer to Cooling System Draining and Filling (LLT Static Fill) or Cooling System Draining and Filling (GE 47716) . Remove the rear intake manifold cover.Refer to Intake Manifold Cover Replacement - Rear Remove the radiator outlet pipe. Refer to Radiator Outlet Pipe Replacement (LLT) . Remove the fuel pipe shield. Refer to Fuel Pipe Shield Replacement . Disconnect the Heater inlet and outer hoses from the heater inlet and outlet pipe.
1	Bolt CAUTION: Refer to Fastener Caution . Tighten: 22 N.m (16 lb ft)
2	Bolt (Qty: 2) Tighten: 22 N.m (16 lb ft)
3	Heater Inlet and Outlet Pipe Procedure: Install a NEW gasket and seal.
